2 pieces of ATE original Brake Disk (24013002041) for Subaru
€127.05
(tax incl.)
€105.00 tax excl.
Part-number:
ATE 24.0130-0204.1
(240130-02041)
- Outer Diameter [mm]: 316,0
- Inner Diameter [mm]: 149,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 430204
Logistical information:
- Ean Code: 4006633342063
- Weight: 10.27kg
Specification of ATE 24.0130-0204.1 / 240130-02041 / 24013002041:
| OE Number | Reference info |
| SUBARU 26300AG001 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUBARU 26300AG000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUBARU FORESTER (SJ_) Fitting Position Front Axle | 2013-03 - | 177 | 241 | 1998 | SUV |
| SUBARU FORESTER (SJ_) Vehicle Equipment for vehicles with PCS (pre-collision system) Fitting Position Front Axle | 2013-03 - | 108 | 147 | 1998 | SUV |
| SUBARU LEGACY IV Station Wagon (BP) Fitting Position Front Axle | 2005-06 - 2009-04 | 121 | 165 | 1994 | Estate |
| SUBARU LEGACY IV Station Wagon (BP) Fitting Position Front Axle | 2003-09 - 2009-08 | 180 | 245 | 3000 | Estate |
| SUBARU LEGACY IV (BL) Fitting Position Front Axle | 2005-06 - 2009-04 | 121 | 165 | 1994 | Saloon |
| SUBARU LEGACY IV (BL) Fitting Position Front Axle | 2005-08 - 2012-03 | 132 | 179 | 1994 | Saloon |
| SUBARU LEGACY IV (BL) Fitting Position Front Axle | 2003-09 - 2009-08 | 180 | 245 | 3000 | Saloon |
| SUBARU LEGACY V Station Wagon (BR) Fitting Position Front Axle | 2010-07 - 2014-12 | 195 | 265 | 2457 | Estate |
| SUBARU LEGACY V (BM) Fitting Position Front Axle | 2010-07 - 2014-12 | 195 | 265 | 2457 | Saloon |
| SUBARU OUTBACK (BR) Fitting Position Front Axle | 2013-01 - | 127 | 173 | 2498 | Estate |
| SUBARU OUTBACK (BR) Fitting Position Front Axle | 2013-01 - 2014-12 | 127 | 173 | 2498 | Estate |
| SUBARU OUTBACK (BR) Fitting Position Front Axle | 2014-06 - 2014-12 | 127 | 173 | 2498 | Estate |
| SUBARU OUTBACK (BR) Fitting Position Front Axle | 2009-09 - | 191 | 260 | 3630 | Estate |
| SUBARU OUTBACK (BR) Fitting Position Front Axle Transmission Type CVT automatic transmission (stepless) | 2009-09 - | 110 | 150 | 1998 | Estate |

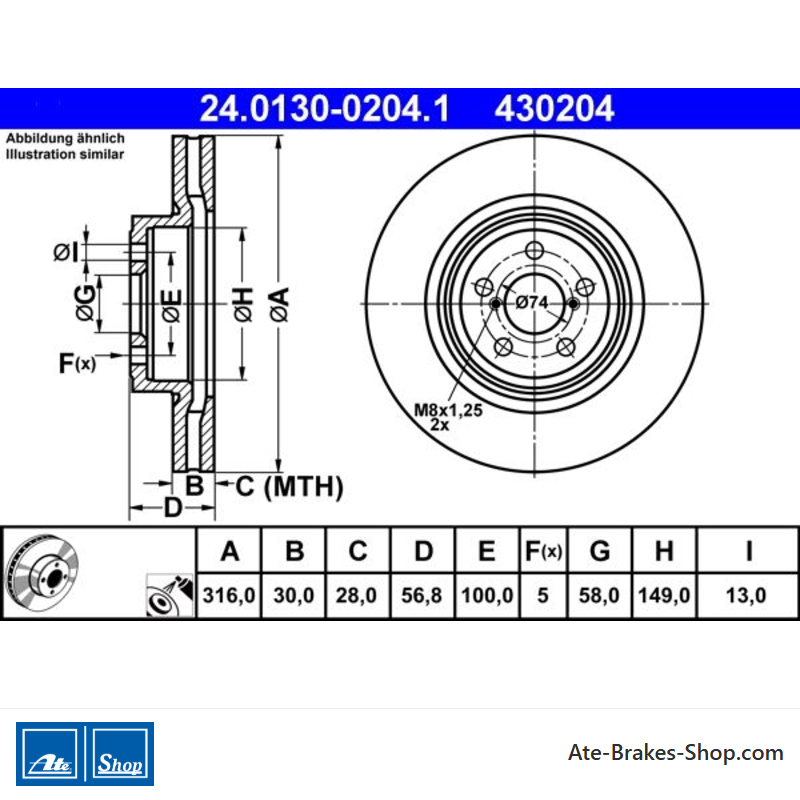

24.0130-0204.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Subaru
- Trade Number
- 430204
- Country Of Origin
- Czechia
- Height
- 56,8
- Outer Diameter [mm]
- 316,0
- Brake Disc Thickness [mm]
- 30,0
- Brake Disc Type
- Vented
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 58,0
- Inner Diameter [mm]
- 149,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 28,0
Specific References
- EAN13
- 4006633342063
- MPN
- 2401300204102
