2 pieces of ATE original Brake Disk (24013002361) for Audi
€308.55
(tax incl.)
€255.00 tax excl.
Part-number:
ATE 24.0130-0236.1
(240130-02361)
- Outer Diameter [mm]: 345,0
- Inner Diameter [mm]: 154,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 430236
Logistical information:
- Ean Code: 4006633405843
- Weight: 11.68kg

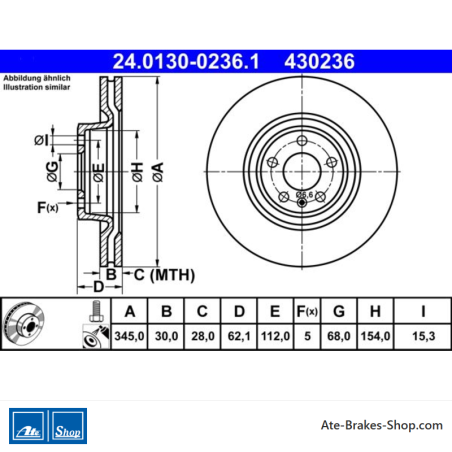

Specification of ATE 24.0130-0236.1 / 240130-02361 / 24013002361:
| OE Number | Reference info |
| VAG 4G0 615 301 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4G0615301B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4G0 615 301 N | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4G0615301N | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4G0 615 301 AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 4G0615301AB | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI A6 Allroad C7 (4GH, 4GJ) for PR number 1LJ Fitting Position Front Axle | 2012-01 - 2014-12 | 228 | 310 | 2995 | Estate |
| AUDI A6 Allroad C7 (4GH, 4GJ) for PR number 1LJ Fitting Position Front Axle | 2014-09 - 2018-09 | 245 | 333 | 2995 | Estate |
| AUDI A6 Allroad C7 (4GH, 4GJ) for PR number 1LJ Fitting Position Front Axle | 2015-11 - 2018-09 | 140 | 190 | 2967 | Estate |
| AUDI A6 Allroad C7 (4GH, 4GJ) for PR number 1LJ Fitting Position Front Axle | 2012-01 - 2014-12 | 150 | 204 | 2967 | Estate |
| AUDI A6 Allroad C7 (4GH, 4GJ) for PR number 1LJ Fitting Position Front Axle | 2014-09 - 2018-09 | 155 | 211 | 2967 | Estate |
| AUDI A6 Allroad C7 (4GH, 4GJ) for PR number 1LJ Fitting Position Front Axle | 2014-09 - 2018-09 | 160 | 218 | 2967 | Estate |
| AUDI A6 Allroad C7 (4GH, 4GJ) for PR number 1LJ Fitting Position Front Axle | 2012-01 - 2016-06 | 180 | 245 | 2967 | Estate |
| AUDI A6 Allroad C7 (4GH, 4GJ) for PR number 1LJ Fitting Position Front Axle | 2014-09 - 2018-09 | 200 | 272 | 2967 | Estate |
| AUDI A6 Allroad C7 (4GH, 4GJ) for PR number 1LJ Fitting Position Front Axle | 2012-01 - 2014-12 | 230 | 313 | 2967 | Estate |
| AUDI A6 Allroad C7 (4GH, 4GJ) for PR number 1LJ Fitting Position Front Axle | 2012-01 - 2018-09 | 235 | 320 | 2967 | Estate |
24.0130-0236.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Audi
- Trade Number
- 430236
- Country Of Origin
- Germany
- Additional Info
- with bolts/screws
- Height
- 62,1
- Outer Diameter [mm]
- 345,0
- Brake Disc Thickness [mm]
- 30,0
- Brake Disc Type
- Vented
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 112,0
- Centering Diameter [mm]
- 68,0
- Inner Diameter [mm]
- 154,0
- Bore Diameter [mm]
- 15,3
- Minimum Thickness [mm]
- 28,0
Specific References
- EAN13
- 4006633405843
- MPN
- 2401300236102
ATE 24.0130-0236.1
(240130-02361)
- Outer Diameter [mm]: 345,0
- Inner Diameter [mm]: 154,0
- Brake Disc Thickness [mm]: 30,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 430236
