ATE Original Brake Disk (24013201652) for Audi, Volkswagen (VW)
search
  • ATE Original Brake Disk (24013201652) for Audi, Volkswagen (VW)
  • ATE Original Brake Disk (24013201652) for Audi, Volkswagen (VW)
  • ATE Original Brake Disk (24013201652) for Audi, Volkswagen (VW)

2 pieces of ATE original Brake Disk (24013201652) for Audi, Volkswagen (VW)

€631.62 (tax incl.)

€522.00 tax excl.

Part-number:

ATE 24.0132-0165.2
(240132-01652)

  • Outer Diameter [mm]: 334,0
  • Inner Diameter [mm]: 146,0
  • Brake Disc Thickness [mm]: 32,0
  • Number of Bolt Holes: 5
  • 2 pieces of Brake Disc
  • Trade Number: 432165
Logistical information:
65,0Click here for detailed information.
  • Ean Code: 4006633309141
  • Weight: 10.85kg
Quantity

Specification of ATE 24.0132-0165.2 / 240132-01652 / 24013201652:

OE NumberReference info
VAG 1J0 615 302 APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 1J0615302APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 8N0 615 302 BPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 8N0615302BPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
AUDI TT (8N3)

Fitting Position Front Axle Right		2003-07 - 2006-061842503189Coupe
AUDI TT Roadster (8N9)

Fitting Position Front Axle Right		2003-07 - 2006-061842503189Convertible
VW GOLF IV (1J1)

Construction Year to 200310

for PR number 1ZT

Fitting Position Front Axle Right		2002-09 - 2005-061772413189Hatchback
24.0132-0165.2

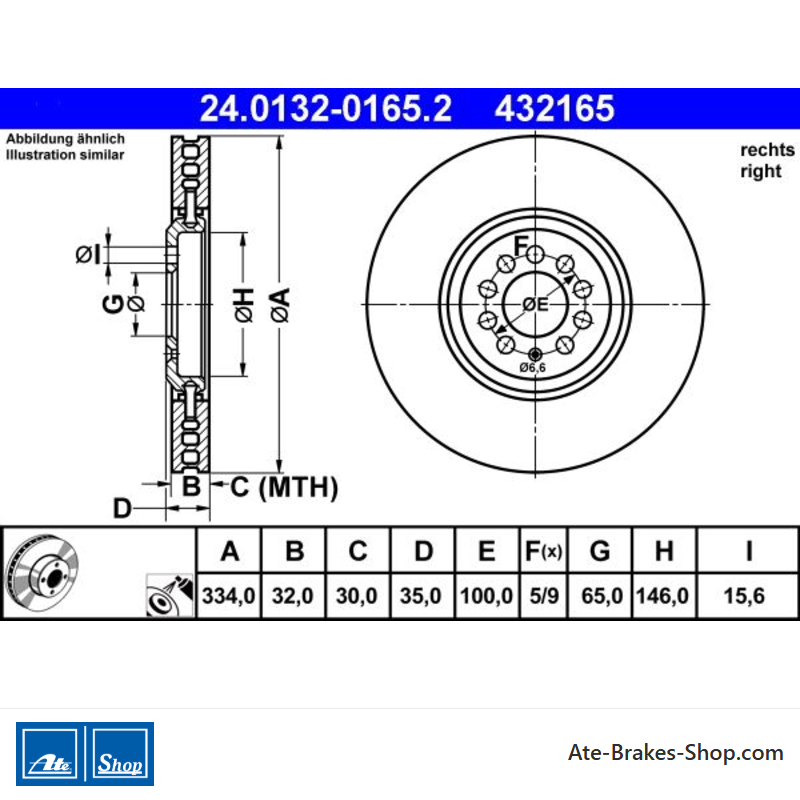

Data sheet

Article Status
Orderable
Car Brand
Audi
Volkswagen (VW)
Trade Number
432165
Country Of Origin
Germany
Height
35,0
Outer Diameter [mm]
334,0
Brake Disc Thickness [mm]
32,0
Brake Disc Type
Vented
two-piece brake disc
Processing
High-carbon
Surface
Coated
Number of Bolt Holes
5
Bolt Hole Diameter [mm]
100,0
Centering Diameter [mm]
65,0
Inner Diameter [mm]
146,0
Bore Diameter [mm]
15,6
Minimum Thickness [mm]
30,0

Specific References

EAN13
4006633309141
MPN
2401320165202
