ATE Original Brake Disk (24013201662) for Audi, Volkswagen (VW)
search
  • ATE Original Brake Disk (24013201662) for Audi, Volkswagen (VW)
  • ATE Original Brake Disk (24013201662) for Audi, Volkswagen (VW)
  • ATE Original Brake Disk (24013201662) for Audi, Volkswagen (VW)

2 pieces of ATE original Brake Disk (24013201662) for Audi, Volkswagen (VW)

€631.62 (tax incl.)

€522.00 tax excl.

Part-number:

ATE 24.0132-0166.2
(240132-01662)

  • Outer Diameter [mm]: 334,0
  • Inner Diameter [mm]: 146,0
  • Brake Disc Thickness [mm]: 32,0
  • Number of Bolt Holes: 5
  • 2 pieces of Brake Disc
  • Trade Number: 432166
Logistical information:
65,0Click here for detailed information.
  • Ean Code: 4006633309158
  • Weight: 10.85kg
Quantity

Specification of ATE 24.0132-0166.2 / 240132-01662 / 24013201662:

OE NumberReference info
VAG 1J0 615 301 AAPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 1J0615301AAPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 8N0 615 301 BPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 8N0615301BPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
AUDI TT (8N3)

Fitting Position Front Axle Left		2003-07 - 2006-061842503189Coupe
AUDI TT Roadster (8N9)

Fitting Position Front Axle Left		2003-07 - 2006-061842503189Convertible
VW GOLF IV (1J1)

Construction Year to 200310

for PR number 1ZT

Fitting Position Front Axle Left		2002-09 - 2005-061772413189Hatchback

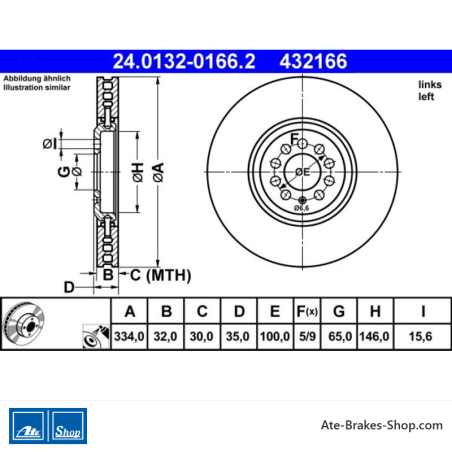

24.0132-0166.2

Data sheet

Article Status
Orderable
Car Brand
Audi
Volkswagen (VW)
Trade Number
432166
Country Of Origin
QU
Height
35,0
Outer Diameter [mm]
334,0
Brake Disc Thickness [mm]
32,0
Brake Disc Type
Vented
two-piece brake disc
Processing
High-carbon
Surface
Coated
Number of Bolt Holes
5
Bolt Hole Diameter [mm]
100,0
Centering Diameter [mm]
65,0
Inner Diameter [mm]
146,0
Bore Diameter [mm]
15,6
Minimum Thickness [mm]
30,0

Specific References

EAN13
4006633309158
MPN
2401320166202
