ATE Original 2 Pieces Brake Drum (24021800351) for Chevrolet, Daewoo
€72.60
(tax incl.)
€60.00 tax excl.
Part-number:
ATE 24.0218-0035.1
(240218-00351)
- Outer diameter [mm]: 205,5
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 69,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480146
- Ean Code: 4006633082044
- Weight: 9.23kg
Specification of ATE 24.0218-0035.1 / 240218-00351 / 24021800351:
| OE Number | Reference info |
| CHEVROLET 96316636 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96316636 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Rear Axle | 2005-03 - 2013-12 | 38 | 52 | 796 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Rear Axle | 2005-03 - 2007-12 | 38 | 52 | 796 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Rear Axle | 2005-03 - 2007-12 | 47 | 64 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Rear Axle | 2007-01 - | 48 | 65 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Rear Axle | 2005-03 - | 49 | 67 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Rear Axle | 2005-03 - 2011-03 | 49 | 67 | 995 | Hatchback |
| DAEWOO MATIZ (M100, M150) Construction Year to 200502 Fitting Position Rear Axle | 1998-09 - | 38 | 52 | 796 | Hatchback |
| DAEWOO MATIZ (M100, M150) Construction Year to 200502 Fitting Position Rear Axle | 2003-01 - | 47 | 64 | 995 | Hatchback |

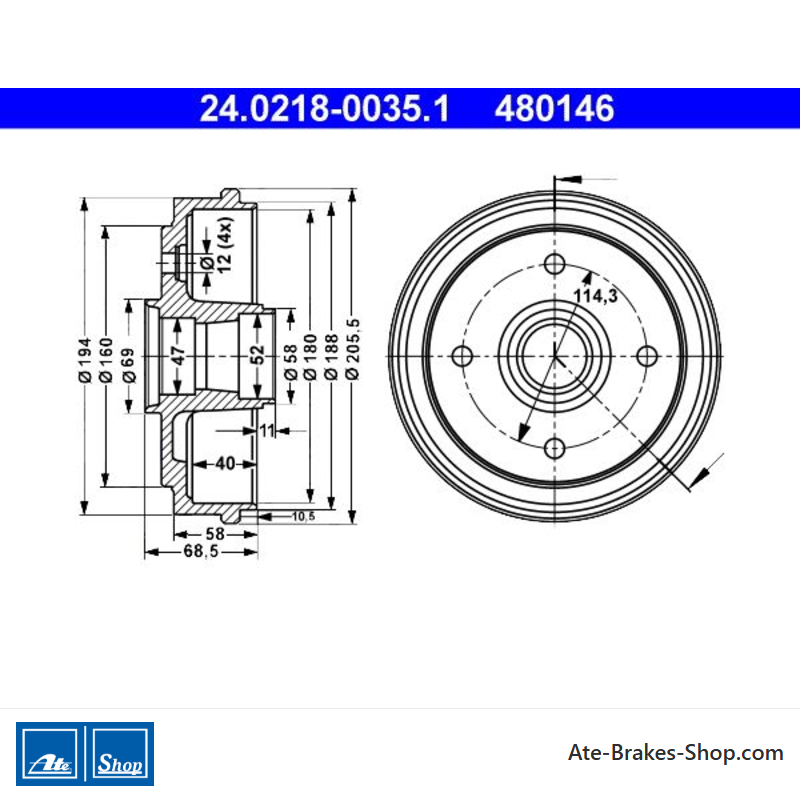

24.0218-0035.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Chevrolet
Daewoo - Trade Number
- 480146
- Country Of Origin
- China
- Additional Info
- without ABS sensor ring
without wheel bearing - Height
- 79,5
- Outer Diameter [mm]
- 205,5
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 114,3
- Support Plate Diameter [mm]
- 69,0
- Inner Diameter [mm]
- 180,0
- Bore Diameter [mm]
- 12,0
- Max. Reboring Dimension [mm]
- 182,0
- Brake Drum Inner Height [mm]
- 40,0
Specific References
- EAN13
- 4006633082044
- MPN
- 2402180035102
ATE 24.0218-0035.1
(240218-00351)
- Outer diameter [mm]: 205,5
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 69,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480146
