ATE Originele 2-delige remtrommel (24021800351) voor Chevrolet, Daewoo
€ 72,60
(incl. btw)
€ 60,00 belastingexcl.
Onderdeelnummer:
ATE 24.0218-0035.1
(240218-00351)

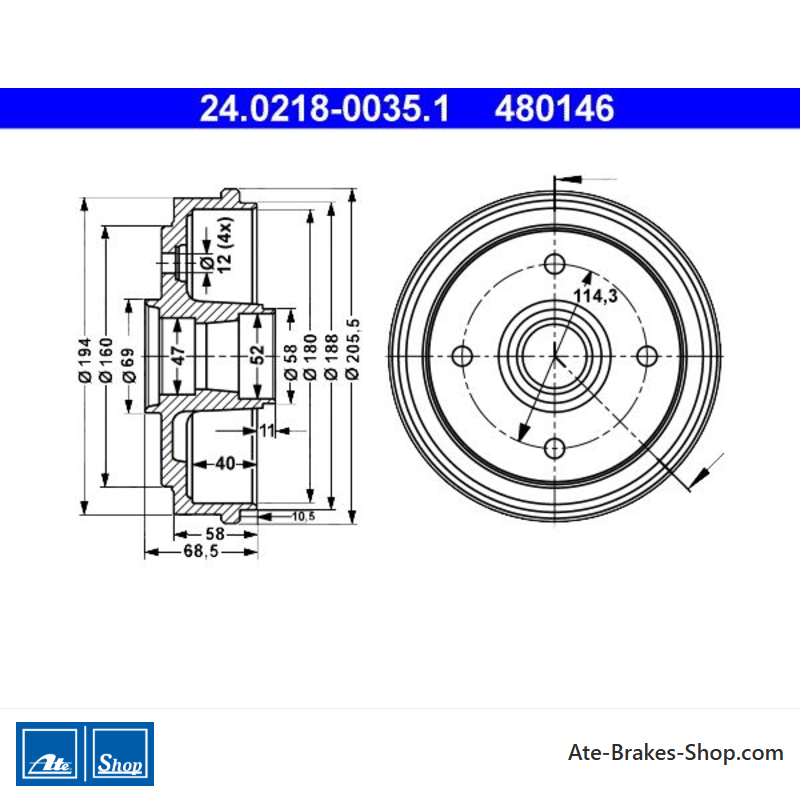

- Buitendiameter [mm]: 205,5
- Binnendiameter [mm]: 180,0
- Draagplaat diameter [mm]: 69,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480146
- Ean Code: 4006633082044
- Gewicht: 9.23kg
Specification of ATE 24.0218-0035.1 / 240218-00351 / 24021800351:
| OE Number | Reference info |
| CHEVROLET 96316636 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96316636 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Rear Axle | 2005-03 - 2013-12 | 38 | 52 | 796 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Rear Axle | 2005-03 - 2007-12 | 38 | 52 | 796 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Rear Axle | 2005-03 - 2007-12 | 47 | 64 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Rear Axle | 2007-01 - | 48 | 65 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Construction Year to 201012 Fitting Position Rear Axle | 2005-03 - | 49 | 67 | 995 | Hatchback |
| CHEVROLET MATIZ (M200, M250) Fitting Position Rear Axle | 2005-03 - 2011-03 | 49 | 67 | 995 | Hatchback |
| DAEWOO MATIZ (M100, M150) Construction Year to 200502 Fitting Position Rear Axle | 1998-09 - | 38 | 52 | 796 | Hatchback |
| DAEWOO MATIZ (M100, M150) Construction Year to 200502 Fitting Position Rear Axle | 2003-01 - | 47 | 64 | 995 | Hatchback |
24.0218-0035.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Chevrolet
Daewoo - Handelsnummer
- 480146
- Land van Herkomst
- China
- Aanvullende informatie
- zonder ABS-sensorring
zonder wiellager - Hoogte
- 79,5
- Buitendiameter [mm]
- 205,5
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 114,3
- Diameter van de ondersteuningsplaat [mm]
- 69,0
- Binnendiameter [mm]
- 180,0
- Bordiameter [mm]
- 12,0
- Max. Afborende Dimensie [mm]
- 182,0
- Binnenhoogte van de remtrommel [mm]
- 40,0
Specifieke referenties
- ean13
- 4006633082044
- MPN
- 2402180035102
