ATE Original 2 Pieces Brake Drum (24021800361) for Volkswagen (VW)
€79.86
(tax incl.)
€66.00 tax excl.
Part-number:
ATE 24.0218-0036.1
(240218-00361)
- Outer diameter [mm]: 211,5
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 65,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480147
- Ean Code: 4006633082068
- Weight: 6.22kg
Specification of ATE 24.0218-0036.1 / 240218-00361 / 24021800361:
| OE Number | Reference info |
| VAG 6X0 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6X0609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW LUPO I (6X1, 6E1) Vehicle Identification Number (VIN) to 6X-X-003000 Fitting Position Rear Axle | 1998-10 - 2000-05 | 37 | 50 | 997 | Hatchback |
| VW LUPO I (6X1, 6E1) Vehicle Identification Number (VIN) to 6X-X-003000 Fitting Position Rear Axle | 1998-09 - 2005-07 | 37 | 50 | 999 | Hatchback |
| VW LUPO I (6X1, 6E1) Construction Year from 199810 Vehicle Identification Number (VIN) to 6X-X-003000 Fitting Position Rear Axle | 1998-09 - 2005-07 | 55 | 75 | 1390 | Hatchback |
| VW LUPO I (6X1, 6E1) Vehicle Identification Number (VIN) to 6X-X-003000 Fitting Position Rear Axle | 1999-01 - 2005-07 | 55 | 75 | 1422 | Hatchback |
| VW LUPO I (6X1, 6E1) Vehicle Identification Number (VIN) to 6X-X-003000 Fitting Position Rear Axle | 1998-09 - 2005-07 | 44 | 60 | 1716 | Hatchback |

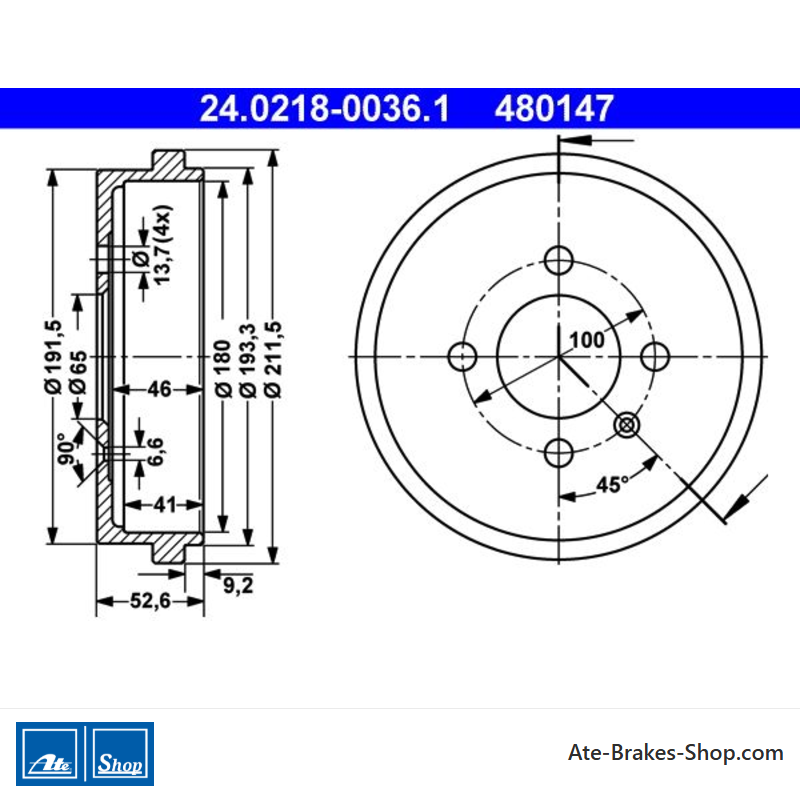

24.0218-0036.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Volkswagen (VW)
- Trade Number
- 480147
- Country Of Origin
- China
- Height
- 52,6
- Outer Diameter [mm]
- 211,5
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Support Plate Diameter [mm]
- 65,0
- Inner Diameter [mm]
- 180,0
- Bore Diameter [mm]
- 13,7
- Max. Reboring Dimension [mm]
- 181,5
- Brake Drum Inner Height [mm]
- 41,0
Specific References
- EAN13
- 4006633082068
- MPN
- 2402180036102
ATE 24.0218-0036.1
(240218-00361)
- Outer diameter [mm]: 211,5
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 65,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480147
