ATE Originele 2-delige remtrommel (24021800361) voor Volkswagen (VW)
€ 79,86
(incl. btw)
€ 66,00 belastingexcl.
Onderdeelnummer:
ATE 24.0218-0036.1
(240218-00361)
- Buitendiameter [mm]: 211,5
- Binnendiameter [mm]: 180,0
- Draagplaatdiameter [mm]: 65,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480147
- Ean Code: 4006633082068
- Gewicht: 6.22kg
Specification of ATE 24.0218-0036.1 / 240218-00361 / 24021800361:
| OE Number | Reference info |
| VAG 6X0 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6X0609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW LUPO I (6X1, 6E1) Vehicle Identification Number (VIN) to 6X-X-003000 Fitting Position Rear Axle | 1998-10 - 2000-05 | 37 | 50 | 997 | Hatchback |
| VW LUPO I (6X1, 6E1) Vehicle Identification Number (VIN) to 6X-X-003000 Fitting Position Rear Axle | 1998-09 - 2005-07 | 37 | 50 | 999 | Hatchback |
| VW LUPO I (6X1, 6E1) Construction Year from 199810 Vehicle Identification Number (VIN) to 6X-X-003000 Fitting Position Rear Axle | 1998-09 - 2005-07 | 55 | 75 | 1390 | Hatchback |
| VW LUPO I (6X1, 6E1) Vehicle Identification Number (VIN) to 6X-X-003000 Fitting Position Rear Axle | 1999-01 - 2005-07 | 55 | 75 | 1422 | Hatchback |
| VW LUPO I (6X1, 6E1) Vehicle Identification Number (VIN) to 6X-X-003000 Fitting Position Rear Axle | 1998-09 - 2005-07 | 44 | 60 | 1716 | Hatchback |

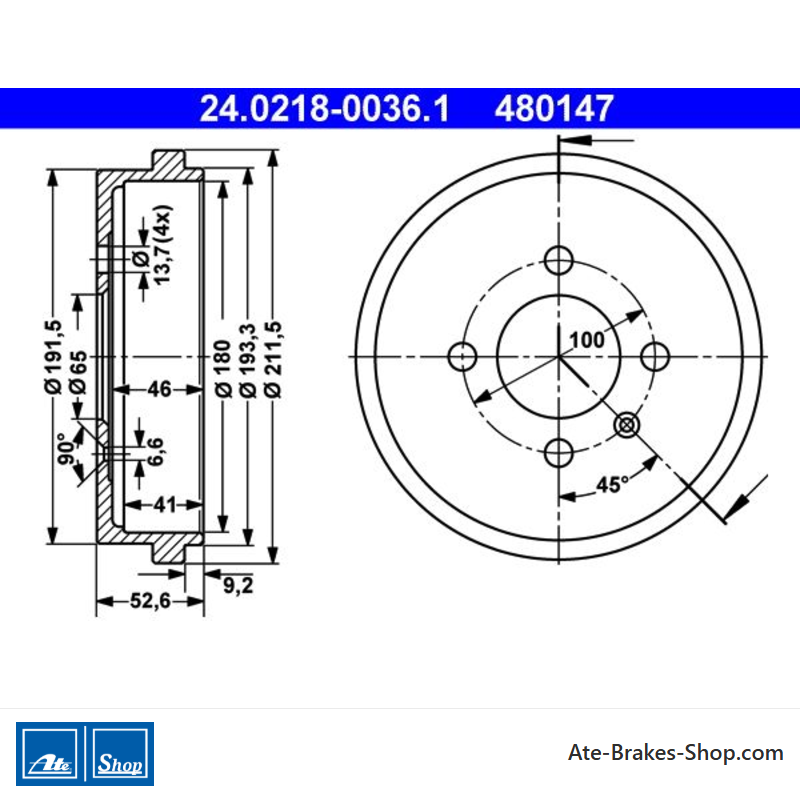

24.0218-0036.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 480147
- Land van Herkomst
- China
- Hoogte
- 52,6
- Buitendiameter [mm]
- 211,5
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 65,0
- Binnendiameter [mm]
- 180,0
- Bordiameter [mm]
- 13,7
- Max. Afborende Dimensie [mm]
- 181,5
- Binnenhoogte van de remtrommel [mm]
- 41,0
Specifieke referenties
- ean13
- 4006633082068
- MPN
- 2402180036102
ATE 24.0218-0036.1
(240218-00361)
- Buitendiameter [mm]: 211,5
- Binnendiameter [mm]: 180,0
- Draagplaatdiameter [mm]: 65,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480147
