ATE Original 2 Pieces Brake Drum (24021800521) for Daihatsu, Subaru
€94.38
(tax incl.)
€78.00 tax excl.
Part-number:
ATE 24.0218-0052.1
(240218-00521)
- Outer diameter [mm]: 220,0
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 55,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480351
- Ean Code: 4006633509756
- Weight: 6.42kg
Specification of ATE 24.0218-0052.1 / 240218-00521 / 24021800521:
| OE Number | Reference info |
| DAIHATSU 42431-B1020-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAIHATSU 42431-B1020 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUBARU 42431B1020 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431B1020 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAIHATSU CUORE VII (L275_, L285_, L276_) Construction Year from 200709 Construction Year to 201301 Braking/Driving Dynamics for vehicles with ESP Fitting Position Rear Axle |
2007-04 - | 51 | 70 | 998 | Hatchback |
| DAIHATSU MATERIA (M4_) Construction Year to 201207 Fitting Position Rear Axle |
2006-10 - | 67 | 91 | 1298 | MPV |
| DAIHATSU MATERIA (M4_) Construction Year to 201207 Fitting Position Rear Axle |
2006-10 - | 76 | 103 | 1495 | MPV |
| DAIHATSU MATERIA (M4_) Construction Year to 201207 Fitting Position Rear Axle |
2006-10 - | 76 | 103 | 1495 | MPV |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Rear Axle |
2005-01 - 2013-06 | 51 | 70 | 998 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Rear Axle |
2005-01 - | 64 | 87 | 1298 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Rear Axle |
2008-03 - | 67 | 91 | 1298 | Hatchback |
| DAIHATSU SIRION (M3_) Construction Year to 201301 Fitting Position Rear Axle |
2008-03 - | 76 | 103 | 1495 | Hatchback |
| SUBARU JUSTY IV Construction Year from 200709 Construction Year to 201105 Fitting Position Rear Axle |
2007-01 - | 51 | 69 | 998 | Hatchback |
| SUBARU JUSTY IV Construction Year to 201105 Fitting Position Rear Axle |
2007-09 - 2012-03 | 51 | 69 | 998 | Hatchback |
| SUBARU JUSTY IV Construction Year to 201105 Fitting Position Rear Axle Country Specific Design Switzerland |
2008-03 - | 67 | 91 | 1298 | Hatchback |

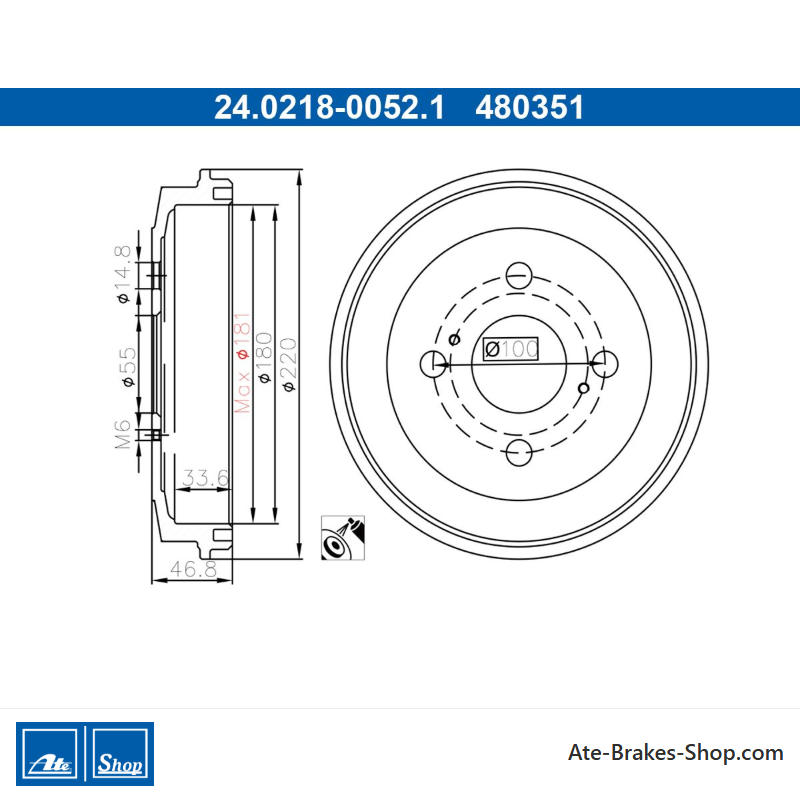

24.0218-0052.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Daihatsu
Subaru - Trade Number
- 480351
- Country Of Origin
- China
- Height
- 46,8
- Outer Diameter [mm]
- 220,0
- Surface
- painted
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Support Plate Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 180,0
- Bore Diameter [mm]
- 14,8
- Max. Reboring Dimension [mm]
- 181,0
- Brake Drum Inner Height [mm]
- 33,6
Specific References
- EAN13
- 4006633509756
- MPN
- 2402180052102
ATE 24.0218-0052.1
(240218-00521)
- Outer diameter [mm]: 220,0
- Inner diameter [mm]: 180,0
- Support plate diameter [mm]: 55,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480351
