ATE Original 2 Pieces Brake Drum (24022000471) for Toyota
€116.16
(tax incl.)
€96.00 tax excl.
Part-number:
ATE 24.0220-0047.1
(240220-00471)
- Outer diameter [mm]: 233,0
- Inner diameter [mm]: 200,0
- Support plate diameter [mm]: 55,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480199
- Ean Code: 4006633310901
- Weight: 8.00kg
Specification of ATE 24.0220-0047.1 / 240220-00471 / 24022000471:
| OE Number | Reference info |
| TOYOTA 42431-0D010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA YARIS (_P1_) Construction Year from 200304 Construction Year to 200508 Vehicle Production Country France Fitting Position Rear Axle | 2003-03 - 2005-09 | 48 | 65 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200303 Vehicle Production Country France Fitting Position Rear Axle | 1999-04 - 2005-09 | 50 | 68 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200508 Vehicle Production Country France Fitting Position Rear Axle | 2002-04 - 2005-09 | 64 | 87 | 1298 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year from 200112 Construction Year to 200508 Vehicle Production Country France Fitting Position Rear Axle | 2001-10 - 2005-09 | 55 | 75 | 1364 | Hatchback |

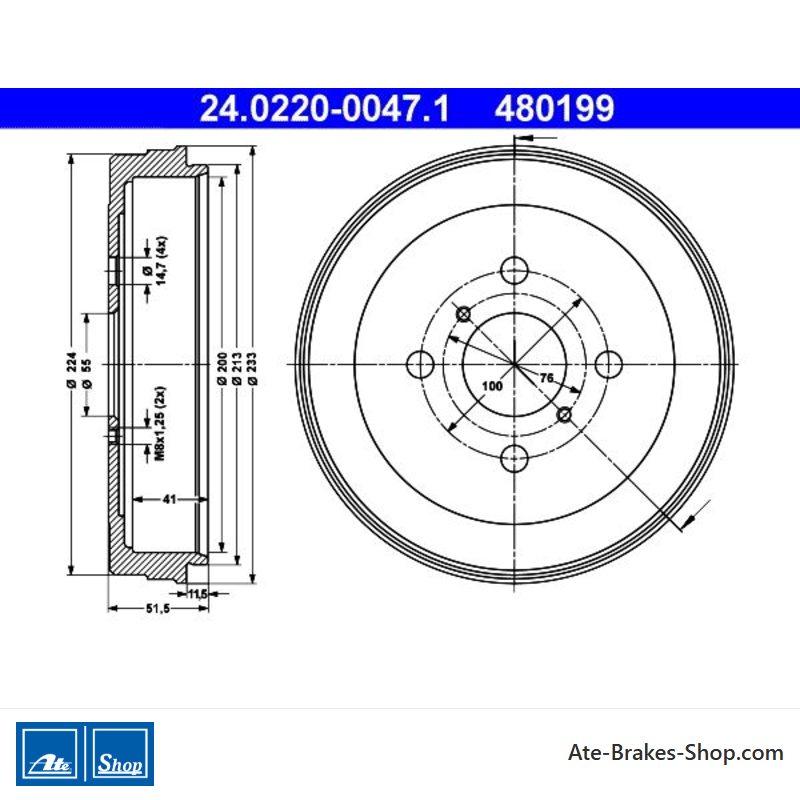

24.0220-0047.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
- Trade Number
- 480199
- Country Of Origin
- Italy
- Height
- 51,5
- Outer Diameter [mm]
- 233,0
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Support Plate Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 200,0
- Bore Diameter [mm]
- 14,7
- Max. Reboring Dimension [mm]
- 201,0
- Brake Drum Inner Height [mm]
- 41,0
Specific References
- EAN13
- 4006633310901
- MPN
- 2402200047102
ATE 24.0220-0047.1
(240220-00471)
- Outer diameter [mm]: 233,0
- Inner diameter [mm]: 200,0
- Support plate diameter [mm]: 55,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480199
