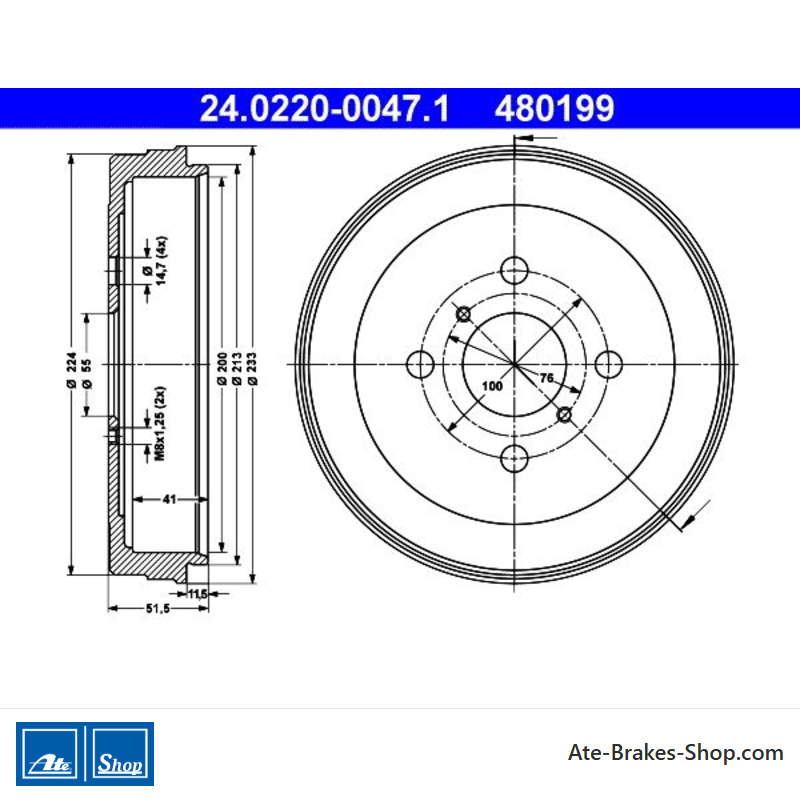

ATE Originele 2-delige remtrommel (24022000471) voor Toyota
€ 116,16
(incl. btw)
€ 96,00 belastingexcl.
Onderdeelnummer:
ATE 24.0220-0047.1
(240220-00471)
- Buitendiameter [mm]: 233,0
- Binnendiameter [mm]: 200,0
- Draagplaatdiameter [mm]: 55,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480199
- Ean Code: 4006633310901
- Gewicht: 8.00kg
Specification of ATE 24.0220-0047.1 / 240220-00471 / 24022000471:
| OE Number | Reference info |
| TOYOTA 42431-0D010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA YARIS (_P1_) Construction Year from 200304 Construction Year to 200508 Vehicle Production Country France Fitting Position Rear Axle | 2003-03 - 2005-09 | 48 | 65 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200303 Vehicle Production Country France Fitting Position Rear Axle | 1999-04 - 2005-09 | 50 | 68 | 998 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year to 200508 Vehicle Production Country France Fitting Position Rear Axle | 2002-04 - 2005-09 | 64 | 87 | 1298 | Hatchback |
| TOYOTA YARIS (_P1_) Construction Year from 200112 Construction Year to 200508 Vehicle Production Country France Fitting Position Rear Axle | 2001-10 - 2005-09 | 55 | 75 | 1364 | Hatchback |
24.0220-0047.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
- Handelsnummer
- 480199
- Land van Herkomst
- Italië
- Hoogte
- 51,5
- Buitendiameter [mm]
- 233,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 55,0
- Binnendiameter [mm]
- 200,0
- Bordiameter [mm]
- 14,7
- Max. Afborende Dimensie [mm]
- 201,0
- Binnenhoogte van de remtrommel [mm]
- 41,0
Specifieke referenties
- ean13
- 4006633310901
- MPN
- 2402200047102
ATE 24.0220-0047.1
(240220-00471)
- Buitendiameter [mm]: 233,0
- Binnendiameter [mm]: 200,0
- Draagplaatdiameter [mm]: 55,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480199
