ATE Original 2 Pieces Brake Drum (24022000511) for Mazda
€127.05
(tax incl.)
€105.00 tax excl.
Part-number:
ATE 24.0220-0051.1
(240220-00511)
- Outer diameter [mm]: 239,5
- Inner diameter [mm]: 200,0
- Support plate diameter [mm]: 55,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480326
- Ean Code: 4006633468756
- Weight: 8.14kg
Specification of ATE 24.0220-0051.1 / 240220-00511 / 24022000511:
| OE Number | Reference info |
| MAZDA DF71-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA DA7R-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2007-10 - 2015-06 | 55 | 75 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2011-05 - 2014-11 | 55 | 75 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2011-05 - 2014-11 | 62 | 84 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2010-01 - 2015-06 | 62 | 84 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2007-10 - 2015-06 | 63 | 86 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2011-06 - 2015-06 | 75 | 102 | 1498 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2007-07 - 2015-06 | 76 | 103 | 1498 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2007-10 - 2010-12 | 50 | 68 | 1399 | Hatchback |
| MAZDA 2 (DE_, DH_) Construction Year to 201412 Fitting Position Rear Axle | 2008-10 - 2015-06 | 66 | 90 | 1560 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2011-06 - 2015-06 | 70 | 95 | 1560 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Construction Year from 201411 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Rear Axle | 2014-08 - | 55 | 75 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Fitting Position Rear Axle | 2019-08 - | 55 | 75 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Construction Year from 201411 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Rear Axle | 2014-08 - | 66 | 90 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Construction Year from 201411 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Rear Axle | 2014-08 - | 85 | 115 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Fitting Position Rear Axle | 2021-10 - | 85 | 116 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Construction Year from 201411 Fitting Position Rear Axle | 2014-08 - | 77 | 105 | 1499 | Hatchback |
24.0220-0051.1

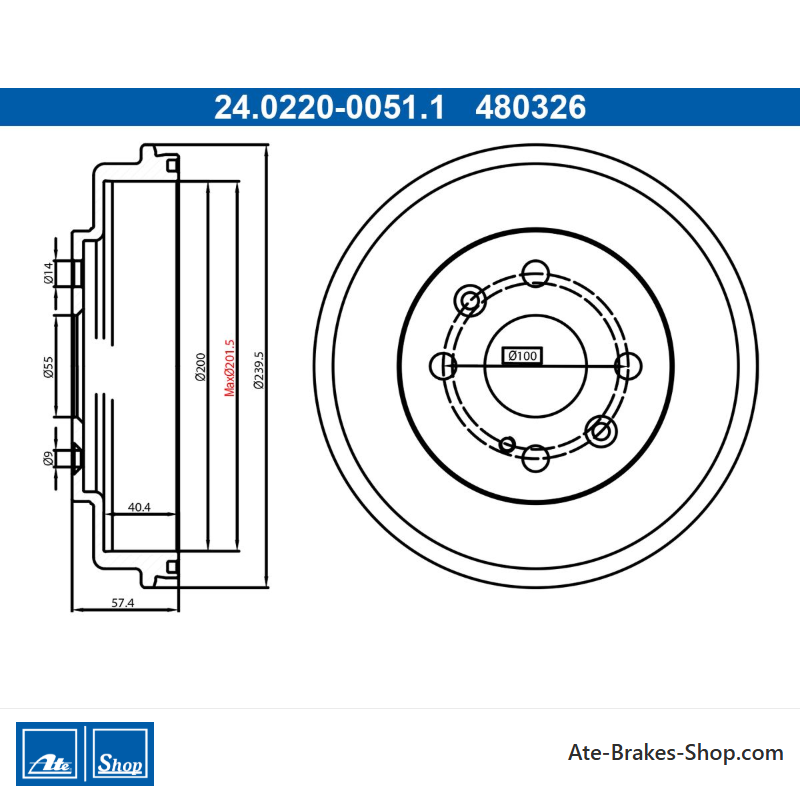

Data sheet
- Article Status
- Orderable
- Car Brand
- Mazda
- Trade Number
- 480326
- Country Of Origin
- China
- Height
- 57,4
- Outer Diameter [mm]
- 239,5
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Support Plate Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 200,0
- Bore Diameter [mm]
- 14,0
- Max. Reboring Dimension [mm]
- 201,5
- Brake Drum Inner Height [mm]
- 40,4
Specific References
- EAN13
- 4006633468756
- MPN
- 2402200051102
ATE 24.0220-0051.1
(240220-00511)
- Outer diameter [mm]: 239,5
- Inner diameter [mm]: 200,0
- Support plate diameter [mm]: 55,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480326
