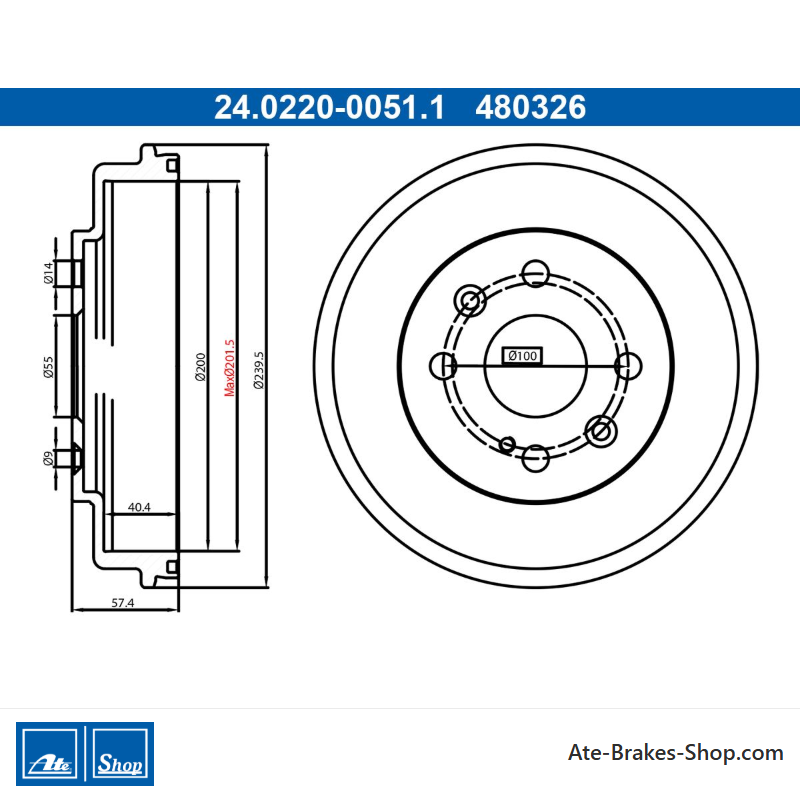

ATE Tambor de freno original de 2 piezas (24022000511) para Mazda
127,05 €
(impuestos inc.)
105,00 € fiscales excl.
Número de parte:
ATE 24.0220-0051.1
(240220-00511)
- Diámetro exterior [mm]: 239,5
- Diámetro interior [mm]: 200,0
- Diámetro de la placa de soporte [mm]: 55,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480326
- Código Ean: 4006633468756
- Peso: 8.14kg
Specification of ATE 24.0220-0051.1 / 240220-00511 / 24022000511:
| OE Number | Reference info |
| MAZDA DF71-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA DA7R-26-251 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2007-10 - 2015-06 | 55 | 75 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2011-05 - 2014-11 | 55 | 75 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2011-05 - 2014-11 | 62 | 84 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2010-01 - 2015-06 | 62 | 84 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2007-10 - 2015-06 | 63 | 86 | 1349 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2011-06 - 2015-06 | 75 | 102 | 1498 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2007-07 - 2015-06 | 76 | 103 | 1498 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2007-10 - 2010-12 | 50 | 68 | 1399 | Hatchback |
| MAZDA 2 (DE_, DH_) Construction Year to 201412 Fitting Position Rear Axle | 2008-10 - 2015-06 | 66 | 90 | 1560 | Hatchback |
| MAZDA 2 (DE_, DH_) Fitting Position Rear Axle | 2011-06 - 2015-06 | 70 | 95 | 1560 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Construction Year from 201411 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Rear Axle | 2014-08 - | 55 | 75 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Fitting Position Rear Axle | 2019-08 - | 55 | 75 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Construction Year from 201411 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Rear Axle | 2014-08 - | 66 | 90 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Construction Year from 201411 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Rear Axle | 2014-08 - | 85 | 115 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Fitting Position Rear Axle | 2021-10 - | 85 | 116 | 1496 | Hatchback |
| MAZDA 2 Hatchback (DL, DJ) Construction Year from 201411 Fitting Position Rear Axle | 2014-08 - | 77 | 105 | 1499 | Hatchback |
24.0220-0051.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Mazda
- Número de Comercio
- 480326
- País de origen
- China
- Altura
- 57,4
- Diámetro exterior [mm]
- 239,5
- Número de agujeros para los tornillos
- 4
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de la placa de soporte [mm]
- 55,0
- Diámetro interior [mm]
- 200,0
- Diámetro del diámetro del diámetro [mm]
- 14,0
- Max. Dimensión de perforación [mm]
- 201,5
- Altura interior del tambor de freno [mm]
- 40,4
Referencias específicas
- ean13
- 4006633468756
- MPN
- 2402200051102
ATE 24.0220-0051.1
(240220-00511)
- Diámetro exterior [mm]: 239,5
- Diámetro interior [mm]: 200,0
- Diámetro de la placa de soporte [mm]: 55,0
- Número de agujeros de perno: 4
- 2 piezas de tambor de freno
- Número de intercambio: 480326
