ATE Original 2 Pieces Brake Drum (24022000521) for Suzuki
search
  • ATE Original 2 Pieces Brake Drum (24022000521) for Suzuki
  • ATE Original 2 Pieces Brake Drum (24022000521) for Suzuki

ATE Original 2 Pieces Brake Drum (24022000521) for Suzuki

€105.27 (tax incl.)

€87.00 tax excl.

Part-number:

ATE 24.0220-0052.1
(240220-00521)

  • Outer diameter [mm]: 242,0
  • Inner diameter [mm]: 200,0
  • Support plate diameter [mm]: 62,0
  • Number of Bolt Holes: 4
  • 2 Pieces of Brake Drum
  • Trade Number: 480338
  • Ean Code: 4006633507318
  • Weight: 8.27kg
Quantity

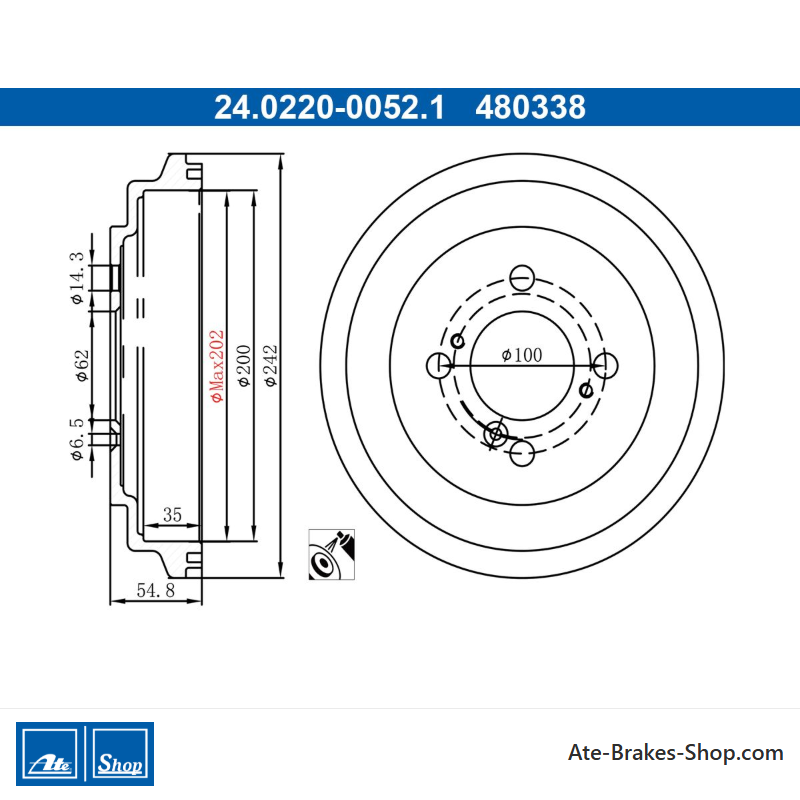

Specification of ATE 24.0220-0052.1 / 240220-00521 / 24022000521:

OE NumberReference info
SUZUKI 43511-68L00Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
SUZUKI 43511-71L00Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2010-10 - 2017-0466901242Hatchback
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2010-10 - 2017-0466901242Hatchback
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2010-10 - 2017-0469941242Hatchback
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2010-10 - 2017-0469941242Hatchback
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2010-10 - 2017-0455751248Hatchback
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2012-01 - 2017-041001361586Hatchback
24.0220-0052.1

Data sheet

Article Status
Orderable
Car Brand
Suzuki
Trade Number
480338
Country Of Origin
China
Height
54,8
Outer Diameter [mm]
242,0
Surface
painted
Number of Bolt Holes
4
Bolt Hole Diameter [mm]
100,0
Support Plate Diameter [mm]
62,0
Inner Diameter [mm]
200,0
Bore Diameter [mm]
14,3
Max. Reboring Dimension [mm]
202,0
Brake Drum Inner Height [mm]
35,0

Specific References

EAN13
4006633507318
MPN
2402200052102
