ATE Originele 2-delige remtrommel (24022000521) voor Suzuki

€ 105,27 (incl. btw)

€ 87,00 belastingexcl.

Onderdeelnummer:

ATE 24.0220-0052.1
(240220-00521)

  • Buitendiameter [mm]: 242,0
  • Binnendiameter [mm]: 200,0
  • Draagplaat diameter [mm]: 62,0
  • Aantal boutgaten: 4
  • 2 Stukken Remtrommel
  • Handelsnummer: 480338
  • Ean Code: 4006633507318
  • Gewicht: 8.27kg
Aantal

Specification of ATE 24.0220-0052.1 / 240220-00521 / 24022000521:

OE NumberReference info
SUZUKI 43511-68L00Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
SUZUKI 43511-71L00Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2010-10 - 2017-0466901242Hatchback
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2010-10 - 2017-0466901242Hatchback
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2010-10 - 2017-0469941242Hatchback
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2010-10 - 2017-0469941242Hatchback
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2010-10 - 2017-0455751248Hatchback
SUZUKI SWIFT IV (FZ, NZ)

Fitting Position Rear Axle		2012-01 - 2017-041001361586Hatchback

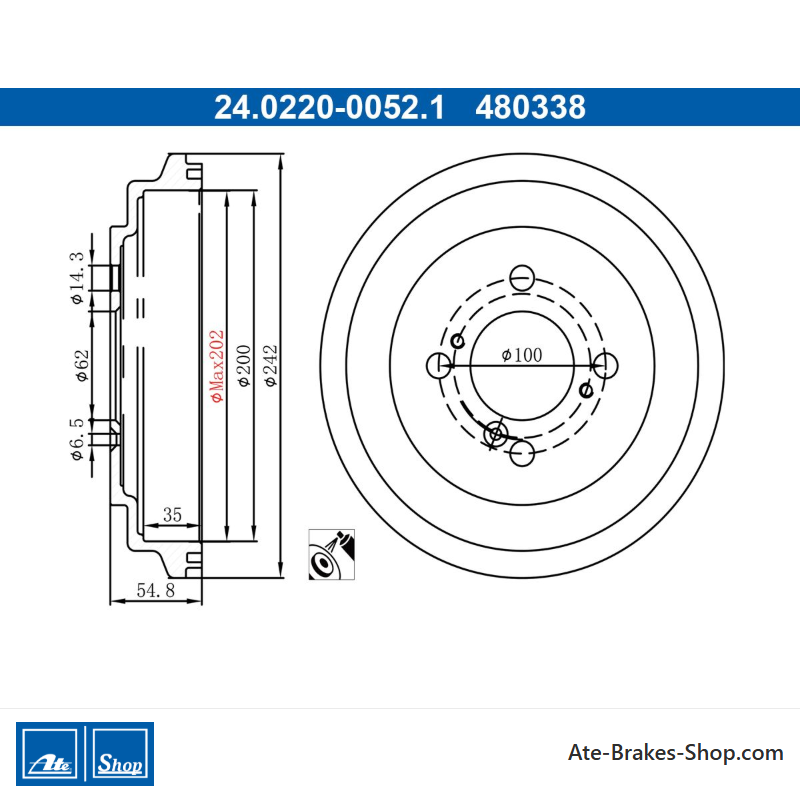

24.0220-0052.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Suzuki
Handelsnummer
480338
Land van Herkomst
China
Hoogte
54,8
Buitendiameter [mm]
242,0
Oppervlakte
geschilderd
Aantal boltgaten
4
Diameter van het schroefgat [mm]
100,0
Diameter van de ondersteuningsplaat [mm]
62,0
Binnendiameter [mm]
200,0
Bordiameter [mm]
14,3
Max. Afborende Dimensie [mm]
202,0
Binnenhoogte van de remtrommel [mm]
35,0

Specifieke referenties

ean13
4006633507318
MPN
2402200052102
