ATE Original 2 Pieces Brake Drum (24022200041) for Suzuki
€83.49
(tax incl.)
€69.00 tax excl.
Part-number:
ATE 24.0222-0004.1
(240222-00041)
- Outer diameter [mm]: 262,0
- Inner diameter [mm]: 220,0
- Support plate diameter [mm]: 100,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Drum
- Trade Number: 480327
- Ean Code: 4006633469203
- Weight: 10.57kg
Specification of ATE 24.0222-0004.1 / 240222-00041 / 24022200041:
| OE Number | Reference info |
| SUZUKI 43511-81A00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 43511-81A01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 43511-81A02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI JIMNY Open Off-Road Vehicle (SN) Fitting Position Rear Axle Country Specific Design Spain | 1998-09 - | 59 | 80 | 1298 | Open Off-Road Vehicle |
| SUZUKI JIMNY Open Off-Road Vehicle (SN) Fitting Position Rear Axle | 2004-08 - | 63 | 86 | 1328 | Open Off-Road Vehicle |
| SUZUKI JIMNY Open Off-Road Vehicle (SN) Fitting Position Rear Axle | 2013-03 - | 63 | 86 | 1328 | Open Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle Country Specific Design Spain | 1998-09 - | 59 | 80 | 1298 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle Country Specific Design Spain | 1998-09 - | 59 | 80 | 1298 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2001-02 - | 60 | 82 | 1328 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2001-02 - | 60 | 82 | 1328 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2014-05 - | 62 | 85 | 1328 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2004-08 - | 63 | 86 | 1328 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2005-08 - | 63 | 86 | 1328 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2003-12 - | 48 | 65 | 1461 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2005-08 - | 63 | 86 | 1461 | Closed Off-Road Vehicle |
| SUZUKI CARRY Bus Construction Year to 200409 Fitting Position Rear Axle | 1999-03 - 2006-12 | 56 | 76 | 1298 | Bus |
24.0222-0004.1

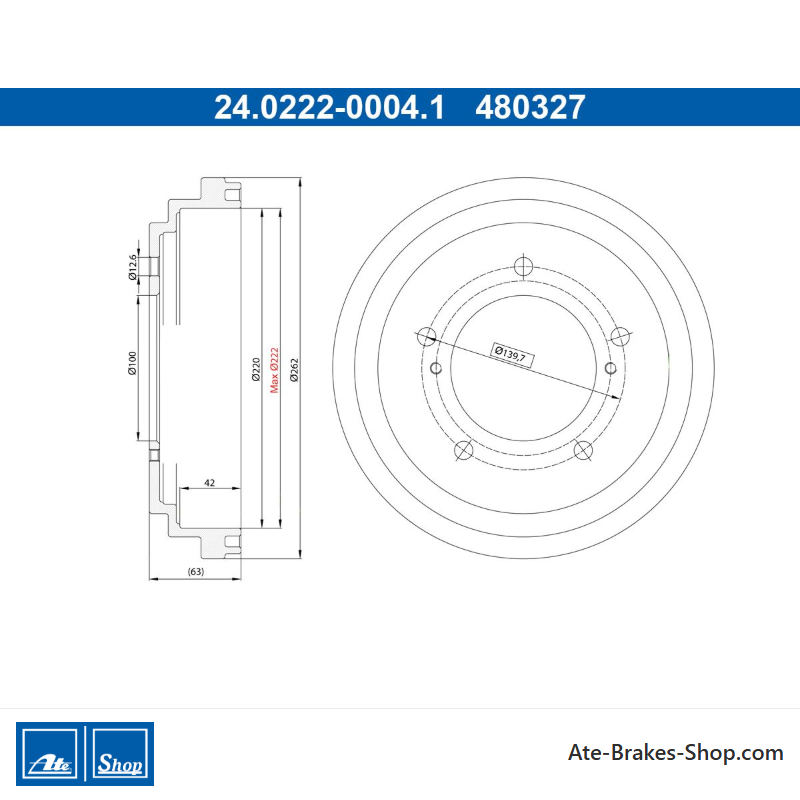

Data sheet
- Article Status
- Orderable
- Car Brand
- Suzuki
- Trade Number
- 480327
- Country Of Origin
- China
- Height
- 63,0
- Outer Diameter [mm]
- 262,0
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 139,7
- Support Plate Diameter [mm]
- 100,0
- Inner Diameter [mm]
- 220,0
- Bore Diameter [mm]
- 12,6
- Max. Reboring Dimension [mm]
- 222,0
- Brake Drum Inner Height [mm]
- 42,0
Specific References
- EAN13
- 4006633469203
- MPN
- 2402220004102
