ATE Original-2-teilige Bremstrommel (24022200041) für Suzuki
83,49 €
(inkl. MwSt.)
69,00 € Steuerexzl.
Teilenummer:
ATE 24.0222-0004.1
(240222-00041)
- Außendurchmesser [mm]: 262,0
- Innendurchmesser [mm]: 220,0
- Trägerplattendurchmesser [mm]: 100,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480327
- Ean-Code: 4006633469203
- Gewicht: 10.57kg
Specification of ATE 24.0222-0004.1 / 240222-00041 / 24022200041:
| OE Number | Reference info |
| SUZUKI 43511-81A00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 43511-81A01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 43511-81A02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI JIMNY Open Off-Road Vehicle (SN) Fitting Position Rear Axle Country Specific Design Spain | 1998-09 - | 59 | 80 | 1298 | Open Off-Road Vehicle |
| SUZUKI JIMNY Open Off-Road Vehicle (SN) Fitting Position Rear Axle | 2004-08 - | 63 | 86 | 1328 | Open Off-Road Vehicle |
| SUZUKI JIMNY Open Off-Road Vehicle (SN) Fitting Position Rear Axle | 2013-03 - | 63 | 86 | 1328 | Open Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle Country Specific Design Spain | 1998-09 - | 59 | 80 | 1298 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle Country Specific Design Spain | 1998-09 - | 59 | 80 | 1298 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2001-02 - | 60 | 82 | 1328 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2001-02 - | 60 | 82 | 1328 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2014-05 - | 62 | 85 | 1328 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2004-08 - | 63 | 86 | 1328 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2005-08 - | 63 | 86 | 1328 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2003-12 - | 48 | 65 | 1461 | Closed Off-Road Vehicle |
| SUZUKI JIMNY Closed Off-Road Vehicle (SN, JB_) Fitting Position Rear Axle | 2005-08 - | 63 | 86 | 1461 | Closed Off-Road Vehicle |
| SUZUKI CARRY Bus Construction Year to 200409 Fitting Position Rear Axle | 1999-03 - 2006-12 | 56 | 76 | 1298 | Bus |

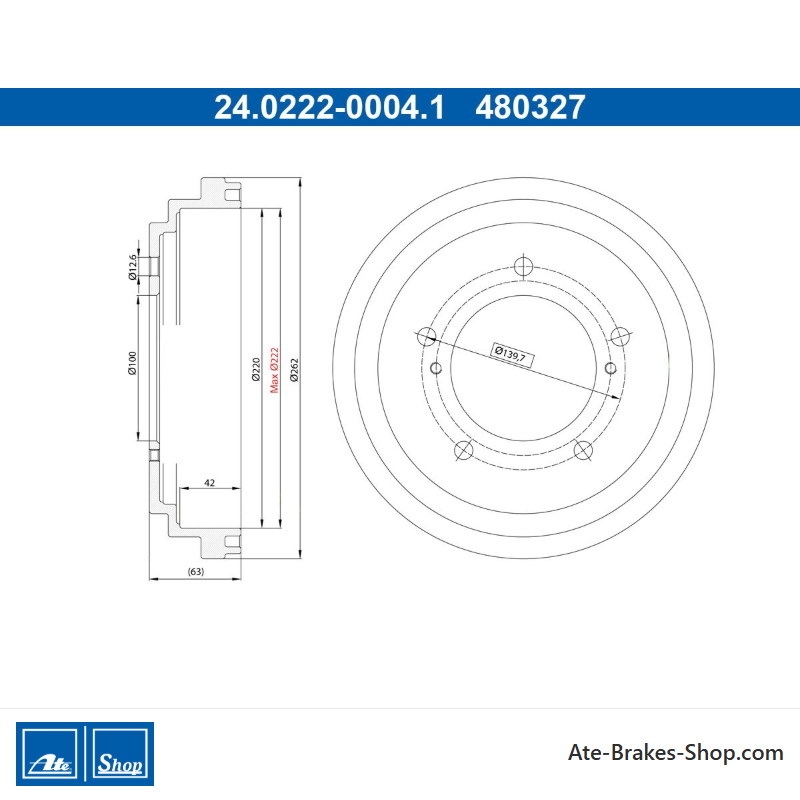

24.0222-0004.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Suzuki
- Handelsnummer
- 480327
- Herkunftsland
- China
- Höhe
- 63,0
- Außendurchmesser [mm]
- 262,0
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 139,7
- Trägerplattendurchmesser [mm]
- 100,0
- Innendurchmesser [mm]
- 220,0
- Bohrdurchmesser [mm]
- 12,6
- Max. Bohrende Dimension [mm]
- 222,0
- Innenhöhe der Bremstrommel [mm]
- 42,0
Spezifische Referenzen
- ean13
- 4006633469203
- Hersteller-Teilenummer (MPN)
- 2402220004102
ATE 24.0222-0004.1
(240222-00041)
- Außendurchmesser [mm]: 262,0
- Innendurchmesser [mm]: 220,0
- Trägerplattendurchmesser [mm]: 100,0
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480327
