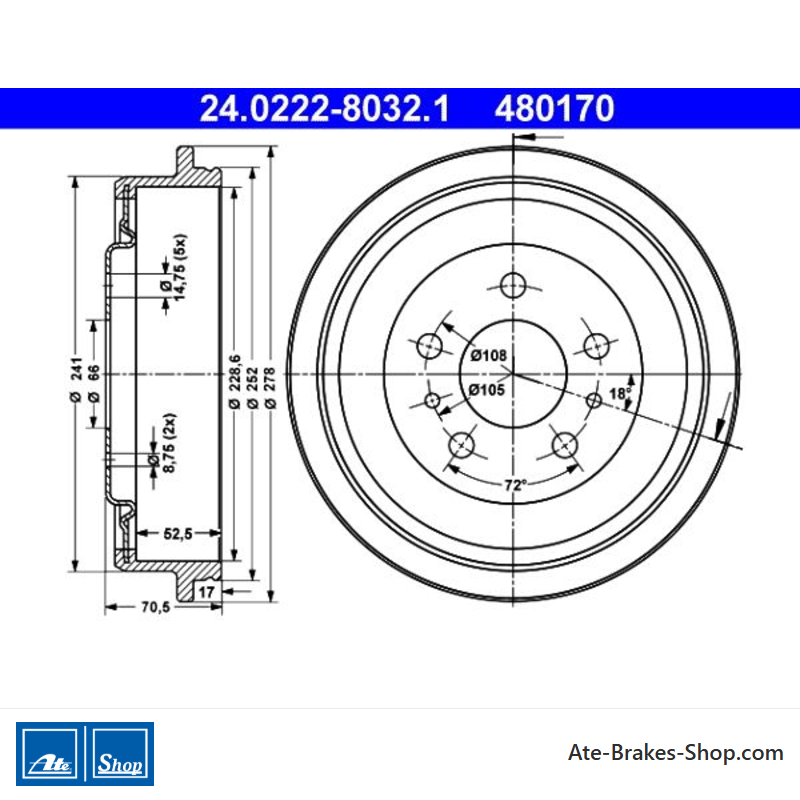

ATE Original 2 Pieces Brake Drum (24022280321) for Renault
€159.72
(tax incl.)
€132.00 tax excl.
Part-number:
ATE 24.0222-8032.1
(240222-80321)
- Outer diameter [mm]: 278,0
- Inner diameter [mm]: 229
- Support plate diameter [mm]: 66,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Drum
- Trade Number: 480170
- Ean Code: 4006633126250
- Weight: 9.57kg
Specification of ATE 24.0222-8032.1 / 240222-80321 / 24022280321:
| OE Number | Reference info |
| RENAULT 77 00 421 740 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7700421740 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 77 00 710 513 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7700710513 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 172 066 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200172066 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT ESPACE III (JE0_) Fitting Position Rear Axle | 1996-11 - 2000-10 | 84 | 114 | 1998 | MPV |
| RENAULT ESPACE III (JE0_) Fitting Position Rear Axle | 1999-02 - 2002-10 | 72 | 98 | 1870 | MPV |
| RENAULT ESPACE III (JE0_) Fitting Position Rear Axle | 1996-11 - 2000-10 | 83 | 113 | 2188 | MPV |
| RENAULT ESPACE III (JE0_) Fitting Position Rear Axle | 1997-11 - 2000-01 | 84 | 114 | 2188 | MPV |
| RENAULT ESPACE III (JE0_) Fitting Position Rear Axle | 2000-07 - 2002-10 | 85 | 115 | 2188 | MPV |
24.0222-8032.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Renault
- Trade Number
- 480170
- Country Of Origin
- Italy
- Height
- 70,5
- Outer Diameter [mm]
- 278,0
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 108,0
- Support Plate Diameter [mm]
- 66,0
- Inner Diameter [mm]
- 229
- Bore Diameter [mm]
- 14,8
- Max. Reboring Dimension [mm]
- 229,5
- Brake Drum Inner Height [mm]
- 52,5
Specific References
- EAN13
- 4006633126250
- MPN
- 2402228032102
ATE 24.0222-8032.1
(240222-80321)
- Outer diameter [mm]: 278,0
- Inner diameter [mm]: 229
- Support plate diameter [mm]: 66,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Drum
- Trade Number: 480170
