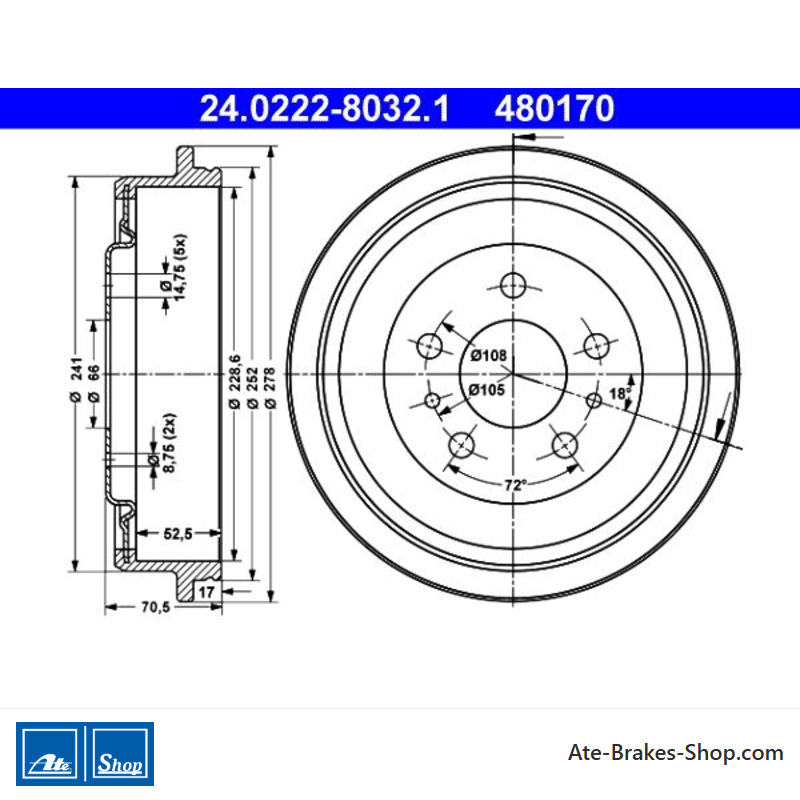

ATE Originele 2-delige remtrommel (24022280321) voor Renault
€ 159,72
(incl. btw)
€ 132,00 belastingexcl.
Onderdeelnummer:
ATE 24.0222-8032.1
(240222-80321)
- Buitendiameter [mm]: 278,0
- Binnendiameter [mm]: 229
- Draagplaat diameter [mm]: 66,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480170
- Ean Code: 4006633126250
- Gewicht: 9.57kg
Specification of ATE 24.0222-8032.1 / 240222-80321 / 24022280321:
| OE Number | Reference info |
| RENAULT 77 00 421 740 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7700421740 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 77 00 710 513 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7700710513 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 172 066 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200172066 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT ESPACE III (JE0_) Fitting Position Rear Axle | 1996-11 - 2000-10 | 84 | 114 | 1998 | MPV |
| RENAULT ESPACE III (JE0_) Fitting Position Rear Axle | 1999-02 - 2002-10 | 72 | 98 | 1870 | MPV |
| RENAULT ESPACE III (JE0_) Fitting Position Rear Axle | 1996-11 - 2000-10 | 83 | 113 | 2188 | MPV |
| RENAULT ESPACE III (JE0_) Fitting Position Rear Axle | 1997-11 - 2000-01 | 84 | 114 | 2188 | MPV |
| RENAULT ESPACE III (JE0_) Fitting Position Rear Axle | 2000-07 - 2002-10 | 85 | 115 | 2188 | MPV |
24.0222-8032.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Renault
- Handelsnummer
- 480170
- Land van Herkomst
- Italië
- Hoogte
- 70,5
- Buitendiameter [mm]
- 278,0
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 108,0
- Diameter van de ondersteuningsplaat [mm]
- 66,0
- Binnendiameter [mm]
- 229
- Bordiameter [mm]
- 14,8
- Max. Afborende Dimensie [mm]
- 229,5
- Binnenhoogte van de remtrommel [mm]
- 52,5
Specifieke referenties
- ean13
- 4006633126250
- MPN
- 2402228032102
ATE 24.0222-8032.1
(240222-80321)
- Buitendiameter [mm]: 278,0
- Binnendiameter [mm]: 229
- Draagplaat diameter [mm]: 66,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480170
