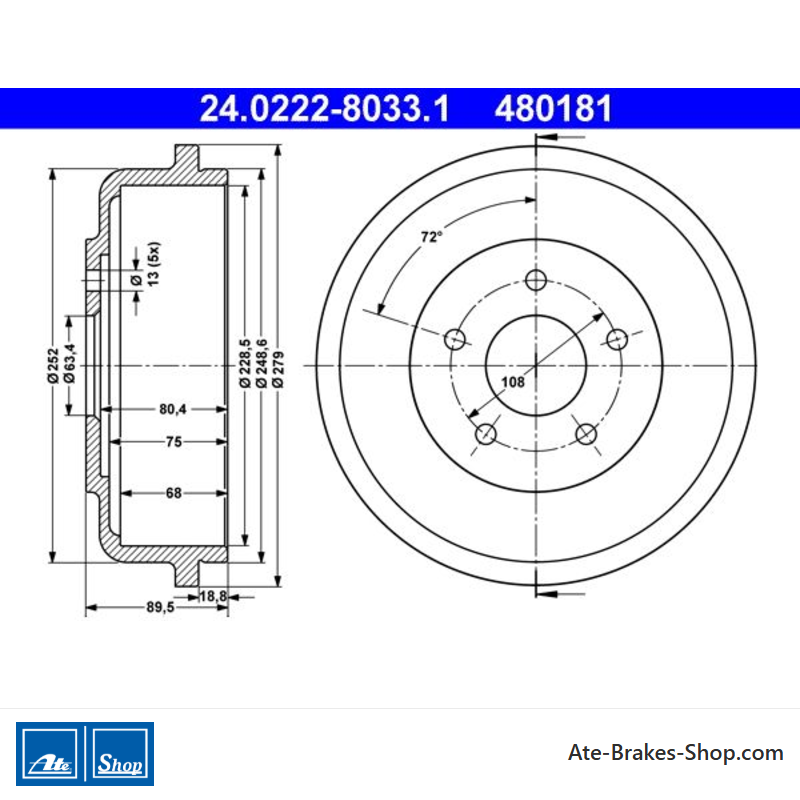

ATE Original 2 Pieces Brake Drum (24022280331) for Ford
€130.68
(tax incl.)
€108.00 tax excl.
Part-number:
ATE 24.0222-8033.1
(240222-80331)
- Outer diameter [mm]: 279,0
- Inner diameter [mm]: 229
- Support plate diameter [mm]: 63,4
- Number of Bolt Holes: 5
- 2 Pieces of Brake Drum
- Trade Number: 480181
- Ean Code: 4006633162999
- Weight: 16.37kg
Specification of ATE 24.0222-8033.1 / 240222-80331 / 24022280331:
| OE Number | Reference info |
| FORD 1361302 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4367103 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4467600 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1334975 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1361304 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4367102 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4455981 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1334973 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2T14-1126-CD | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2T14-1126-DD | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2002-06 - 2013-12 | 85 | 116 | 1796 | MPV |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2002-06 - 2013-12 | 55 | 75 | 1753 | MPV |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2002-06 - 2013-12 | 66 | 90 | 1753 | MPV |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2006-08 - 2013-12 | 81 | 110 | 1753 | MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2010-09 - 2013-12 | 105 | 143 | CC | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 85 | 116 | 1796 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 85 | 116 | 1796 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 55 | 75 | 1753 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 66 | 90 | 1753 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2006-08 - 2013-12 | 81 | 110 | 1753 | Box Body/MPV |
24.0222-8033.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
- Trade Number
- 480181
- Country Of Origin
- China
- Height
- 89,5
- Outer Diameter [mm]
- 279,0
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 108,0
- Support Plate Diameter [mm]
- 63,4
- Inner Diameter [mm]
- 229
- Bore Diameter [mm]
- 13,0
- Max. Reboring Dimension [mm]
- 229,6
- Brake Drum Inner Height [mm]
- 68,0
Specific References
- EAN13
- 4006633162999
- MPN
- 2402228033102
ATE 24.0222-8033.1
(240222-80331)
- Outer diameter [mm]: 279,0
- Inner diameter [mm]: 229
- Support plate diameter [mm]: 63,4
- Number of Bolt Holes: 5
- 2 Pieces of Brake Drum
- Trade Number: 480181
