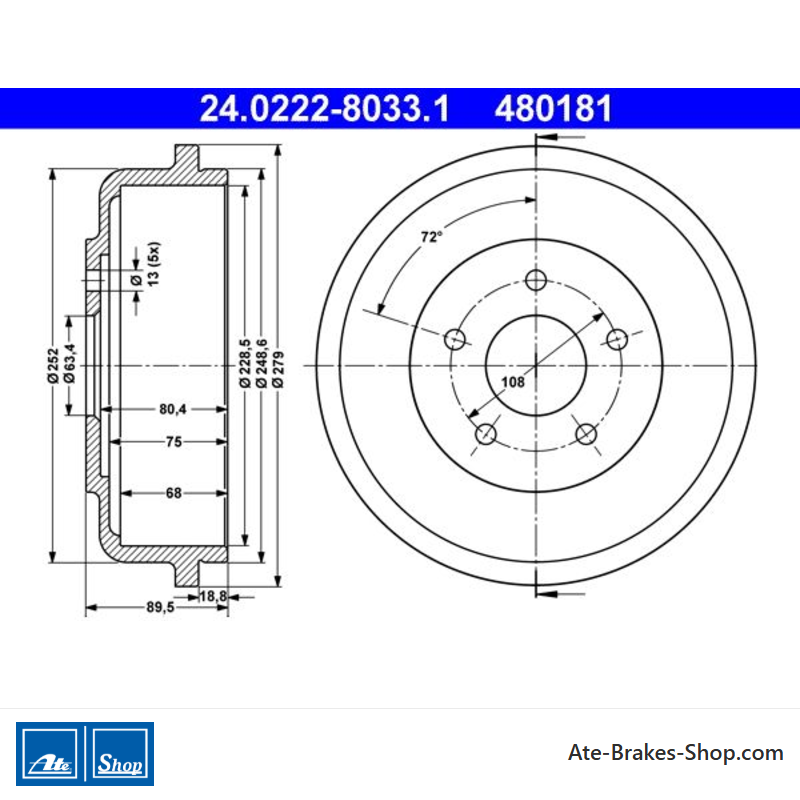

ATE Original-Zweiteilige Bremstrommel (24022280331) für Ford
130,68 €
(inkl. MwSt.)
108,00 € Steuerexzl.
Teilenummer:
ATE 24.0222-8033.1
(240222-80331)
- Außendurchmesser [mm]: 279,0
- Innendurchmesser [mm]: 229
- Trägerplattendurchmesser [mm]: 63,4
- Anzahl der Bolzenlöcher: 5
- 2 Teile der Bremstrommel
- Handelsnummer: 480181
- Ean-Code: 4006633162999
- Gewicht: 16.37kg
Specification of ATE 24.0222-8033.1 / 240222-80331 / 24022280331:
| OE Number | Reference info |
| FORD 1361302 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4367103 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4467600 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1334975 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1361304 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4367102 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4455981 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1334973 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2T14-1126-CD | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 2T14-1126-DD | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2002-06 - 2013-12 | 85 | 116 | 1796 | MPV |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2002-06 - 2013-12 | 55 | 75 | 1753 | MPV |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2002-06 - 2013-12 | 66 | 90 | 1753 | MPV |
| FORD TOURNEO CONNECT Construction Year to 201308 Fitting Position Rear Axle | 2006-08 - 2013-12 | 81 | 110 | 1753 | MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2010-09 - 2013-12 | 105 | 143 | CC | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 85 | 116 | 1796 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 85 | 116 | 1796 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 55 | 75 | 1753 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2002-06 - 2013-12 | 66 | 90 | 1753 | Box Body/MPV |
| FORD TRANSIT CONNECT (P65_, P70_, P80_) Fitting Position Rear Axle | 2006-08 - 2013-12 | 81 | 110 | 1753 | Box Body/MPV |
24.0222-8033.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Ford
- Handelsnummer
- 480181
- Herkunftsland
- China
- Höhe
- 89,5
- Außendurchmesser [mm]
- 279,0
- Anzahl der Schraublöcher
- 5
- Bolzenlochdurchmesser [mm]
- 108,0
- Trägerplattendurchmesser [mm]
- 63,4
- Innendurchmesser [mm]
- 229
- Bohrdurchmesser [mm]
- 13,0
- Max. Bohrende Dimension [mm]
- 229,6
- Innenhöhe der Bremstrommel [mm]
- 68,0
Spezifische Referenzen
- ean13
- 4006633162999
- Hersteller-Teilenummer (MPN)
- 2402228033102
