ATE Original 2 Pieces Brake Drum (24022300151) for Seat, Volkswagen (VW)
€90.75
(tax incl.)
€75.00 tax excl.
Part-number:
ATE 24.0223-0015.1
(240223-00151)
- Outer diameter [mm]: 275,0
- Inner diameter [mm]: 230,0
- Support plate diameter [mm]: 52,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Drum
- Trade Number: 480073
- Ean Code: 4006633066853
- Weight: 16.62kg
Specification of ATE 24.0223-0015.1 / 240223-00151 / 24022300151:
| OE Number | Reference info |
| SEAT 6K9 501 615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6K9501615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6K9 501 615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6K9501615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 2003-06 | 44 | 60 | 1389 | Estate Van |
| SEAT INCA (6K9) Fitting Position Rear Axle | 2000-04 - 2003-06 | 55 | 75 | 1390 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 1998-05 | 55 | 75 | 1595 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1997-06 - 2000-09 | 55 | 75 | 1598 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1996-09 - 2003-06 | 42 | 57 | 1715 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 2003-06 | 47 | 64 | 1896 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 2003-06 | 47 | 64 | 1896 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1996-09 - 2003-06 | 66 | 90 | 1896 | Estate Van |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2003-06 | 44 | 60 | 1390 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-08 - 2004-01 | 55 | 75 | 1390 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 1997-05 | 55 | 75 | 1595 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-06 - 2000-09 | 55 | 75 | 1598 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-10 - 2004-01 | 66 | 90 | 1896 | MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 44 | 60 | 1390 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-08 - 2004-01 | 55 | 75 | 1390 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 1997-05 | 55 | 75 | 1595 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2000-09 | 55 | 75 | 1598 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-07 - 2000-09 | 42 | 57 | 1715 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-09 - 2004-01 | 66 | 90 | 1896 | Box Body/MPV |
24.0223-0015.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Seat
Volkswagen (VW) - Trade Number
- 480073
- Country Of Origin
- China
- Additional Info
- without wheel bearing

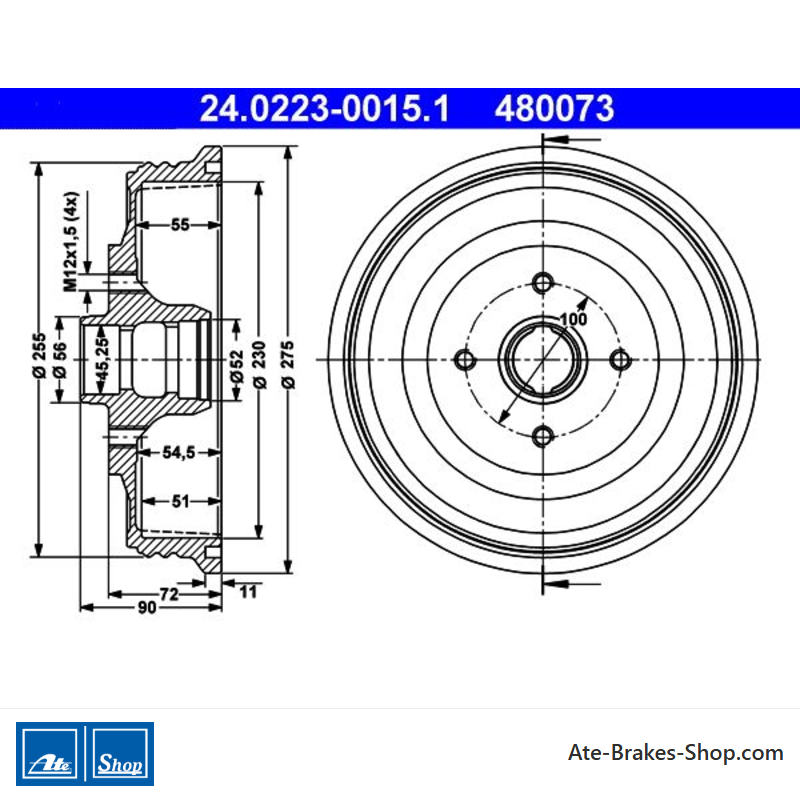

- Height
- 90,0
- Outer Diameter [mm]
- 275,0
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Support Plate Diameter [mm]
- 52,0
- Inner Diameter [mm]
- 230,0
- Thread Size
- M12x1,5
- Max. Reboring Dimension [mm]
- 231,0
- Brake Drum Inner Height [mm]
- 51,0
- Brake Drum Inner Diameter [mm]
- 45,3
Specific References
- EAN13
- 4006633066853
- MPN
- 2402230015102
