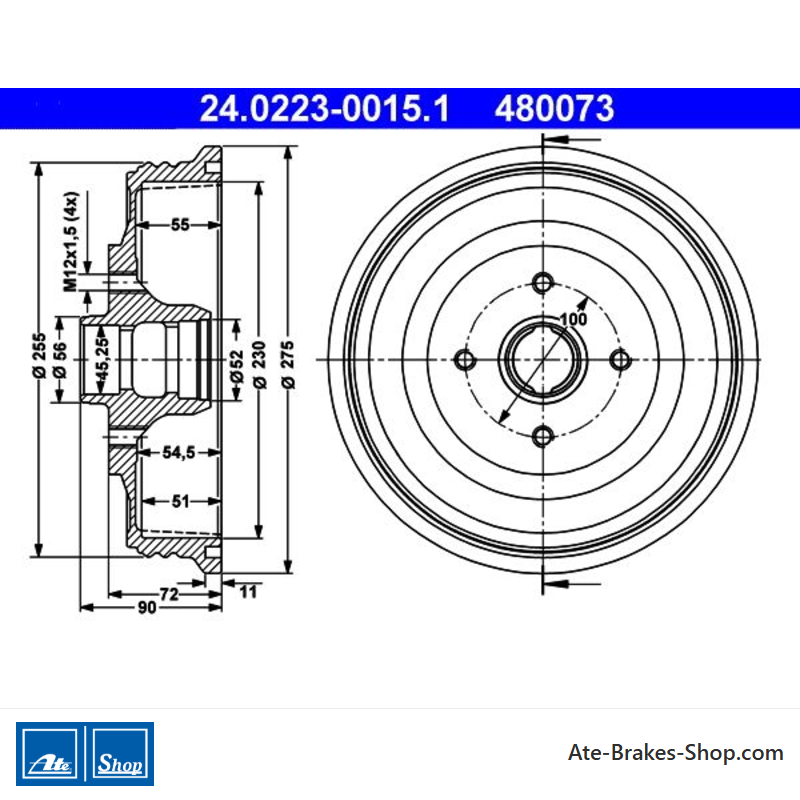

ATE Originele 2-delige remtrommel (24022300151) voor Seat, Volkswagen (VW)
€ 90,75
(incl. btw)
€ 75,00 belastingexcl.
Onderdeelnummer:
ATE 24.0223-0015.1
(240223-00151)
- Buitendiameter [mm]: 275,0
- Binnendiameter [mm]: 230,0
- Draagplaat diameter [mm]: 52,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480073
- Ean Code: 4006633066853
- Gewicht: 16.62kg
Specification of ATE 24.0223-0015.1 / 240223-00151 / 24022300151:
| OE Number | Reference info |
| SEAT 6K9 501 615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6K9501615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6K9 501 615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6K9501615 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 2003-06 | 44 | 60 | 1389 | Estate Van |
| SEAT INCA (6K9) Fitting Position Rear Axle | 2000-04 - 2003-06 | 55 | 75 | 1390 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 1998-05 | 55 | 75 | 1595 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1997-06 - 2000-09 | 55 | 75 | 1598 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1996-09 - 2003-06 | 42 | 57 | 1715 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 2003-06 | 47 | 64 | 1896 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1995-11 - 2003-06 | 47 | 64 | 1896 | Estate Van |
| SEAT INCA (6K9) Braking/Driving Dynamics for vehicles without ABS Vehicle Identification Number (VIN) to 9K-X-023407 Fitting Position Rear Axle | 1996-09 - 2003-06 | 66 | 90 | 1896 | Estate Van |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2003-06 | 44 | 60 | 1390 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-08 - 2004-01 | 55 | 75 | 1390 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 1997-05 | 55 | 75 | 1595 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1997-06 - 2000-09 | 55 | 75 | 1598 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-10 - 2004-01 | 66 | 90 | 1896 | MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 44 | 60 | 1390 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 2000-08 - 2004-01 | 55 | 75 | 1390 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 1997-05 | 55 | 75 | 1595 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2000-09 | 55 | 75 | 1598 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-07 - 2000-09 | 42 | 57 | 1715 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-Y-500747 Braking/Driving Dynamics for vehicles without ABS Fitting Position Rear Axle | 1996-09 - 2004-01 | 66 | 90 | 1896 | Box Body/MPV |
24.0223-0015.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
Zetel - Handelsnummer
- 480073
- Land van Herkomst
- China
- Aanvullende informatie
- zonder wiellager
- Hoogte
- 90,0
- Buitendiameter [mm]
- 275,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 52,0
- Binnendiameter [mm]
- 230,0
- Draadmaat
- M12x1,5
- Max. Afborende Dimensie [mm]
- 231,0
- Binnenhoogte van de remtrommel [mm]
- 51,0
- Remtrommel binnendiameter [mm]
- 45,3
Specifieke referenties
- ean13
- 4006633066853
- MPN
- 2402230015102
ATE 24.0223-0015.1
(240223-00151)
- Buitendiameter [mm]: 275,0
- Binnendiameter [mm]: 230,0
- Draagplaat diameter [mm]: 52,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480073
