ATE Original 2 Pieces Brake Drum (24022540161) for Ford
€134.31
(tax incl.)
€111.00 tax excl.
Part-number:
ATE 24.0225-4016.1
(240225-40161)
- Outer diameter [mm]: 292,0
- Inner diameter [mm]: 254,0
- Support plate diameter [mm]: 132,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Drum
- Trade Number: 480171
- Ean Code: 4006633126274
- Weight: 19.74kg
Specification of ATE 24.0225-4016.1 / 240225-40161 / 24022540161:
| OE Number | Reference info |
| FORD 4540218 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4146930 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2001-03 - 2006-03 | 105 | 143 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2003-08 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2004-03 - 2006-05 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2001-07 - 2006-05 | 92 | 125 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2004-03 - 2006-05 | 101 | 137 | 2402 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Construction Year from 200605 Fitting Position Rear Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-06 - 2003-08 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-06 - 2005-03 | 74 | 101 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2002-03 - 2006-03 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2006-07 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2006-07 - 2014-08 | 96 | 131 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |

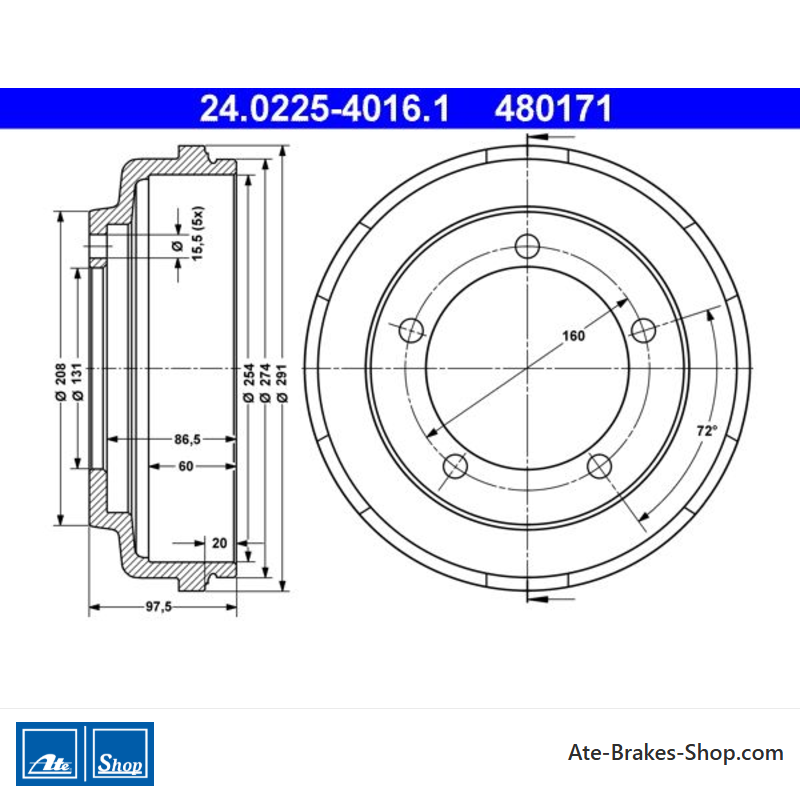

24.0225-4016.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Ford
- Trade Number
- 480171
- Country Of Origin
- China
- Height
- 97,5
- Outer Diameter [mm]
- 292,0
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 160,0
- Support Plate Diameter [mm]
- 132,0
- Inner Diameter [mm]
- 254,0
- Bore Diameter [mm]
- 15,5
- Max. Reboring Dimension [mm]
- 256,0
- Brake Drum Inner Height [mm]
- 60,0
Specific References
- EAN13
- 4006633126274
- MPN
- 2402254016102
ATE 24.0225-4016.1
(240225-40161)
- Outer diameter [mm]: 292,0
- Inner diameter [mm]: 254,0
- Support plate diameter [mm]: 132,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Drum
- Trade Number: 480171
