ATE Tambour de frein original en 2 pièces (24022540161) pour Ford
134,31 €
TTC
111,00 € fiscalité ex.
Numéro de pièce :
ATE 24.0225-4016.1
(240225-40161)

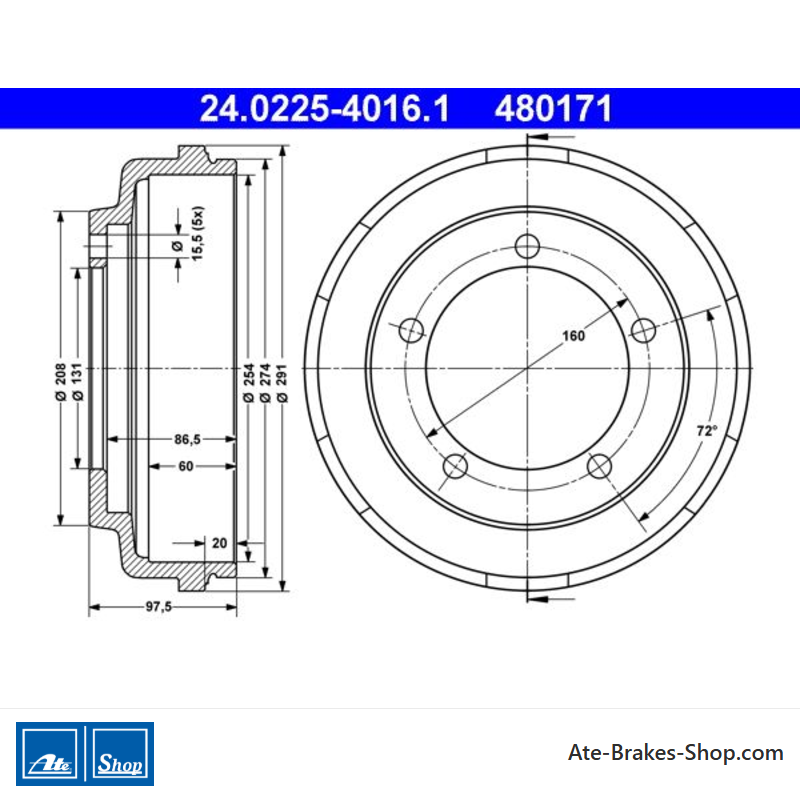

- Diamètre extérieur [mm] : 292,0
- Diamètre intérieur [mm] : 254,0
- Diamètre de la plaque de support [mm] : 132,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro de trade : 480171
- Code Ean : 4006633126274
- Poids : 19.74kg
Specification of ATE 24.0225-4016.1 / 240225-40161 / 24022540161:
| OE Number | Reference info |
| FORD 4540218 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 4146930 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2001-03 - 2006-03 | 105 | 143 | 2295 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2003-08 | 55 | 75 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2004-03 - 2006-05 | 85 | 115 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2001-07 - 2006-05 | 92 | 125 | 2402 | Van |
| FORD TRANSIT Van (FA_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2004-03 - 2006-05 | 101 | 137 | 2402 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 63 | 86 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-08 - 2006-05 | 74 | 100 | 1998 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2002-08 - 2006-05 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Van |
| FORD TRANSIT Van (FA_ _) Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Van |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Platform/Chassis |
| FORD TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Platform/Chassis |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Construction Year from 200605 Fitting Position Rear Axle | 2006-04 - 2014-08 | 63 | 85 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 74 | 100 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2006-04 - 2014-08 | 96 | 130 | 2198 | Bus |
| FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-06 - 2003-08 | 55 | 75 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2000-06 - 2005-03 | 74 | 101 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus (FC_ _) Vehicle type 260/280/300 Fitting Position Rear Axle | 2002-03 - 2006-03 | 92 | 125 | 1998 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2006-07 - 2014-08 | 81 | 110 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2008-10 - 2014-08 | 85 | 115 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2011-10 - 2014-08 | 92 | 125 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2006-07 - 2014-08 | 96 | 131 | 2198 | Bus |
| FORD TRANSIT TOURNEO Bus Fitting Position Rear Axle | 2007-10 - 2014-08 | 103 | 140 | 2198 | Bus |
24.0225-4016.1
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Ford
- Numéro de trade
- 480171
- Pays d’origine
- Chine
- Hauteur
- 97,5
- Diamètre extérieur [mm]
- 292,0
- Nombre de trous de boulons
- 5
- Diamètre du trou de boulon [mm]
- 160,0
- Diamètre de la plaque de support [mm]
- 132,0
- Diamètre intérieur [mm]
- 254,0
- Diamètre du canon [mm]
- 15,5
- Max. Dimension de réalésage [mm]
- 256,0
- Hauteur intérieure du tambour de frein [mm]
- 60,0
Références spécifiques
- EAN-13
- 4006633126274
- MPN
- 2402254016102
ATE 24.0225-4016.1
(240225-40161)
- Diamètre extérieur [mm] : 292,0
- Diamètre intérieur [mm] : 254,0
- Diamètre de la plaque de support [mm] : 132,0
- Nombre de trous de boulon : 5
- 2 pièces de tambour de frein
- Numéro de trade : 480171
