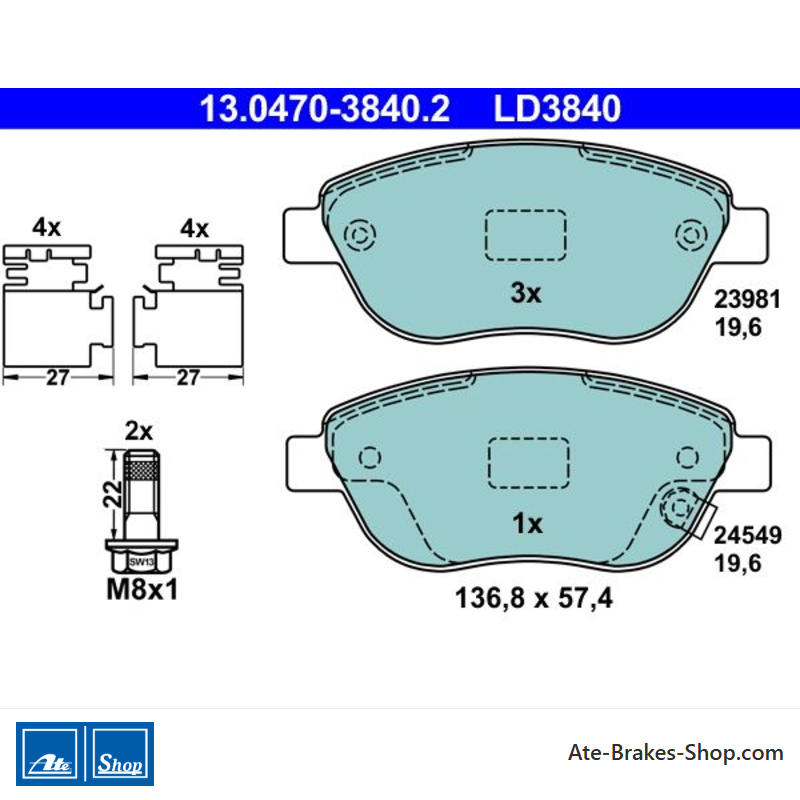

ATE original ceramic brake pads (13047038402) for Fiat, Opel
€65.34
(tax incl.)
€54.00 tax excl.
Part-number:
ATE 13.0470-3840.2
(130470-38402)
- Width [mm]: 136,8
- Height [mm]: 57,4
- Thickness [mm]: 19,6
- Wear Warning Contact: with acoustic wear warning
- Brake System: Bosch
- Trade Number: LD3840
- Ean Code: 4006633383929
- Weight: 2.01kg
Specification of ATE 13.0470-3840.2 / 130470-38402 / 13047038402:
| OE Number | Reference info |
| FIAT 77366534 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77366481 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 16 05 354 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 1605354 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 93189816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 16 05 227 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 1605227 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 93169175 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 93189816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 93169175 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 16 05 227 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 1605227 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 16 05 354 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 1605354 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2012-09 - | 77 | 105 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2017-04 - | 59 | 80 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2013-03 - | 63 | 86 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2012-09 - | 70 | 95 | 1368 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2012-09 - | 62 | 84 | 1248 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2014-06 - | 70 | 95 | 1248 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2012-09 - 2018-05 | 77 | 105 | 1598 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2006-07 - 2014-08 | 55 | 75 | 1248 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2011-06 | 66 | 90 | 1248 | Hatchback |
| OPEL CORSA D (S07) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2009-06 - 2014-08 | 70 | 95 | 1248 | Hatchback |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2006-07 - 2014-08 | 55 | 75 | 1248 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2010-06 | 66 | 90 | 1248 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2009-11 - 2014-08 | 70 | 95 | 1248 | Hatchback Van |
13.0470-3840.2
Data sheet
- Article Status
- Orderable
- Car Brand
- Fiat
Opel - Trade Number
- LD3840
- Brake System
- Bosch
- Country Of Origin
- Czechia
- Wear Indicator
- Acoustic
- Additional Info
- with accessories
with brake caliper screws - Width
- 136,8
- Height
- 57,4
- Thickness
- 19,6
- Number of Bolts/Screws
- 2
- Number of Wear Indicators
- 1 Per Axle
- Permissible up to Vehicle Capacity
- 225 kW
Specific References
- EAN13
- 4006633383929
- MPN
- 1304703840202
ATE 13.0470-3840.2
(130470-38402)
- Width [mm]: 136,8
- Height [mm]: 57,4
- Thickness [mm]: 19,6
- Wear Warning Contact: with acoustic wear warning
- Brake System: Bosch
- Trade Number: LD3840
