ATE originale Keramikbremsbeläge (13047038402) für Fiat, Opel
65,34 €
(inkl. MwSt.)
54,00 € Steuerexzl.
Teilenummer:
ATE 13.0470-3840.2
(130470-38402)

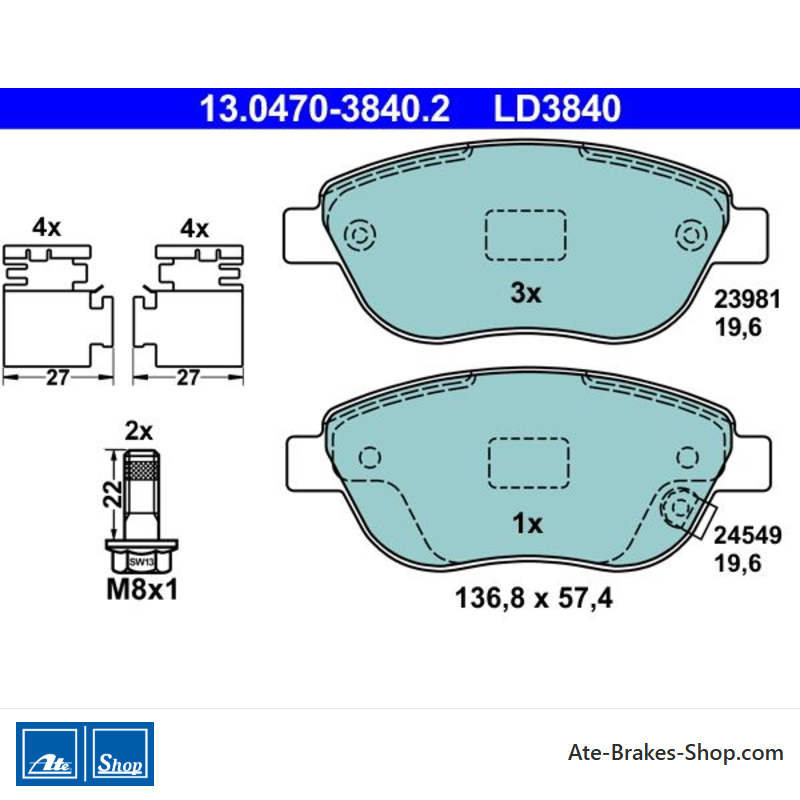

- Breite [mm]: 136,8
- Höhe [mm]: 57,4
- Dicke [mm]: 19,6
- Abnutzungswarnhinweis: mit akustischer Verschleißwarnung
- Bremssystem: Bosch
- Handelsnummer: LD3840
- Ean-Code: 4006633383929
- Gewicht: 2.01kg
Specification of ATE 13.0470-3840.2 / 130470-38402 / 13047038402:
| OE Number | Reference info |
| FIAT 77366534 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 77366481 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 16 05 354 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 1605354 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 93189816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 16 05 227 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 1605227 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| OPEL 93169175 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 93189816 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 93169175 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 16 05 227 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 1605227 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 16 05 354 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAUXHALL 1605354 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2012-09 - | 77 | 105 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2017-04 - | 59 | 80 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2013-03 - | 63 | 86 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2012-09 - | 70 | 95 | 1368 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2012-09 - | 62 | 84 | 1248 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2014-06 - | 70 | 95 | 1248 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Front Axle | 2012-09 - 2018-05 | 77 | 105 | 1598 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2006-07 - 2014-08 | 55 | 75 | 1248 | Hatchback |
| OPEL CORSA D (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2011-06 | 66 | 90 | 1248 | Hatchback |
| OPEL CORSA D (S07) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2009-06 - 2014-08 | 70 | 95 | 1248 | Hatchback |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2006-07 - 2014-08 | 55 | 75 | 1248 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) Construction Year from 200610 Fitting Position Front Axle | 2006-07 - 2010-06 | 66 | 90 | 1248 | Hatchback Van |
| OPEL CORSA D Hatchback Van (S07) for brake disc diameter [mm] 284 mm Fitting Position Front Axle | 2009-11 - 2014-08 | 70 | 95 | 1248 | Hatchback Van |
13.0470-3840.2
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Fiat
Opel - Handelsnummer
- LD3840
- Bremssystem
- Bosch
- Herkunftsland
- Tschechien
- Verschleißanzeige
- Akustik
- Zusätzliche Informationen
- Mit Zubehör
mit Bremssättelschrauben - Breite
- 136,8
- Höhe
- 57,4
- Dicke
- 19,6
- Anzahl der Schrauben/Schrauben
- 2
- Anzahl der Verschleißindikatoren
- 1 pro Achse
- Zulässig bis zur Fahrzeugkapazität
- 225 kW
Spezifische Referenzen
- ean13
- 4006633383929
- Hersteller-Teilenummer (MPN)
- 1304703840202
ATE 13.0470-3840.2
(130470-38402)
- Breite [mm]: 136,8
- Höhe [mm]: 57,4
- Dicke [mm]: 19,6
- Abnutzungswarnhinweis: mit akustischer Verschleißwarnung
- Bremssystem: Bosch
- Handelsnummer: LD3840
