ATE original ceramic brake pads (13047038692) for Peugeot
search
  • ATE original ceramic brake pads (13047038692) for Peugeot
  • ATE original ceramic brake pads (13047038692) for Peugeot
  • ATE original ceramic brake pads (13047038692) for Peugeot

ATE original ceramic brake pads (13047038692) for Peugeot

€61.71 (tax incl.)

€51.00 tax excl.

Part-number:

ATE 13.0470-3869.2
(130470-38692)

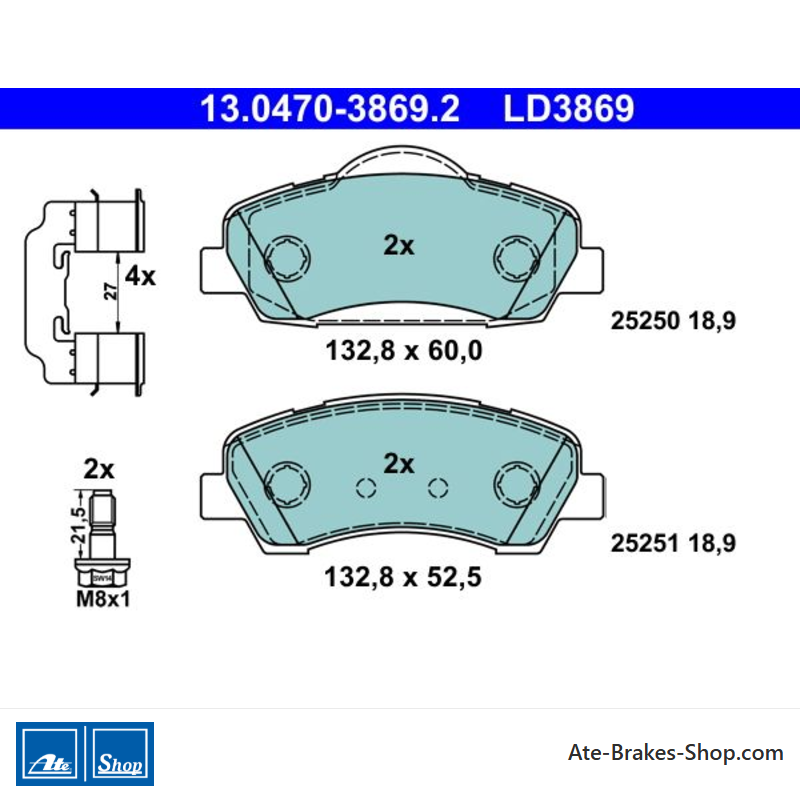

  • Width [mm]: 132,8
  • Height 1 [mm]: 52,5, Height 2 [mm]: 60,0
  • Thickness [mm]: 18,9
  • Wear Warning Contact: not prepared for wear warning indicator;excl. wear warning contact
  • Brake System: Mando
  • Trade Number: LD3869
  • Ean Code: 4006633435659
  • Weight: 1.73kg
Quantity

Specification of ATE 13.0470-3869.2 / 130470-38692 / 13047038692:

OE NumberReference info
PEUGEOT 16 106 992 80Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
PEUGEOT 1610699280Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Construction Year from 201408

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-06811101199Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-06961311199Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-06851151587Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-06921251598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-061101501598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-061151561598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2015-02 - 2021-061512051598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2018-01 - 2021-061652251598Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2018-04 - 2021-06751021499Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2017-06 - 2021-06961311499Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-0668921560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-04 - 2021-0673991560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-06851151560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-06881201560Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-061101501997Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2017-06 - 2021-061301771997Estate
PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-06 - 2021-061331811997Estate
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2013-09 - 2021-0660821199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2013-11 - 2021-06811101199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2013-11 - 2021-06961311199Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2013-09 - 2021-06921251598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-03 - 2021-061101501598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2013-09 - 2021-061151561598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-06 - 2021-061201631598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-06 - 2021-061512051598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2018-01 - 2021-061652251598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2015-08 - 2021-061842501598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2018-07 - 2021-061932631598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2015-06 - 2021-062002721598Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2018-05 - 2021-06751021499Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2017-06 - 2021-06961311499Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2013-09 - 2021-0668921560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-04 - 2021-0673991560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2013-09 - 2021-06851151560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2013-11 - 2021-06881201560Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2013-11 - 2021-061101501997Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2017-06 - 2021-061301771997Hatchback
PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_)

for brake disc diameter [mm] 266 mm

Fitting Position Front Axle		2014-06 - 2021-061331811997Hatchback
PEUGEOT 308 SW II (LC_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2017-06 - 2021-06961311499Estate Van
PEUGEOT 308 Hatchback Van (LB_)

Fitting Position Front Axle

for brake disc diameter [mm] 266 mm		2017-06 - 2021-06961311499Hatchback Van
13.0470-3869.2

Data sheet

Article Status
Orderable
Car Brand
Peugeot
Trade Number
LD3869
Brake System
Mando
Country Of Origin
Italy
Wear Indicator
None
Not Included
Not Prepared
Additional Info
with accessories
with brake caliper screws
Width
132,8
Height
52,5
60,0
Thickness
18,9
Number of Bolts/Screws
2
Permissible up to Vehicle Capacity
225 kW

Specific References

EAN13
4006633435659
MPN
1304703869202
