ATE plaquettes de frein en céramique d’origine (13047038692) pour Peugeot
61,71 €
TTC
51,00 € fiscalité ex.
Numéro de pièce :
ATE 13.0470-3869.2
(130470-38692)

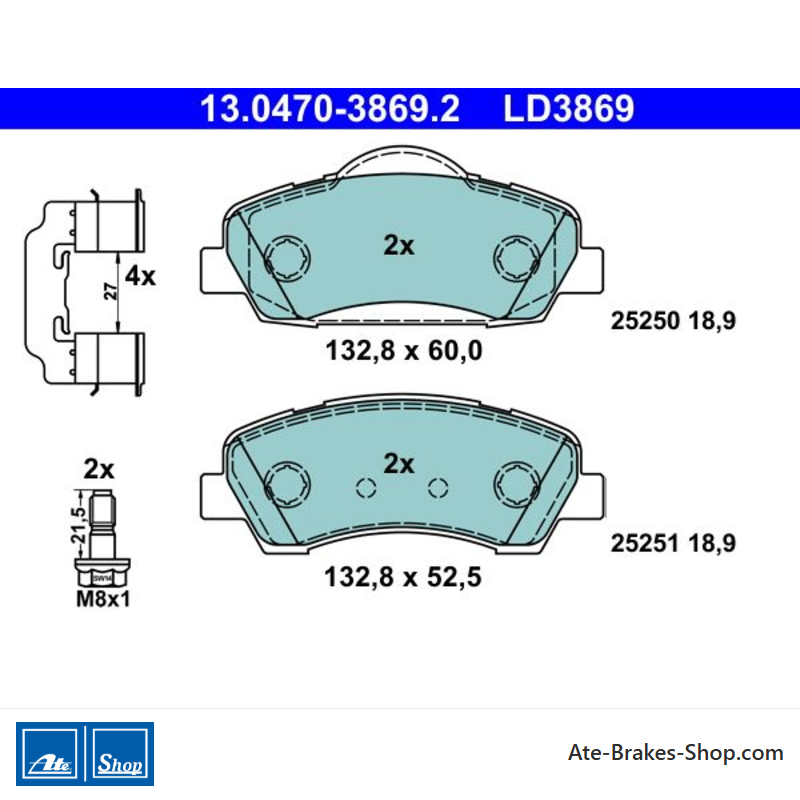

- Largeur [mm] : 132,8
- Hauteur 1 [mm] : 52,5, Hauteur 2 [mm] : 60,0
- Épaisseur [mm] : 18,9
- Contact d’avertissement d’usure : non préparé pour l’indicateur d’avertissement d’usure ; à l’exception du contact d’avertissement d’usure
- Système de freinage : Mando
- Numéro commercial : LD3869
- Code Ean : 4006633435659
- Poids : 1.73kg
Specification of ATE 13.0470-3869.2 / 130470-38692 / 13047038692:
| OE Number | Reference info |
| PEUGEOT 16 106 992 80 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 1610699280 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Construction Year from 201408 for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 81 | 110 | 1199 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 96 | 131 | 1199 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 85 | 115 | 1587 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 92 | 125 | 1598 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 110 | 150 | 1598 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 115 | 156 | 1598 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2015-02 - 2021-06 | 151 | 205 | 1598 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2018-01 - 2021-06 | 165 | 225 | 1598 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2018-04 - 2021-06 | 75 | 102 | 1499 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2017-06 - 2021-06 | 96 | 131 | 1499 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 68 | 92 | 1560 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-04 - 2021-06 | 73 | 99 | 1560 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 85 | 115 | 1560 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 88 | 120 | 1560 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 110 | 150 | 1997 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2017-06 - 2021-06 | 130 | 177 | 1997 | Estate |
| PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-06 - 2021-06 | 133 | 181 | 1997 | Estate |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2013-09 - 2021-06 | 60 | 82 | 1199 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2013-11 - 2021-06 | 81 | 110 | 1199 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2013-11 - 2021-06 | 96 | 131 | 1199 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2013-09 - 2021-06 | 92 | 125 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-03 - 2021-06 | 110 | 150 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2013-09 - 2021-06 | 115 | 156 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-06 - 2021-06 | 120 | 163 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-06 - 2021-06 | 151 | 205 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2018-01 - 2021-06 | 165 | 225 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2015-08 - 2021-06 | 184 | 250 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2018-07 - 2021-06 | 193 | 263 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2015-06 - 2021-06 | 200 | 272 | 1598 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2018-05 - 2021-06 | 75 | 102 | 1499 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2017-06 - 2021-06 | 96 | 131 | 1499 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2013-09 - 2021-06 | 68 | 92 | 1560 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-04 - 2021-06 | 73 | 99 | 1560 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2013-09 - 2021-06 | 85 | 115 | 1560 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2013-11 - 2021-06 | 88 | 120 | 1560 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2013-11 - 2021-06 | 110 | 150 | 1997 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2017-06 - 2021-06 | 130 | 177 | 1997 | Hatchback |
| PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) for brake disc diameter [mm] 266 mm Fitting Position Front Axle | 2014-06 - 2021-06 | 133 | 181 | 1997 | Hatchback |
| PEUGEOT 308 SW II (LC_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2017-06 - 2021-06 | 96 | 131 | 1499 | Estate Van |
| PEUGEOT 308 Hatchback Van (LB_) Fitting Position Front Axle for brake disc diameter [mm] 266 mm | 2017-06 - 2021-06 | 96 | 131 | 1499 | Hatchback Van |
13.0470-3869.2
Fiche technique
- Statut de l’article
- Ordonnance
- Marque automobile
- Peugeot
- Numéro de trade
- LD3869
- Système de freinage
- Mando
- Pays d’origine
- Italie
- Indicateur d’usure
- Aucun
Non inclus
Pas préparé - Informations supplémentaires
- avec accessoires
avec vis d’étrier de frein - Largeur
- 132,8
- Hauteur
- 52,5
60,0 - Épaisseur
- 18,9
- Nombre de boulons/vis
- 2
- Autorisé jusqu’à capacité du véhicule
- 225 kW
Références spécifiques
- EAN-13
- 4006633435659
- MPN
- 1304703869202
ATE 13.0470-3869.2
(130470-38692)
- Largeur [mm] : 132,8
- Hauteur 1 [mm] : 52,5, Hauteur 2 [mm] : 60,0
- Épaisseur [mm] : 18,9
- Contact d’avertissement d’usure : non préparé pour l’indicateur d’avertissement d’usure ; à l’exception du contact d’avertissement d’usure
- Système de freinage : Mando
- Numéro commercial : LD3869
