ATE Original 2 Pieces Brake Disk (24010901561) for Aston Martin, Toyota
€94.38
(tax incl.)
€78.00 tax excl.
Part-number:
ATE 24.0109-0156.1
(240109-01561)
- Outer Diameter [mm]: 259,0
- Inner Diameter [mm]: 156,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 409156
Logistical information:
- Ean Code: 4006633315760
- Weight: 6.59kg

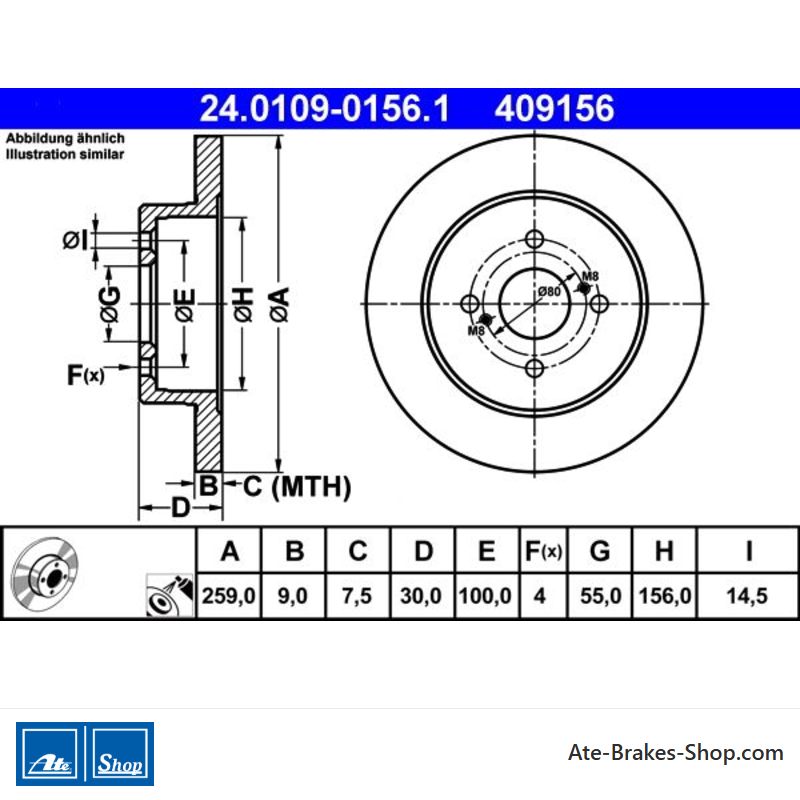

Specification of ATE 24.0109-0156.1 / 240109-01561 / 24010901561:
| OE Number | Reference info |
| TOYOTA 42431-52080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ASTON MARTIN 42431-52080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ASTON MARTIN CYGNET Fitting Position Rear Axle | 2011-04 - 2013-10 | 72 | 98 | 1329 | Hatchback |
| TOYOTA IQ (_J1_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2009-01 - 2015-12 | 50 | 68 | 998 | Hatchback |
| TOYOTA IQ (_J1_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2009-01 - 2015-12 | 72 | 98 | 1329 | Hatchback |
| TOYOTA IQ (_J1_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2009-01 - 2015-12 | 66 | 90 | 1364 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country Japan Fitting Position Rear Axle | 2005-08 - 2011-12 | 51 | 69 | 998 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country Japan Fitting Position Rear Axle | 2006-01 - 2011-12 | 51 | 69 | 998 | Hatchback |
| TOYOTA YARIS (_P9_) Construction Year to 201108 Vehicle Production Country Japan Fitting Position Rear Axle | 2007-01 - 2011-12 | 98 | 133 | 1798 | Hatchback |
| TOYOTA YARIS / VIOS Saloon (_P9_) Fitting Position Rear Axle | 2005-09 - 2013-10 | 64 | 87 | 1298 | Saloon |
24.0109-0156.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Aston Martin
Toyota - Trade Number
- 409156
- Country Of Origin
- Czechia
- Height
- 30,3
- Outer Diameter [mm]
- 259,0
- Brake Disc Thickness [mm]
- 9,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 156,0
- Bore Diameter [mm]
- 14,5
- Minimum Thickness [mm]
- 7,5
Specific References
- EAN13
- 4006633315760
- MPN
- 2401090156102
ATE 24.0109-0156.1
(240109-01561)
- Outer Diameter [mm]: 259,0
- Inner Diameter [mm]: 156,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 4
- 2 Pieces of Brake Disc
- Trade Number: 409156
