ATE Originale zweiteilige Bremsscheibe (24010901561) für Aston Martin, Toyota
94,38 €
(inkl. MwSt.)
78,00 € Steuerexzl.
Teilenummer:
ATE 24.0109-0156.1
(240109-01561)
- Außendurchmesser [mm]: 259,0
- Innendurchmesser [mm]: 156,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 409156
Logistische Informationen:
- Ean-Code: 4006633315760
- Gewicht: 6.59kg

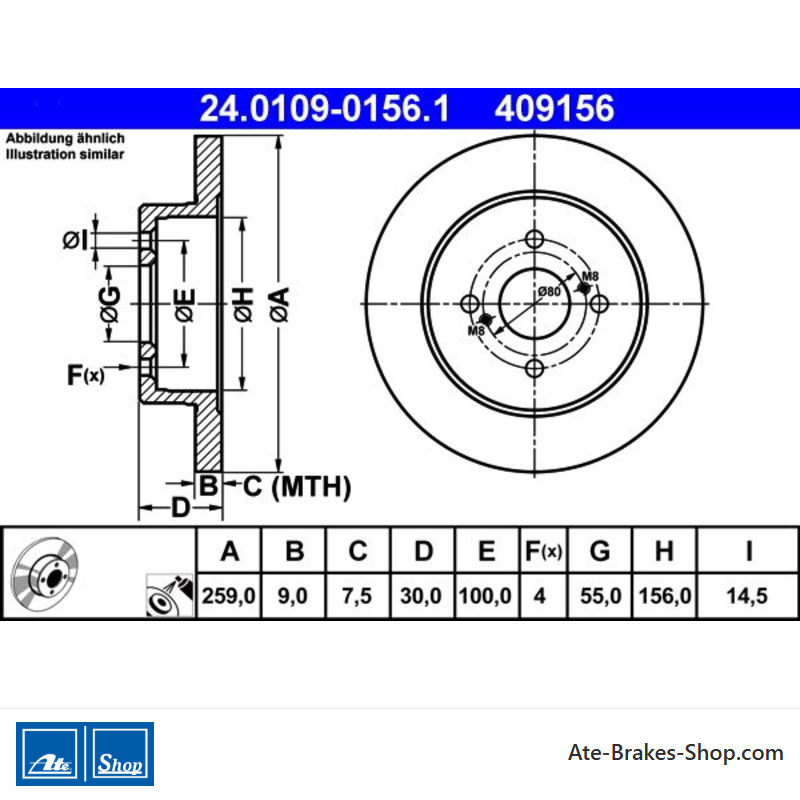

Specification of ATE 24.0109-0156.1 / 240109-01561 / 24010901561:
| OE Number | Reference info |
| TOYOTA 42431-52080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| ASTON MARTIN 42431-52080 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ASTON MARTIN CYGNET Fitting Position Rear Axle | 2011-04 - 2013-10 | 72 | 98 | 1329 | Hatchback |
| TOYOTA IQ (_J1_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2009-01 - 2015-12 | 50 | 68 | 998 | Hatchback |
| TOYOTA IQ (_J1_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2009-01 - 2015-12 | 72 | 98 | 1329 | Hatchback |
| TOYOTA IQ (_J1_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2009-01 - 2015-12 | 66 | 90 | 1364 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country Japan Fitting Position Rear Axle | 2005-08 - 2011-12 | 51 | 69 | 998 | Hatchback |
| TOYOTA YARIS (_P9_) Vehicle Production Country Japan Fitting Position Rear Axle | 2006-01 - 2011-12 | 51 | 69 | 998 | Hatchback |
| TOYOTA YARIS (_P9_) Construction Year to 201108 Vehicle Production Country Japan Fitting Position Rear Axle | 2007-01 - 2011-12 | 98 | 133 | 1798 | Hatchback |
| TOYOTA YARIS / VIOS Saloon (_P9_) Fitting Position Rear Axle | 2005-09 - 2013-10 | 64 | 87 | 1298 | Saloon |
24.0109-0156.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Aston Martin
Toyota - Handelsnummer
- 409156
- Herkunftsland
- Tschechien
- Höhe
- 30,3
- Außendurchmesser [mm]
- 259,0
- Bremsscheibendicke [mm]
- 9,0
- Bremsscheibentyp
- Solide
- Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 100,0
- Zentrierungsdurchmesser [mm]
- 55,0
- Innendurchmesser [mm]
- 156,0
- Bohrdurchmesser [mm]
- 14,5
- Mindestdicke [mm]
- 7,5
Spezifische Referenzen
- ean13
- 4006633315760
- Hersteller-Teilenummer (MPN)
- 2401090156102
ATE 24.0109-0156.1
(240109-01561)
- Außendurchmesser [mm]: 259,0
- Innendurchmesser [mm]: 156,0
- Bremsscheibendicke [mm]: 9,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 409156
