2 pieces of ATE original Brake Disk (24010901741) for Volkswagen (VW)
€72.60
(tax incl.)
€60.00 tax excl.
Part-number:
ATE 24.0109-0174.1
(240109-01741)
- Outer Diameter [mm]: 232,0
- Inner Diameter [mm]: 123,8
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 409174
Logistical information:
- Ean Code: 4006633390255
- Weight: 5.14kg
Specification of ATE 24.0109-0174.1 / 240109-01741 / 24010901741:
| OE Number | Reference info |
| VAG 1JE 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 1JE615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW POLO IV (9N_, 9A_) for PR number 1KK Fitting Position Rear Axle | 2002-01 - 2007-05 | 40 | 54 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2007-05 - 2009-11 | 44 | 60 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2007-07 | 47 | 64 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2007-05 - 2009-11 | 51 | 69 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2008-05 | 55 | 75 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2006-05 - 2009-11 | 59 | 80 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2006-05 - 2009-11 | 60 | 82 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KK Fitting Position Rear Axle | 2002-02 - 2006-07 | 63 | 86 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2008-05 | 74 | 101 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2006-05 - 2009-11 | 77 | 105 | 1598 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2005-09 - 2009-11 | 110 | 150 | 1781 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200606 Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2006-05 - 2009-11 | 132 | 180 | 1781 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KK Fitting Position Rear Axle | 2005-04 - 2009-11 | 51 | 70 | 1422 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2005-06 | 55 | 75 | 1422 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2005-04 - 2009-11 | 59 | 80 | 1422 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2009-11 | 47 | 64 | 1896 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2009-11 | 74 | 101 | 1896 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2003-11 - 2009-11 | 96 | 130 | 1896 | Hatchback |
| VW POLO IV Saloon (9N2, 9N4) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2003-07 - 2010-12 | 74 | 101 | 1896 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2002-11 - 2012-04 | 55 | 75 | 1390 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) for PR number 1KK Fitting Position Rear Axle | 2003-11 - 2005-06 | 74 | 101 | 1390 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) Construction Year from 200605 Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2002-09 - | 74 | 101 | 1598 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) for PR number 1KK Fitting Position Rear Axle | 2003-07 - 2005-06 | 55 | 75 | 1422 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2002-09 - 2012-04 | 47 | 64 | 1896 | Saloon |
| VW POLO Estate Van (6V5) for PR number 1KK Fitting Position Rear Axle | 1995-12 - 1999-08 | 47 | 64 | 1896 | Estate Van |
24.0109-0174.1

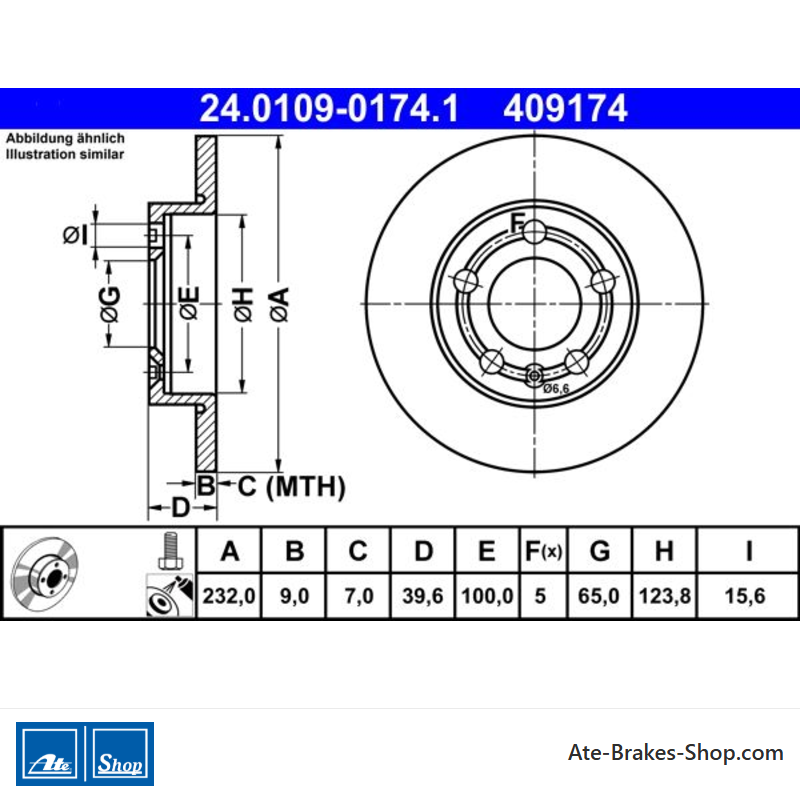

Data sheet
- Article Status
- Orderable
- Car Brand
- Volkswagen (VW)
- Trade Number
- 409174
- Country Of Origin
- QU
- Additional Info
- with bolts/screws
- Height
- 39,6
- Outer Diameter [mm]
- 232,0
- Brake Disc Thickness [mm]
- 9,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 65,0
- Inner Diameter [mm]
- 123,8
- Bore Diameter [mm]
- 15,6
- Minimum Thickness [mm]
- 7,0
Specific References
- EAN13
- 4006633390255
- MPN
- 2401090174102
ATE 24.0109-0174.1
(240109-01741)
- Outer Diameter [mm]: 232,0
- Inner Diameter [mm]: 123,8
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 409174
