ATE Disco de freno original de 2 piezas (24010901741) para Volkswagen (VW)
72,60 €
(impuestos inc.)
60,00 € fiscales excl.
Número de parte:
ATE 24.0109-0174.1
(240109-01741)
- Diámetro exterior [mm]: 232,0
- Diámetro interior [mm]: 123,8
- Grosor del disco de freno [mm]: 9,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 409174
Información logística:
- Código Ean: 4006633390255
- Peso: 5.14kg
Specification of ATE 24.0109-0174.1 / 240109-01741 / 24010901741:
| OE Number | Reference info |
| VAG 1JE 615 601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 1JE615601 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW POLO IV (9N_, 9A_) for PR number 1KK Fitting Position Rear Axle | 2002-01 - 2007-05 | 40 | 54 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2007-05 - 2009-11 | 44 | 60 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2007-07 | 47 | 64 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2007-05 - 2009-11 | 51 | 69 | 1198 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2008-05 | 55 | 75 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2006-05 - 2009-11 | 59 | 80 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2006-05 - 2009-11 | 60 | 82 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KK Fitting Position Rear Axle | 2002-02 - 2006-07 | 63 | 86 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2008-05 | 74 | 101 | 1390 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2006-05 - 2009-11 | 77 | 105 | 1598 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2005-09 - 2009-11 | 110 | 150 | 1781 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200606 Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2006-05 - 2009-11 | 132 | 180 | 1781 | Hatchback |
| VW POLO IV (9N_, 9A_) for PR number 1KK Fitting Position Rear Axle | 2005-04 - 2009-11 | 51 | 70 | 1422 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2005-06 | 55 | 75 | 1422 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2005-04 - 2009-11 | 59 | 80 | 1422 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2009-11 | 47 | 64 | 1896 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year from 200111 Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2001-10 - 2009-11 | 74 | 101 | 1896 | Hatchback |
| VW POLO IV (9N_, 9A_) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2003-11 - 2009-11 | 96 | 130 | 1896 | Hatchback |
| VW POLO IV Saloon (9N2, 9N4) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2003-07 - 2010-12 | 74 | 101 | 1896 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2002-11 - 2012-04 | 55 | 75 | 1390 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) for PR number 1KK Fitting Position Rear Axle | 2003-11 - 2005-06 | 74 | 101 | 1390 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) Construction Year from 200605 Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2002-09 - | 74 | 101 | 1598 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) for PR number 1KK Fitting Position Rear Axle | 2003-07 - 2005-06 | 55 | 75 | 1422 | Saloon |
| VW POLO IV Saloon (9A4, 9A2, 9N2, 9A6) Construction Year to 200905 for PR number 1KK Fitting Position Rear Axle | 2002-09 - 2012-04 | 47 | 64 | 1896 | Saloon |
| VW POLO Estate Van (6V5) for PR number 1KK Fitting Position Rear Axle | 1995-12 - 1999-08 | 47 | 64 | 1896 | Estate Van |

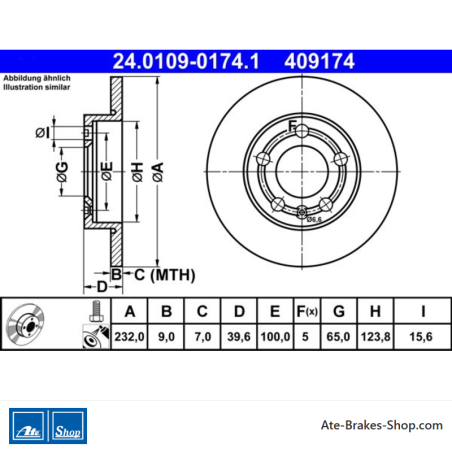

24.0109-0174.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Volkswagen (VW)
- Número de Comercio
- 409174
- País de origen
- QU
- Información adicional
- con tornillos/tornillos
- Altura
- 39,6
- Diámetro exterior [mm]
- 232,0
- Grosor del disco de freno [mm]
- 9,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 100,0
- Diámetro de centrado [mm]
- 65,0
- Diámetro interior [mm]
- 123,8
- Diámetro del diámetro del diámetro [mm]
- 15,6
- Espesor mínimo [mm]
- 7,0
Referencias específicas
- ean13
- 4006633390255
- MPN
- 2401090174102
ATE 24.0109-0174.1
(240109-01741)
- Diámetro exterior [mm]: 232,0
- Diámetro interior [mm]: 123,8
- Grosor del disco de freno [mm]: 9,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 409174
