ATE Original 2 Pieces Brake Disk (24010901861) for Suzuki
search
  • ATE Original 2 Pieces Brake Disk (24010901861) for Suzuki
  • ATE Original 2 Pieces Brake Disk (24010901861) for Suzuki
  • ATE Original 2 Pieces Brake Disk (24010901861) for Suzuki

2 pieces of ATE original Brake Disk (24010901861) for Suzuki

€68.97 (tax incl.)

€57.00 tax excl.

Part-number:

ATE 24.0109-0186.1
(240109-01861)

  • Outer Diameter [mm]: 228,0
  • Inner Diameter [mm]: 127,0
  • Brake Disc Thickness [mm]: 9,0
  • Number of Bolt Holes: 4
  • 2 pieces of Brake Disc
  • Trade Number: 409186
Logistical information:
62,0Click here for detailed information.
  • Ean Code: 4006633486781
  • Weight: 5.23kg
Quantity

Specification of ATE 24.0109-0186.1 / 240109-01861 / 24010901861:

OE NumberReference info
SUZUKI 55611-52R00Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
SUZUKI 55611-52R01Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
SUZUKI SWIFT V (AZ)

Fitting Position Rear Axle		2017-04 -82111998Hatchback
SUZUKI SWIFT V (AZ)

Fitting Position Rear Axle		2017-04 -82111998Hatchback
SUZUKI SWIFT V (AZ)

Fitting Position Rear Axle		2017-04 -66901242Hatchback
SUZUKI SWIFT V (AZ)

Fitting Position Rear Axle		2017-04 -66901242Hatchback
SUZUKI SWIFT V (AZ)

Fitting Position Rear Axle		2017-04 -66901242Hatchback
SUZUKI SWIFT V (AZ)

Fitting Position Rear Axle		2017-04 -66901242Hatchback
SUZUKI SWIFT V (AZ)

Fitting Position Rear Axle		2020-06 -61831197Hatchback
SUZUKI SWIFT V (AZ)

Fitting Position Rear Axle		2020-06 -61831197Hatchback

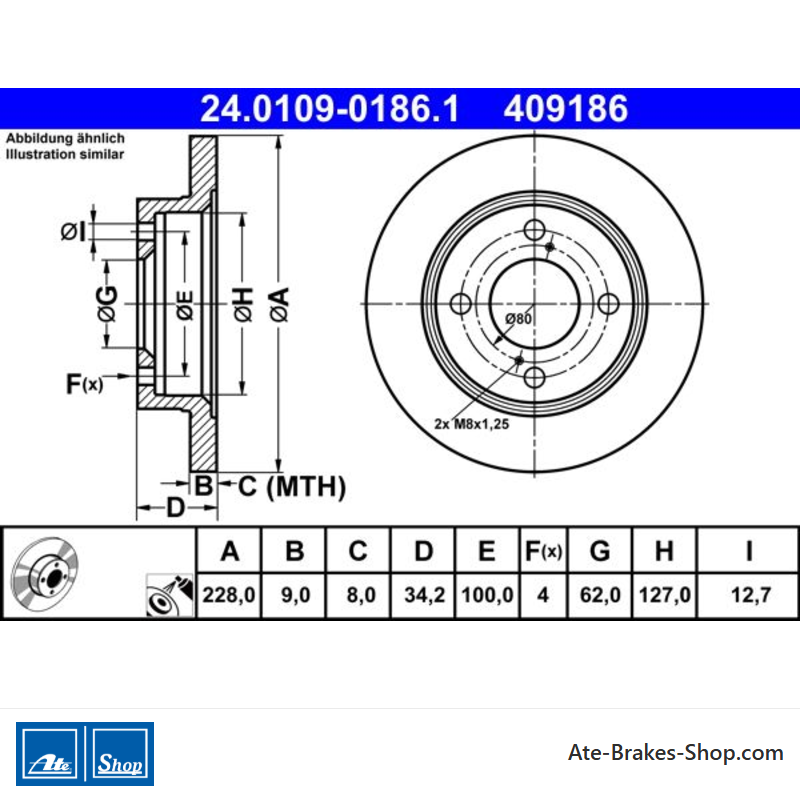

24.0109-0186.1

Data sheet

Article Status
Orderable
Car Brand
Suzuki
Trade Number
409186
Country Of Origin
Italy
Height
34,2
Outer Diameter [mm]
228,0
Brake Disc Thickness [mm]
9,0
Brake Disc Type
solid
Surface
Coated
Number of Bolt Holes
4
Bolt Hole Diameter [mm]
100,0
Centering Diameter [mm]
62,0
Inner Diameter [mm]
127,0
Bore Diameter [mm]
12,7
Minimum Thickness [mm]
8,0

Specific References

EAN13
4006633486781
MPN
2401090186102
