ATE Originele 2-delige remschijf (24010901861) voor Suzuki
€ 68,97
(incl. btw)
€ 57,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0186.1
(240109-01861)
- Buitendiameter [mm]: 228,0
- Binnendiameter [mm]: 127,0
- Remschijfdikte [mm]: 9,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409186
Logistieke informatie:
- Ean Code: 4006633486781
- Gewicht: 5.23kg
Specification of ATE 24.0109-0186.1 / 240109-01861 / 24010901861:
| OE Number | Reference info |
| SUZUKI 55611-52R00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-52R01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT V (AZ) Fitting Position Rear Axle | 2017-04 - | 82 | 111 | 998 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Rear Axle | 2017-04 - | 82 | 111 | 998 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Rear Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Rear Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Rear Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Rear Axle | 2017-04 - | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Rear Axle | 2020-06 - | 61 | 83 | 1197 | Hatchback |
| SUZUKI SWIFT V (AZ) Fitting Position Rear Axle | 2020-06 - | 61 | 83 | 1197 | Hatchback |

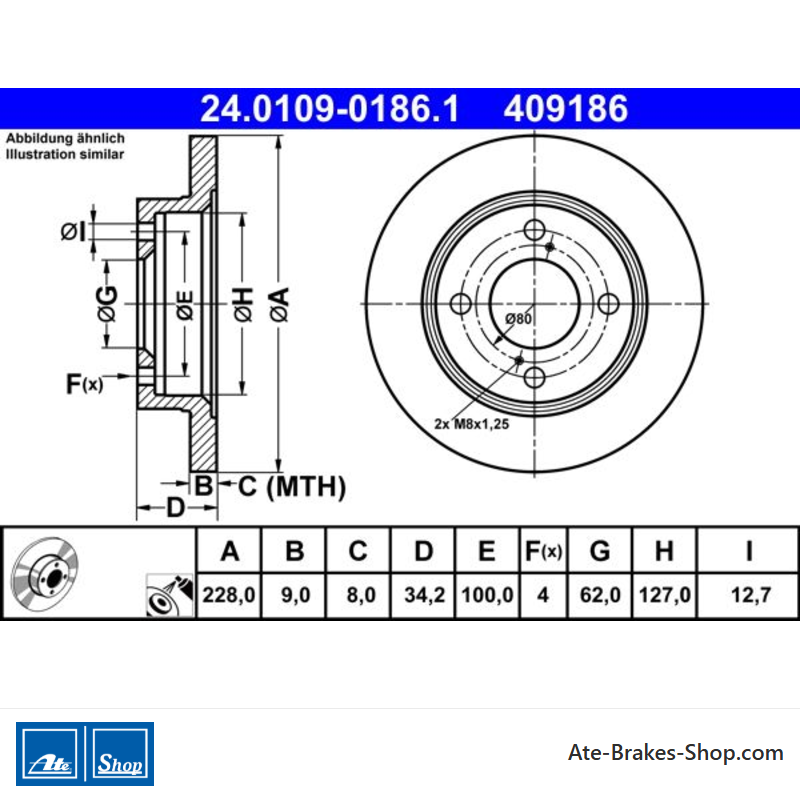

24.0109-0186.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Suzuki
- Handelsnummer
- 409186
- Land van Herkomst
- Italië
- Hoogte
- 34,2
- Buitendiameter [mm]
- 228,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 127,0
- Bordiameter [mm]
- 12,7
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633486781
- MPN
- 2401090186102
ATE 24.0109-0186.1
(240109-01861)
- Buitendiameter [mm]: 228,0
- Binnendiameter [mm]: 127,0
- Remschijfdikte [mm]: 9,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409186
