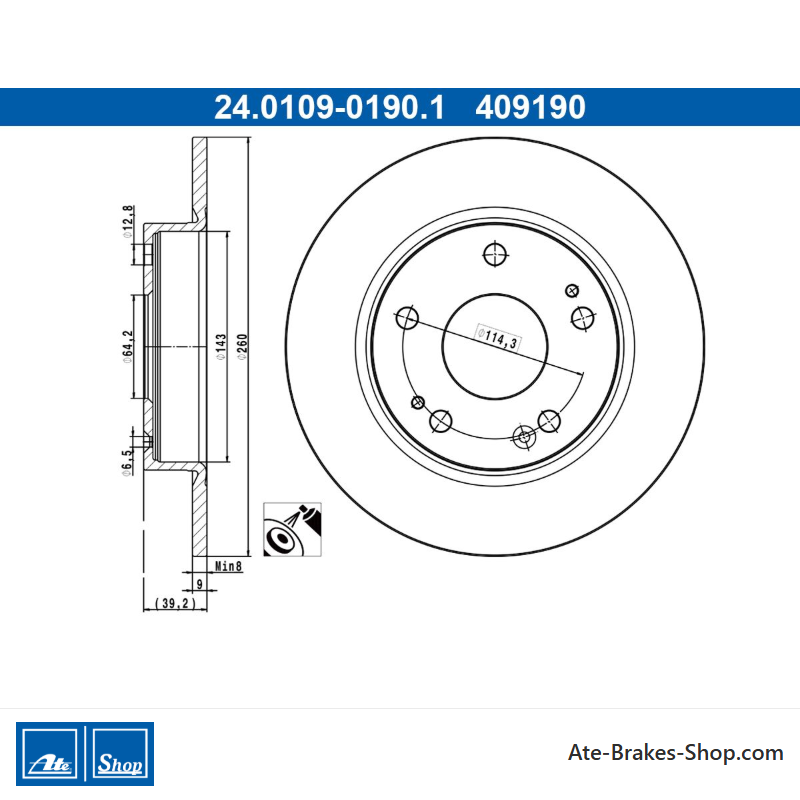

ATE Original 2 Pieces Brake Disk (24010901901) for Honda
€72.60
(tax incl.)
€60.00 tax excl.
Part-number:
ATE 24.0109-0190.1
(240109-01901)
- Outer Diameter [mm]: 260,0
- Inner Diameter [mm]: 143,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 409190
Logistical information:
- Ean Code: 4006633506991
- Weight: 6.88kg
Specification of ATE 24.0109-0190.1 / 240109-01901 / 24010901901:
| OE Number | Reference info |
| HONDA 42510-TBA-A00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-TEA-T01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CIVIC X Saloon (FC_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2018-07 - 2022-12 | 93 | 126 | 988 | Saloon |
| HONDA CIVIC X Saloon (FC_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2019-01 - 2022-12 | 92 | 125 | 1597 | Saloon |
| HONDA CIVIC X Saloon (FC_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2018-05 - 2022-12 | 88 | 120 | 1597 | Saloon |
| HONDA CIVIC X Hatchback (FC_, FK_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2017-02 - 2022-12 | 95 | 129 | 988 | Hatchback |
| HONDA CIVIC X Hatchback (FC_, FK_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2018-07 - 2022-12 | 93 | 126 | 988 | Hatchback |
| HONDA CIVIC X Hatchback (FC_, FK_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2018-01 - 2022-12 | 88 | 120 | 1597 | Hatchback |
| HONDA CIVIC XI Saloon (FE) Fitting Position Rear Axle | 2021-11 - | 95 | 129 | 1498 | Saloon |
24.0109-0190.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Honda
- Trade Number
- 409190
- Country Of Origin
- China
- Height
- 39,2
- Outer Diameter [mm]
- 260,0
- Brake Disc Thickness [mm]
- 9,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 64,2
- Inner Diameter [mm]
- 143,0
- Bore Diameter [mm]
- 12,8
- Minimum Thickness [mm]
- 8,0
Specific References
- EAN13
- 4006633506991
- MPN
- 2401090190102
ATE 24.0109-0190.1
(240109-01901)
- Outer Diameter [mm]: 260,0
- Inner Diameter [mm]: 143,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 5
- 2 Pieces of Brake Disc
- Trade Number: 409190
