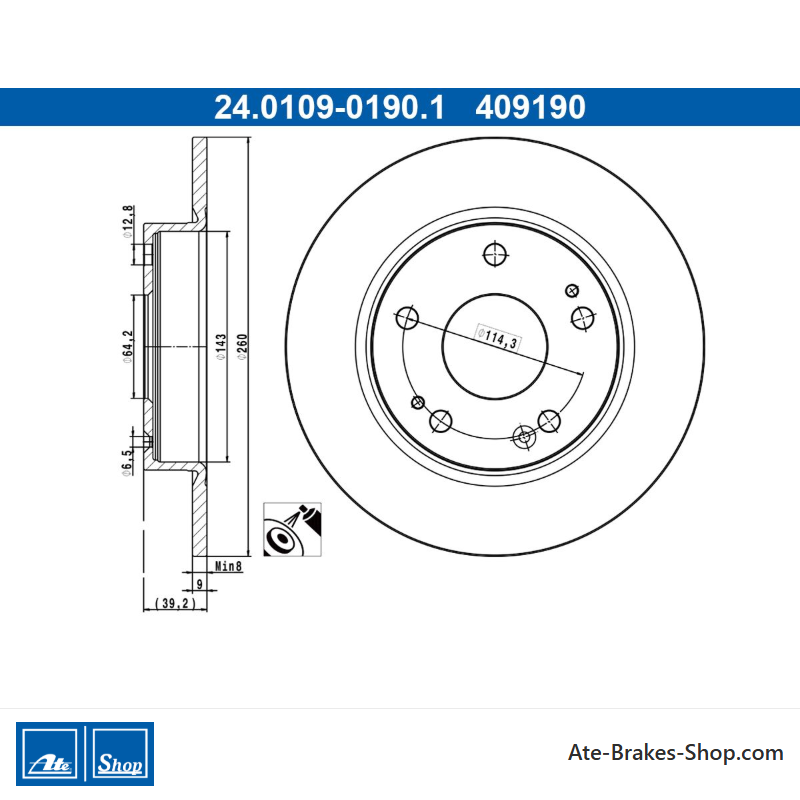

ATE Originele 2-delige remschijf (24010901901) voor Honda
€ 72,60
(incl. btw)
€ 60,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0190.1
(240109-01901)
- Buitendiameter [mm]: 260,0
- Binnendiameter [mm]: 143,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409190
Logistieke informatie:
- Ean Code: 4006633506991
- Gewicht: 6.88kg
Specification of ATE 24.0109-0190.1 / 240109-01901 / 24010901901:
| OE Number | Reference info |
| HONDA 42510-TBA-A00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-TEA-T01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CIVIC X Saloon (FC_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2018-07 - 2022-12 | 93 | 126 | 988 | Saloon |
| HONDA CIVIC X Saloon (FC_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2019-01 - 2022-12 | 92 | 125 | 1597 | Saloon |
| HONDA CIVIC X Saloon (FC_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2018-05 - 2022-12 | 88 | 120 | 1597 | Saloon |
| HONDA CIVIC X Hatchback (FC_, FK_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2017-02 - 2022-12 | 95 | 129 | 988 | Hatchback |
| HONDA CIVIC X Hatchback (FC_, FK_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2018-07 - 2022-12 | 93 | 126 | 988 | Hatchback |
| HONDA CIVIC X Hatchback (FC_, FK_) Fitting Position Rear Axle Vehicle Equipment Line/Trim Level S | 2018-01 - 2022-12 | 88 | 120 | 1597 | Hatchback |
| HONDA CIVIC XI Saloon (FE) Fitting Position Rear Axle | 2021-11 - | 95 | 129 | 1498 | Saloon |
24.0109-0190.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 409190
- Land van Herkomst
- China
- Hoogte
- 39,2
- Buitendiameter [mm]
- 260,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 64,2
- Binnendiameter [mm]
- 143,0
- Bordiameter [mm]
- 12,8
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633506991
- MPN
- 2401090190102
ATE 24.0109-0190.1
(240109-01901)
- Buitendiameter [mm]: 260,0
- Binnendiameter [mm]: 143,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409190
