2 pieces of ATE original Brake Disk (24010907111) for Toyota
€90.75
(tax incl.)
€75.00 tax excl.
Part-number:
ATE 24.0109-0711.1
(240109-07111)
- Outer Diameter [mm]: 269,0
- Inner Diameter [mm]: 173,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 409711
Logistical information:
- Ean Code: 4006633229609
- Weight: 7.58kg
Specification of ATE 24.0109-0711.1 / 240109-07111 / 24010907111:
| OE Number | Reference info |
| TOYOTA 42431-20390 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-47030 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-20420 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA CELICA Coupe (_T23_) Construction Year from 199911 Fitting Position Rear Axle | 1999-08 - 2005-07 | 105 | 143 | 1794 | Coupe |
| TOYOTA CELICA Coupe (_T23_) Construction Year from 199911 Fitting Position Rear Axle | 1999-08 - 2005-09 | 141 | 192 | 1796 | Coupe |
| TOYOTA PRIUS Liftback (_W2_) Fitting Position Rear Axle | 2003-09 - 2009-12 | 82 | 112 | 1497 | Hatchback |

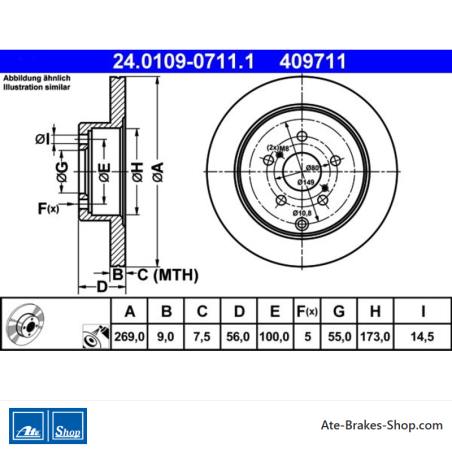

24.0109-0711.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Toyota
- Trade Number
- 409711
- Country Of Origin
- China
- Height
- 56,0
- Outer Diameter [mm]
- 269,0
- Brake Disc Thickness [mm]
- 9,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 55,0
- Inner Diameter [mm]
- 173,0
- Bore Diameter [mm]
- 14,5
- Minimum Thickness [mm]
- 7,5
Specific References
- EAN13
- 4006633229609
- MPN
- 2401090711102
ATE 24.0109-0711.1
(240109-07111)
- Outer Diameter [mm]: 269,0
- Inner Diameter [mm]: 173,0
- Brake Disc Thickness [mm]: 9,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 409711
