ATE Originele 2-delige remschijf (24010907111) voor Toyota
€ 90,75
(incl. btw)
€ 75,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0711.1
(240109-07111)
- Buitendiameter [mm]: 269,0
- Binnendiameter [mm]: 173,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409711
Logistieke informatie:
- Ean Code: 4006633229609
- Gewicht: 7.58kg
Specification of ATE 24.0109-0711.1 / 240109-07111 / 24010907111:
| OE Number | Reference info |
| TOYOTA 42431-20390 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-47030 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-20420 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA CELICA Coupe (_T23_) Construction Year from 199911 Fitting Position Rear Axle | 1999-08 - 2005-07 | 105 | 143 | 1794 | Coupe |
| TOYOTA CELICA Coupe (_T23_) Construction Year from 199911 Fitting Position Rear Axle | 1999-08 - 2005-09 | 141 | 192 | 1796 | Coupe |
| TOYOTA PRIUS Liftback (_W2_) Fitting Position Rear Axle | 2003-09 - 2009-12 | 82 | 112 | 1497 | Hatchback |

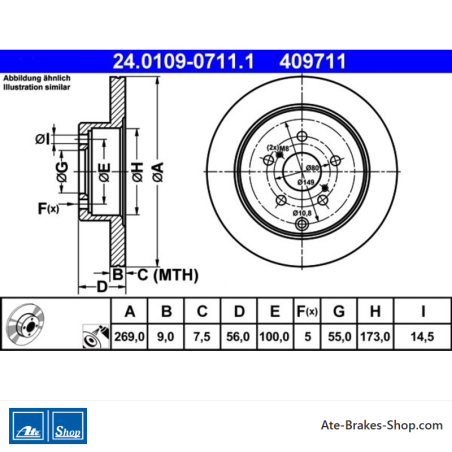

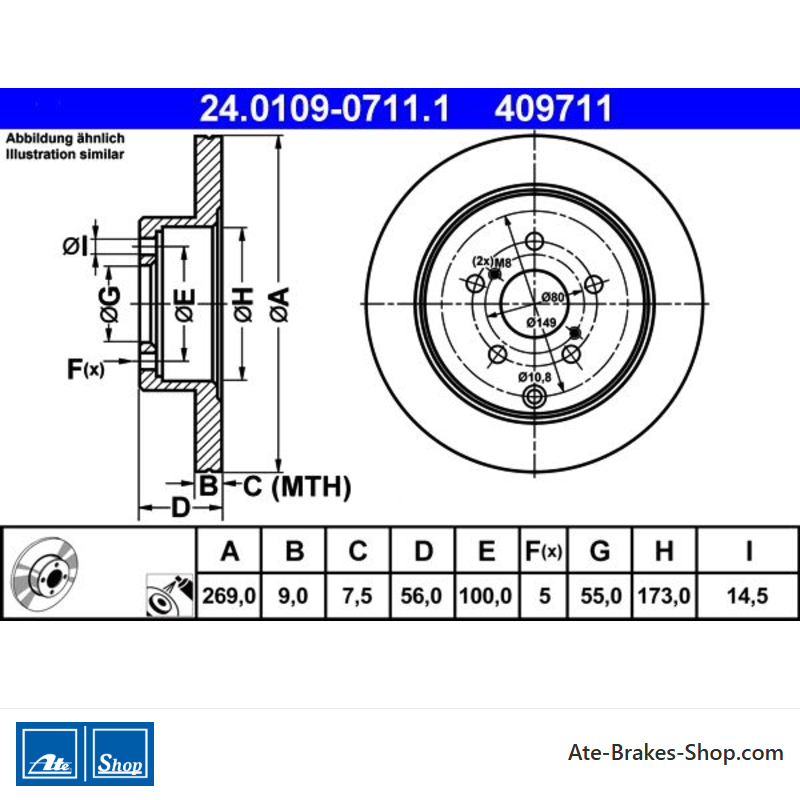

24.0109-0711.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
- Handelsnummer
- 409711
- Land van Herkomst
- China
- Hoogte
- 56,0
- Buitendiameter [mm]
- 269,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 55,0
- Binnendiameter [mm]
- 173,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 7,5
Specifieke referenties
- ean13
- 4006633229609
- MPN
- 2401090711102
ATE 24.0109-0711.1
(240109-07111)
- Buitendiameter [mm]: 269,0
- Binnendiameter [mm]: 173,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409711
