2 pieces of ATE original Brake Disk (24011003781) for Fiat
€87.12
(tax incl.)
€72.00 tax excl.
Part-number:
ATE 24.0110-0378.1
(240110-03781)
- Outer Diameter [mm]: 251,0
- Inner Diameter [mm]: 128,0
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410378
Logistical information:
- Ean Code: 4006633408578
- Weight: 7.08kg
Specification of ATE 24.0110-0378.1 / 240110-03781 / 24011003781:
| OE Number | Reference info |
| FIAT 51808471 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51885409 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52048984 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52048985 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52067389 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52067390 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - | 77 | 105 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2017-04 - | 59 | 80 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2013-03 - | 63 | 86 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - | 70 | 95 | 1368 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - | 62 | 84 | 1248 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2014-06 - | 70 | 95 | 1248 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - 2018-05 | 77 | 105 | 1598 | Hatchback |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 74 | 101 | 999 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - | 70 | 95 | 1368 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2022-03 - | 96 | 131 | 1469 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - 2020-10 | 81 | 110 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - 2020-10 | 70 | 95 | 1248 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2016-09 - 2020-10 | 84 | 114 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - 2020-10 | 88 | 120 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 96 | 131 | 1598 | Saloon |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 74 | 101 | 999 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2022-03 - | 96 | 131 | 1469 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-07 - 2020-10 | 81 | 110 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1248 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-09 - 2020-10 | 84 | 114 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 96 | 131 | 1598 | Hatchback |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 74 | 101 | 999 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 70 | 95 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2022-03 - | 96 | 131 | 1469 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-07 - 2020-10 | 81 | 110 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1248 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-09 - 2020-10 | 84 | 114 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 96 | 131 | 1598 | Estate |

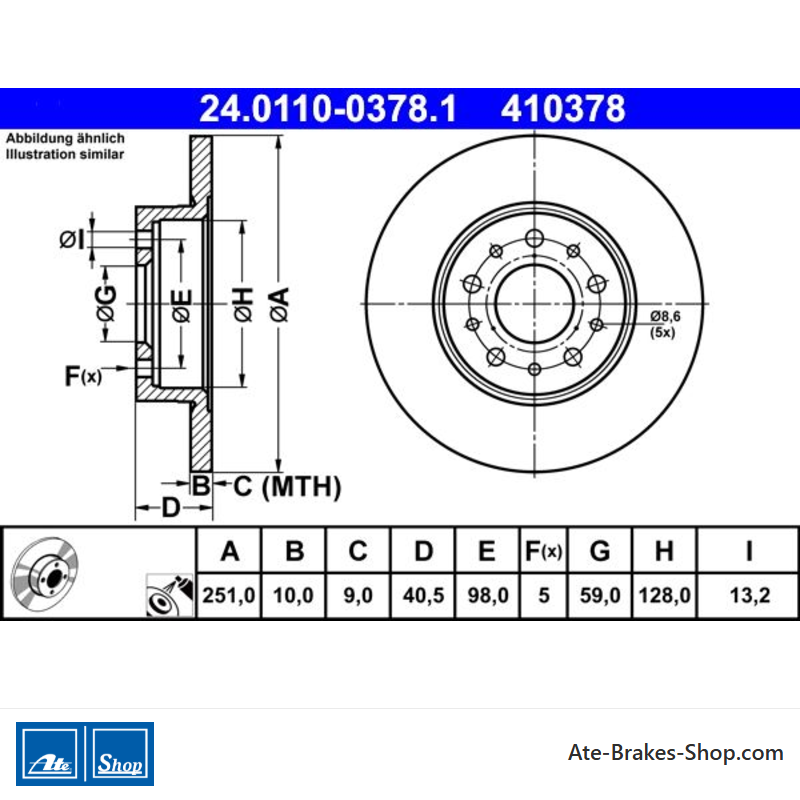

24.0110-0378.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Fiat
- Trade Number
- 410378
- Country Of Origin
- Czechia
- Height
- 40,5
- Outer Diameter [mm]
- 251,0
- Brake Disc Thickness [mm]
- 10,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 98,0
- Centering Diameter [mm]
- 59,0
- Inner Diameter [mm]
- 128,0
- Bore Diameter [mm]
- 13,2
- Minimum Thickness [mm]
- 9,0
Specific References
- EAN13
- 4006633408578
- MPN
- 2401100378102
ATE 24.0110-0378.1
(240110-03781)
- Outer Diameter [mm]: 251,0
- Inner Diameter [mm]: 128,0
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 410378
