ATE Disco de freno original de 2 piezas (24011003781) para Fiat
87,12 €
(impuestos inc.)
72,00 € fiscales excl.
Número de parte:
ATE 24.0110-0378.1
(240110-03781)
- Diámetro exterior [mm]: 251,0
- Diámetro interior [mm]: 128,0
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 410378
Información logística:
- Código Ean: 4006633408578
- Peso: 7.08kg
Specification of ATE 24.0110-0378.1 / 240110-03781 / 24011003781:
| OE Number | Reference info |
| FIAT 51808471 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 51885409 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52048984 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52048985 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52067389 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 52067390 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - | 77 | 105 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2017-04 - | 59 | 80 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2013-03 - | 63 | 86 | 875 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - | 70 | 95 | 1368 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - | 62 | 84 | 1248 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2014-06 - | 70 | 95 | 1248 | Hatchback |
| FIAT 500L (351_, 352_) Fitting Position Rear Axle | 2012-09 - 2018-05 | 77 | 105 | 1598 | Hatchback |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 74 | 101 | 999 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - | 70 | 95 | 1368 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2022-03 - | 96 | 131 | 1469 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - 2020-10 | 81 | 110 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - 2020-10 | 70 | 95 | 1248 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2016-09 - 2020-10 | 84 | 114 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2015-10 - 2020-10 | 88 | 120 | 1598 | Saloon |
| FIAT TIPO Saloon (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 96 | 131 | 1598 | Saloon |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 74 | 101 | 999 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1368 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2022-03 - | 96 | 131 | 1469 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-07 - 2020-10 | 81 | 110 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1248 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-09 - 2020-10 | 84 | 114 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1598 | Hatchback |
| FIAT TIPO Hatchback (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 96 | 131 | 1598 | Hatchback |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 74 | 101 | 999 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 70 | 95 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1368 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2022-03 - | 96 | 131 | 1469 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-07 - 2020-10 | 81 | 110 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - | 70 | 95 | 1248 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-09 - 2020-10 | 84 | 114 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2016-03 - 2020-10 | 88 | 120 | 1598 | Estate |
| FIAT TIPO Estate (356_, 357_) Fitting Position Rear Axle | 2020-11 - | 96 | 131 | 1598 | Estate |

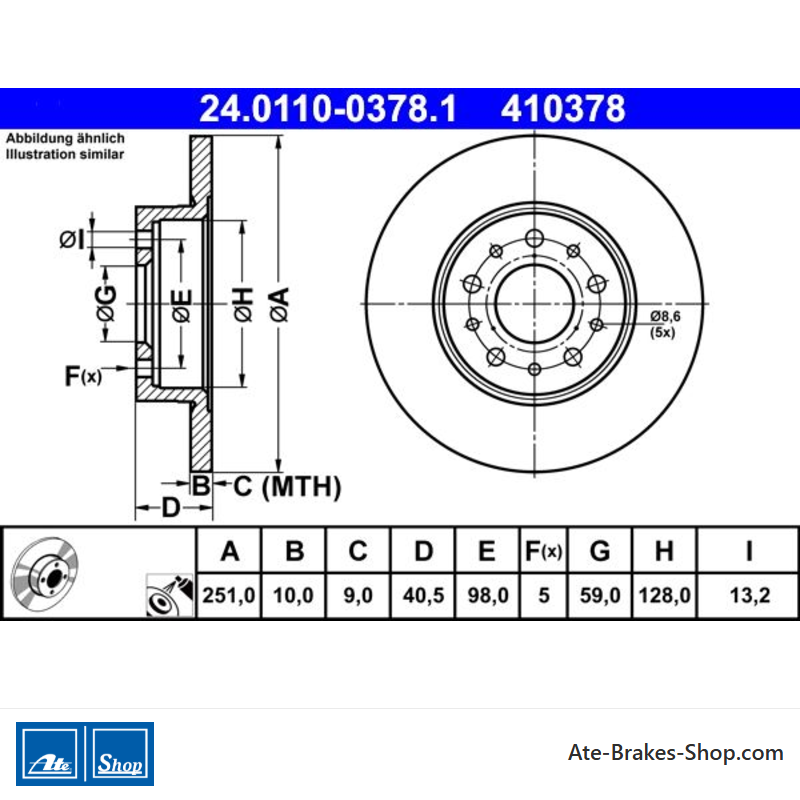

24.0110-0378.1
Hoja técnica
- Estado del artículo
- Ordenable
- Marca de automóviles
- Fiat
- Número de Comercio
- 410378
- País de origen
- Chequia
- Altura
- 40,5
- Diámetro exterior [mm]
- 251,0
- Grosor del disco de freno [mm]
- 10,0
- Tipo de disco de freno
- sólido
- Superficie
- Revestido
- Número de agujeros para los tornillos
- 5
- Diámetro del agujero del perno [mm]
- 98,0
- Diámetro de centrado [mm]
- 59,0
- Diámetro interior [mm]
- 128,0
- Diámetro del diámetro del diámetro [mm]
- 13,2
- Espesor mínimo [mm]
- 9,0
Referencias específicas
- ean13
- 4006633408578
- MPN
- 2401100378102
ATE 24.0110-0378.1
(240110-03781)
- Diámetro exterior [mm]: 251,0
- Diámetro interior [mm]: 128,0
- Grosor del disco de freno [mm]: 10,0
- Número de agujeros de perno: 5
- 2 piezas de disco de freno
- Número de intercambio: 410378
