2 pieces of ATE original Brake Disk (24011004221) for Mini
€87.12
(tax incl.)
€72.00 tax excl.
Part-number:
ATE 24.0110-0422.1
(240110-04221)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 162,5
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 410422
Logistical information:
- Ean Code: 4006633497640
- Weight: 7.68kg
Specification of ATE 24.0110-0422.1 / 240110-04221 / 24011004221:
| OE Number | Reference info |
| MINI 34 21 6 784 389 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34216784389 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MINI MINI (R56) Construction Year from 200803 Fitting Position Rear Axle | 2006-11 - 2010-02 | 141 | 192 | 1598 | Hatchback |
| MINI MINI (R56) Construction Year from 200803 Fitting Position Rear Axle | 2007-11 - 2013-11 | 155 | 211 | 1598 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2012-09 - 2013-11 | 160 | 218 | 1598 | Hatchback |
| MINI MINI Convertible (R57) Construction Year from 200903 Construction Year to 201406 Fitting Position Rear Axle | 2008-08 - 2015-05 | 155 | 211 | 1598 | Convertible |
| MINI MINI Roadster (R59) Construction Year from 201202 Fitting Position Rear Axle | 2011-11 - 2015-04 | 155 | 211 | 1598 | Convertible |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2008-10 - 2010-02 | 141 | 192 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Construction Year from 200803 Fitting Position Rear Axle | 2007-11 - 2014-06 | 155 | 211 | 1598 | Estate |
| MINI MINI Coupe (R58) Construction Year from 201110 Fitting Position Rear Axle | 2010-12 - 2015-05 | 155 | 211 | 1598 | Coupe |

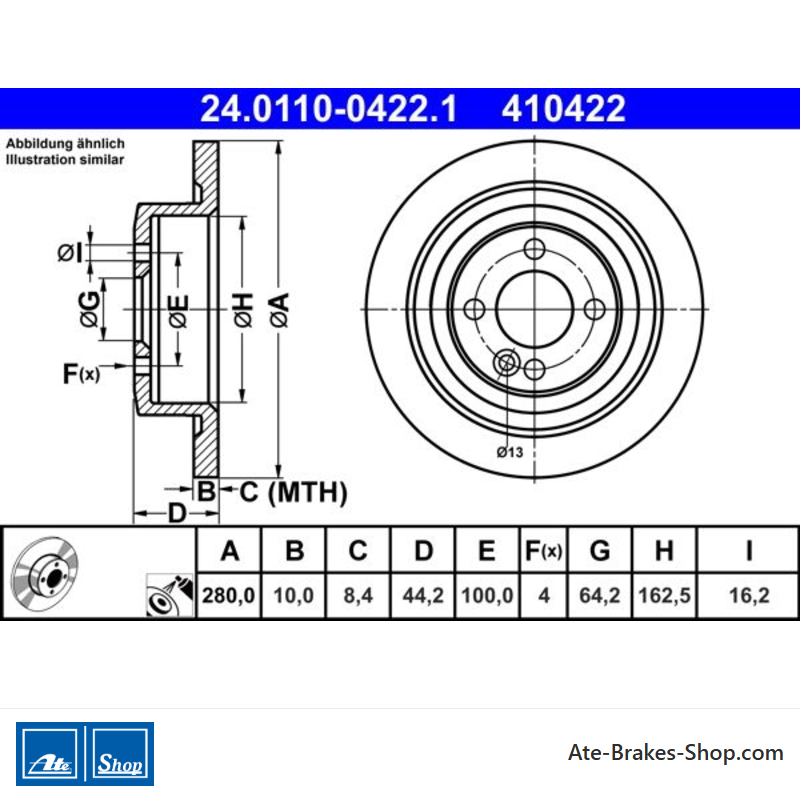

24.0110-0422.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Mini
- Trade Number
- 410422
- Country Of Origin
- Italy
- Height
- 44,2
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 10,0
- Brake Disc Type
- solid
- Processing
- High-carbon
- Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 64,2
- Inner Diameter [mm]
- 162,5
- Bore Diameter [mm]
- 16,2
- Minimum Thickness [mm]
- 8,4
Specific References
- EAN13
- 4006633497640
- MPN
- 2401100422102
ATE 24.0110-0422.1
(240110-04221)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 162,5
- Brake Disc Thickness [mm]: 10,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 410422
