ATE Originele 2-delige remschijf (24011004221) voor Mini
€ 87,12
(incl. btw)
€ 72,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0422.1
(240110-04221)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 162,5
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410422
Logistieke informatie:
- Ean Code: 4006633497640
- Gewicht: 7.68kg

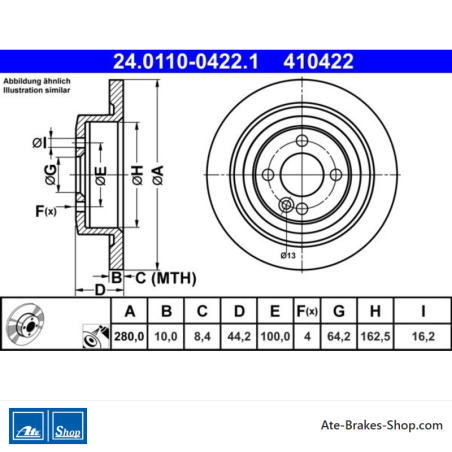

Specification of ATE 24.0110-0422.1 / 240110-04221 / 24011004221:
| OE Number | Reference info |
| MINI 34 21 6 784 389 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MINI 34216784389 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MINI MINI (R56) Construction Year from 200803 Fitting Position Rear Axle | 2006-11 - 2010-02 | 141 | 192 | 1598 | Hatchback |
| MINI MINI (R56) Construction Year from 200803 Fitting Position Rear Axle | 2007-11 - 2013-11 | 155 | 211 | 1598 | Hatchback |
| MINI MINI (R56) Fitting Position Rear Axle | 2012-09 - 2013-11 | 160 | 218 | 1598 | Hatchback |
| MINI MINI Convertible (R57) Construction Year from 200903 Construction Year to 201406 Fitting Position Rear Axle | 2008-08 - 2015-05 | 155 | 211 | 1598 | Convertible |
| MINI MINI Roadster (R59) Construction Year from 201202 Fitting Position Rear Axle | 2011-11 - 2015-04 | 155 | 211 | 1598 | Convertible |
| MINI MINI CLUBMAN (R55) Fitting Position Rear Axle | 2008-10 - 2010-02 | 141 | 192 | 1598 | Estate |
| MINI MINI CLUBMAN (R55) Construction Year from 200803 Fitting Position Rear Axle | 2007-11 - 2014-06 | 155 | 211 | 1598 | Estate |
| MINI MINI Coupe (R58) Construction Year from 201110 Fitting Position Rear Axle | 2010-12 - 2015-05 | 155 | 211 | 1598 | Coupe |
24.0110-0422.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mini
- Handelsnummer
- 410422
- Land van Herkomst
- Italië
- Hoogte
- 44,2
- Buitendiameter [mm]
- 280,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 64,2
- Binnendiameter [mm]
- 162,5
- Bordiameter [mm]
- 16,2
- Minimale dikte [mm]
- 8,4
Specifieke referenties
- ean13
- 4006633497640
- MPN
- 2401100422102
ATE 24.0110-0422.1
(240110-04221)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 162,5
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410422
