2 pieces of ATE original Brake Disk (24011007141) for Daewoo
€94.38
(tax incl.)
€78.00 tax excl.
Part-number:
ATE 24.0110-0714.1
(240110-07141)
- Outer Diameter [mm]: 258,0
- Inner Diameter [mm]: 168,0
- Brake Disc Thickness [mm]: 10,3
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 410714
Logistical information:
- Ean Code: 4006633292887
- Weight: 9.81kg
Specification of ATE 24.0110-0714.1 / 240110-07141 / 24011007141:
| OE Number | Reference info |
| CHEVROLET 96312560 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96312560 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAEWOO NUBIRA (J100) Construction Year to 200212 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2002-08 - 2003-07 | 76 | 103 | 1598 | Hatchback |
| DAEWOO NUBIRA (J100) Construction Year to 200212 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2002-08 - 2003-07 | 93 | 126 | 1998 | Hatchback |
| DAEWOO NUBIRA (J100) Construction Year from 199706 Construction Year to 199905 Fitting Position Rear Axle | 1997-05 - | 98 | 133 | 1998 | Hatchback |
| DAEWOO NUBIRA Wagon (J100) Construction Year to 200502 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-12 - | 76 | 103 | 1598 | Estate |
| DAEWOO NUBIRA Wagon (J100) Construction Year to 200502 Fitting Position Rear Axle | 2000-12 - | 93 | 126 | 1998 | Estate |
| DAEWOO NUBIRA Wagon (J100) Construction Year from 199706 Construction Year to 199905 Fitting Position Rear Axle | 1997-05 - | 98 | 133 | 1998 | Estate |
| DAEWOO NUBIRA Saloon (J100) Construction Year to 200502 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-07 - | 76 | 103 | 1598 | Saloon |
| DAEWOO NUBIRA Saloon (J100) Construction Year to 200502 Fitting Position Rear Axle | 2000-12 - | 93 | 126 | 1998 | Saloon |
| DAEWOO NUBIRA Saloon (J100) Construction Year from 199706 Construction Year to 199905 Fitting Position Rear Axle | 1997-05 - | 98 | 133 | 1998 | Saloon |
24.0110-0714.1

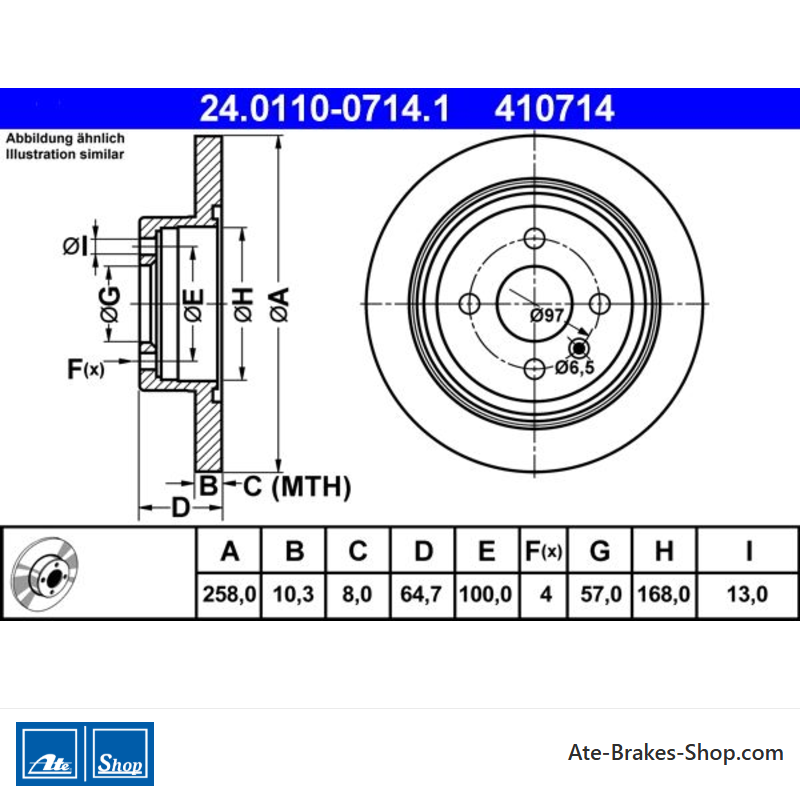

Data sheet
- Article Status
- Orderable
- Car Brand
- Daewoo
- Trade Number
- 410714
- Country Of Origin
- Italy
- Height
- 64,7
- Outer Diameter [mm]
- 258,0
- Brake Disc Thickness [mm]
- 10,3
- Brake Disc Type
- solid
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 100,0
- Centering Diameter [mm]
- 57,0
- Inner Diameter [mm]
- 168,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 8,0
Specific References
- EAN13
- 4006633292887
- MPN
- 2401100714102
ATE 24.0110-0714.1
(240110-07141)
- Outer Diameter [mm]: 258,0
- Inner Diameter [mm]: 168,0
- Brake Disc Thickness [mm]: 10,3
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 410714
