ATE Originele 2-delige remschijf (24011007141) voor Daewoo
€ 94,38
(incl. btw)
€ 78,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0714.1
(240110-07141)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,3
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410714
Logistieke informatie:
- Ean Code: 4006633292887
- Gewicht: 9.81kg

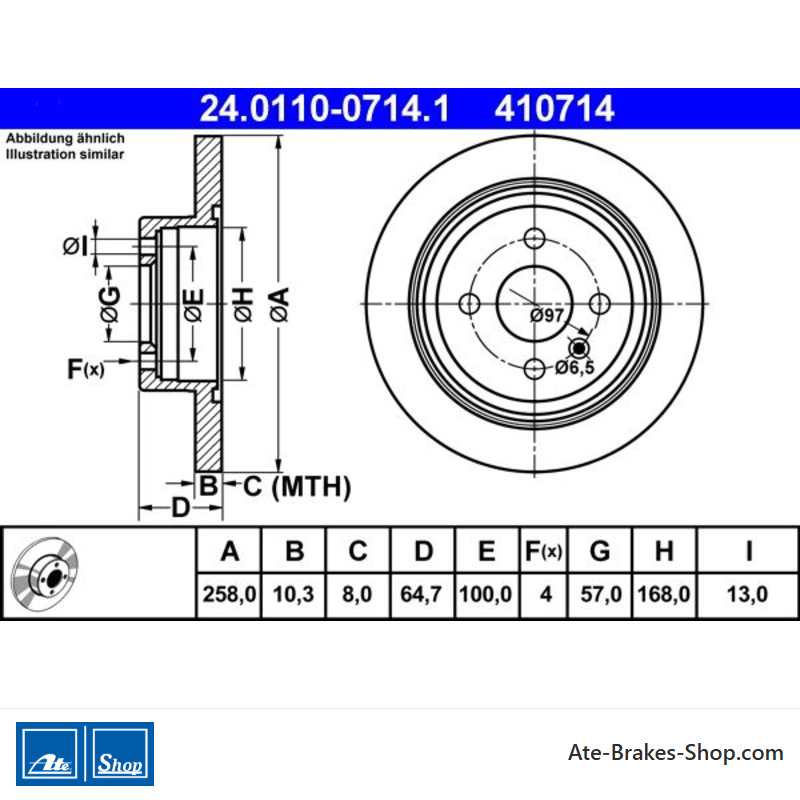

Specification of ATE 24.0110-0714.1 / 240110-07141 / 24011007141:
| OE Number | Reference info |
| CHEVROLET 96312560 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| DAEWOO 96312560 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| DAEWOO NUBIRA (J100) Construction Year to 200212 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2002-08 - 2003-07 | 76 | 103 | 1598 | Hatchback |
| DAEWOO NUBIRA (J100) Construction Year to 200212 Fitting Position Rear Axle Braking/Driving Dynamics for vehicles with ABS | 2002-08 - 2003-07 | 93 | 126 | 1998 | Hatchback |
| DAEWOO NUBIRA (J100) Construction Year from 199706 Construction Year to 199905 Fitting Position Rear Axle | 1997-05 - | 98 | 133 | 1998 | Hatchback |
| DAEWOO NUBIRA Wagon (J100) Construction Year to 200502 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-12 - | 76 | 103 | 1598 | Estate |
| DAEWOO NUBIRA Wagon (J100) Construction Year to 200502 Fitting Position Rear Axle | 2000-12 - | 93 | 126 | 1998 | Estate |
| DAEWOO NUBIRA Wagon (J100) Construction Year from 199706 Construction Year to 199905 Fitting Position Rear Axle | 1997-05 - | 98 | 133 | 1998 | Estate |
| DAEWOO NUBIRA Saloon (J100) Construction Year to 200502 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-07 - | 76 | 103 | 1598 | Saloon |
| DAEWOO NUBIRA Saloon (J100) Construction Year to 200502 Fitting Position Rear Axle | 2000-12 - | 93 | 126 | 1998 | Saloon |
| DAEWOO NUBIRA Saloon (J100) Construction Year from 199706 Construction Year to 199905 Fitting Position Rear Axle | 1997-05 - | 98 | 133 | 1998 | Saloon |
24.0110-0714.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Daewoo
- Handelsnummer
- 410714
- Land van Herkomst
- Italië
- Hoogte
- 64,7
- Buitendiameter [mm]
- 258,0
- Remschijfdikte [mm]
- 10,3
- Type remschijf
- Solide
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 57,0
- Binnendiameter [mm]
- 168,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633292887
- MPN
- 2401100714102
ATE 24.0110-0714.1
(240110-07141)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,3
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410714
