2 pieces of ATE original Brake Disk (24011101601) for Mazda
€72.60
(tax incl.)
€60.00 tax excl.
Part-number:
ATE 24.0111-0160.1
(240111-01601)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 154,0
- Brake Disc Thickness [mm]: 11,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 411160
Logistical information:
- Ean Code: 4006633221405
- Weight: 8.92kg

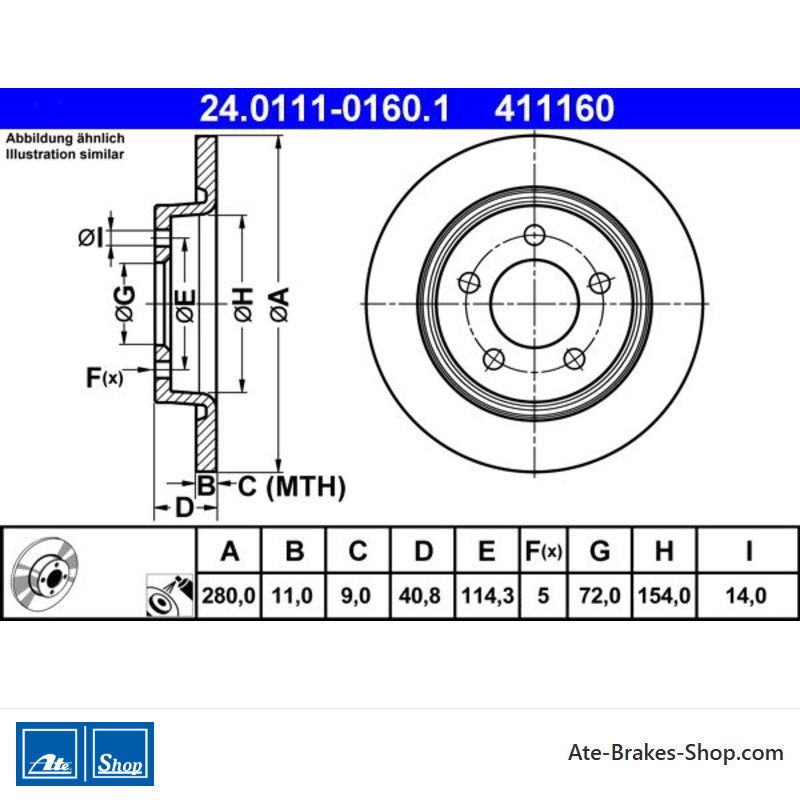

Specification of ATE 24.0111-0160.1 / 240111-01601 / 24011101601:
| OE Number | Reference info |
| MAZDA BP6Y-26-251C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C25Y-26-251B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA BP6Y-26-251D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C25Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C25Y-26-251C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 3 Saloon (BK) Fitting Position Rear Axle | 2003-10 - 2009-12 | 110 | 150 | 1999 | Saloon |
| MAZDA 3 Saloon (BK) Construction Year to 200905 Fitting Position Rear Axle | 2006-12 - 2009-06 | 105 | 143 | 1998 | Saloon |
| MAZDA 3 (BK) Construction Year to 200905 Fitting Position Rear Axle | 2003-10 - 2009-12 | 110 | 150 | 1999 | Hatchback |
| MAZDA 3 (BK) Construction Year to 200905 Fitting Position Rear Axle | 2006-12 - 2009-06 | 191 | 260 | 2261 | Hatchback |
| MAZDA 3 (BK) Construction Year to 200905 Fitting Position Rear Axle | 2006-07 - 2009-06 | 105 | 143 | 1998 | Hatchback |
| MAZDA 3 Saloon (BL) Fitting Position Rear Axle | 2011-09 - 2014-09 | 113 | 154 | 1998 | Saloon |
| MAZDA 3 Saloon (BL) Construction Year from 200906 Fitting Position Rear Axle | 2009-02 - 2013-05 | 111 | 151 | 1999 | Saloon |
| MAZDA 3 Saloon (BL) Construction Year from 200906 Construction Year to 201311 Fitting Position Rear Axle | 2009-01 - 2014-09 | 110 | 150 | 2184 | Saloon |
| MAZDA 3 Saloon (BL) Fitting Position Rear Axle | 2009-06 - 2013-05 | 136 | 185 | 2184 | Saloon |
| MAZDA 3 (BL) Construction Year from 200906 Construction Year to 201311 Fitting Position Rear Axle | 2009-01 - 2014-09 | 110 | 150 | 1999 | Hatchback |
| MAZDA 3 (BL) Construction Year from 200906 Fitting Position Rear Axle | 2008-12 - 2013-05 | 111 | 151 | 1999 | Hatchback |
| MAZDA 3 (BL) Construction Year from 200906 Fitting Position Rear Axle | 2009-01 - 2013-10 | 110 | 150 | 2184 | Hatchback |
| MAZDA 3 (BL) Construction Year from 200906 Fitting Position Rear Axle | 2009-01 - 2013-05 | 136 | 185 | 2184 | Hatchback |
| MAZDA 3 (BL) Construction Year to 201311 Fitting Position Rear Axle | 2008-12 - 2014-09 | 191 | 260 | 2261 | Hatchback |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 15" | 2005-02 - 2010-05 | 85 | 116 | 1798 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 15" | 2005-02 - 2010-05 | 107 | 146 | 1999 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 15" | 2005-02 - 2010-05 | 81 | 110 | 1998 | MPV |
| MAZDA 5 (CR) Construction Year from 200506 Fitting Position Rear Axle Brake Size 15" | 2005-02 - 2010-05 | 105 | 143 | 1998 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 2010-09 - | 85 | 116 | 1798 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 2010-06 - | 106 | 144 | 1999 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 2010-09 - | 110 | 150 | 1999 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 2010-07 - | 85 | 116 | 1560 | MPV |
24.0111-0160.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Mazda
- Trade Number
- 411160
- Country Of Origin
- Italy
- Height
- 40,8
- Outer Diameter [mm]
- 280,0
- Brake Disc Thickness [mm]
- 11,0
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 114,3
- Centering Diameter [mm]
- 72,0
- Inner Diameter [mm]
- 154,0
- Bore Diameter [mm]
- 14,0
- Minimum Thickness [mm]
- 9,0
Specific References
- EAN13
- 4006633221405
- MPN
- 2401110160102
ATE 24.0111-0160.1
(240111-01601)
- Outer Diameter [mm]: 280,0
- Inner Diameter [mm]: 154,0
- Brake Disc Thickness [mm]: 11,0
- Number of Bolt Holes: 5
- 2 pieces of Brake Disc
- Trade Number: 411160
