ATE Originele 2-delige remschijf (24011101601) voor Mazda
€ 72,60
(incl. btw)
€ 60,00 belastingexcl.
Onderdeelnummer:
ATE 24.0111-0160.1
(240111-01601)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 154,0
- Remschijfdikte [mm]: 11,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 411160
Logistieke informatie:
- Ean Code: 4006633221405
- Gewicht: 8.92kg
Specification of ATE 24.0111-0160.1 / 240111-01601 / 24011101601:
| OE Number | Reference info |
| MAZDA BP6Y-26-251C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C25Y-26-251B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA BP6Y-26-251D | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C25Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C25Y-26-251C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 3 Saloon (BK) Fitting Position Rear Axle | 2003-10 - 2009-12 | 110 | 150 | 1999 | Saloon |
| MAZDA 3 Saloon (BK) Construction Year to 200905 Fitting Position Rear Axle | 2006-12 - 2009-06 | 105 | 143 | 1998 | Saloon |
| MAZDA 3 (BK) Construction Year to 200905 Fitting Position Rear Axle | 2003-10 - 2009-12 | 110 | 150 | 1999 | Hatchback |
| MAZDA 3 (BK) Construction Year to 200905 Fitting Position Rear Axle | 2006-12 - 2009-06 | 191 | 260 | 2261 | Hatchback |
| MAZDA 3 (BK) Construction Year to 200905 Fitting Position Rear Axle | 2006-07 - 2009-06 | 105 | 143 | 1998 | Hatchback |
| MAZDA 3 Saloon (BL) Fitting Position Rear Axle | 2011-09 - 2014-09 | 113 | 154 | 1998 | Saloon |
| MAZDA 3 Saloon (BL) Construction Year from 200906 Fitting Position Rear Axle | 2009-02 - 2013-05 | 111 | 151 | 1999 | Saloon |
| MAZDA 3 Saloon (BL) Construction Year from 200906 Construction Year to 201311 Fitting Position Rear Axle | 2009-01 - 2014-09 | 110 | 150 | 2184 | Saloon |
| MAZDA 3 Saloon (BL) Fitting Position Rear Axle | 2009-06 - 2013-05 | 136 | 185 | 2184 | Saloon |
| MAZDA 3 (BL) Construction Year from 200906 Construction Year to 201311 Fitting Position Rear Axle | 2009-01 - 2014-09 | 110 | 150 | 1999 | Hatchback |
| MAZDA 3 (BL) Construction Year from 200906 Fitting Position Rear Axle | 2008-12 - 2013-05 | 111 | 151 | 1999 | Hatchback |
| MAZDA 3 (BL) Construction Year from 200906 Fitting Position Rear Axle | 2009-01 - 2013-10 | 110 | 150 | 2184 | Hatchback |
| MAZDA 3 (BL) Construction Year from 200906 Fitting Position Rear Axle | 2009-01 - 2013-05 | 136 | 185 | 2184 | Hatchback |
| MAZDA 3 (BL) Construction Year to 201311 Fitting Position Rear Axle | 2008-12 - 2014-09 | 191 | 260 | 2261 | Hatchback |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 15" | 2005-02 - 2010-05 | 85 | 116 | 1798 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 15" | 2005-02 - 2010-05 | 107 | 146 | 1999 | MPV |
| MAZDA 5 (CR) Construction Year from 200503 Fitting Position Rear Axle Brake Size 15" | 2005-02 - 2010-05 | 81 | 110 | 1998 | MPV |
| MAZDA 5 (CR) Construction Year from 200506 Fitting Position Rear Axle Brake Size 15" | 2005-02 - 2010-05 | 105 | 143 | 1998 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 2010-09 - | 85 | 116 | 1798 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 2010-06 - | 106 | 144 | 1999 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 2010-09 - | 110 | 150 | 1999 | MPV |
| MAZDA 5 (CW) Fitting Position Rear Axle Rim Size [inch] 15.0 Inch | 2010-07 - | 85 | 116 | 1560 | MPV |

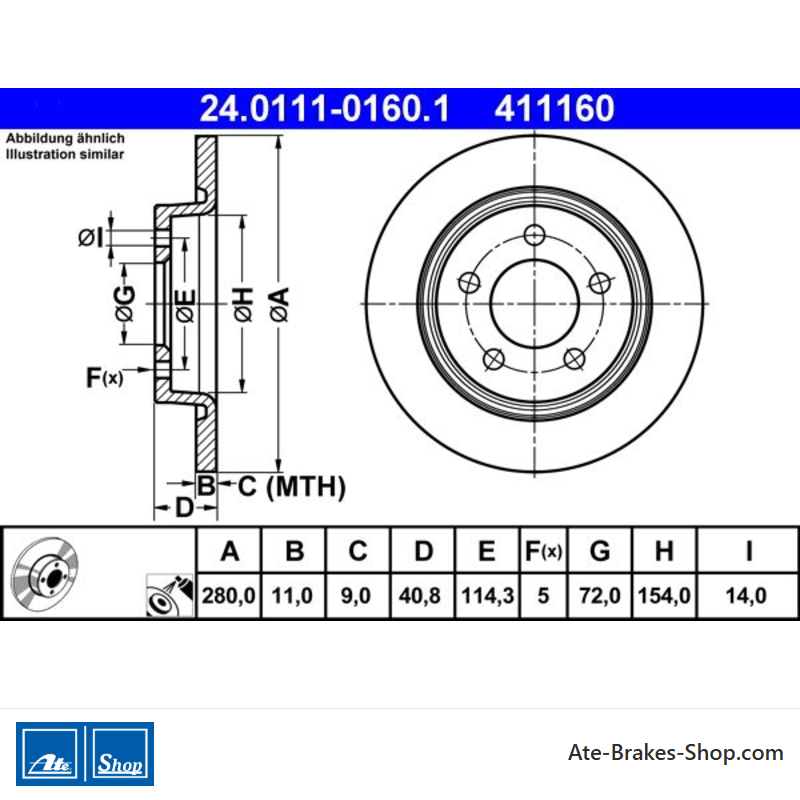

24.0111-0160.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mazda
- Handelsnummer
- 411160
- Land van Herkomst
- Italië
- Hoogte
- 40,8
- Buitendiameter [mm]
- 280,0
- Remschijfdikte [mm]
- 11,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 72,0
- Binnendiameter [mm]
- 154,0
- Bordiameter [mm]
- 14,0
- Minimale dikte [mm]
- 9,0
Specifieke referenties
- ean13
- 4006633221405
- MPN
- 2401110160102
ATE 24.0111-0160.1
(240111-01601)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 154,0
- Remschijfdikte [mm]: 11,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 411160
