2 pieces of ATE original Brake Disk (24011101761) for Abarth
€105.27
(tax incl.)
€87.00 tax excl.
Part-number:
ATE 24.0111-0176.1
(240111-01761)
- Outer Diameter [mm]: 240,5
- Inner Diameter [mm]: 123,0
- Brake Disc Thickness [mm]: 11,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 411176
Logistical information:
- Ean Code: 4006633390262
- Weight: 7.26kg
Specification of ATE 24.0111-0176.1 / 240111-01761 / 24011101761:
| OE Number | Reference info |
| FIAT 5741447 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2008-05 - | 99 | 135 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2009-09 - | 103 | 140 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2016-05 - | 107 | 145 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2011-05 - | 118 | 160 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2016-05 - | 121 | 165 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2010-06 - | 132 | 180 | 1368 | Convertible |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2008-08 - | 99 | 135 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2010-05 - | 103 | 140 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2016-05 - | 107 | 145 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2008-08 - | 118 | 160 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2016-06 - | 120 | 163 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2016-05 - | 121 | 165 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2008-08 - | 132 | 180 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2008-08 - | 140 | 190 | 1368 | Hatchback |

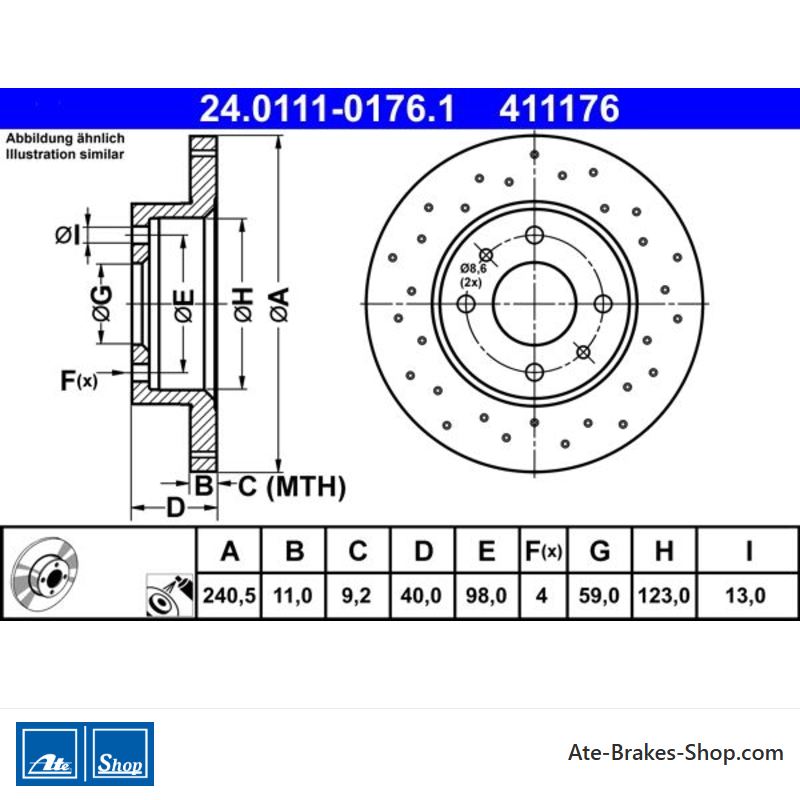

24.0111-0176.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Abarth
- Trade Number
- 411176
- Country Of Origin
- Czechia
- Height
- 40,0
- Outer Diameter [mm]
- 240,5
- Brake Disc Thickness [mm]
- 11,0
- Brake Disc Type
- Perforated
solid - Surface
- Coated
- Number of Bolt Holes
- 4
- Bolt Hole Diameter [mm]
- 98,0
- Centering Diameter [mm]
- 59,0
- Inner Diameter [mm]
- 123,0
- Bore Diameter [mm]
- 13,0
- Minimum Thickness [mm]
- 9,2
Specific References
- EAN13
- 4006633390262
- MPN
- 2401110176102
ATE 24.0111-0176.1
(240111-01761)
- Outer Diameter [mm]: 240,5
- Inner Diameter [mm]: 123,0
- Brake Disc Thickness [mm]: 11,0
- Number of Bolt Holes: 4
- 2 pieces of Brake Disc
- Trade Number: 411176
