ATE Original 2 Teile Bremsscheibe (24011101761) für Abarth
105,27 €
(inkl. MwSt.)
87,00 € Steuerexzl.
Teilenummer:
ATE 24.0111-0176.1
(240111-01761)
- Außendurchmesser [mm]: 240,5
- Innendurchmesser [mm]: 123,0
- Bremsscheibendicke [mm]: 11,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 411176
Logistische Informationen:
- Ean-Code: 4006633390262
- Gewicht: 7.26kg

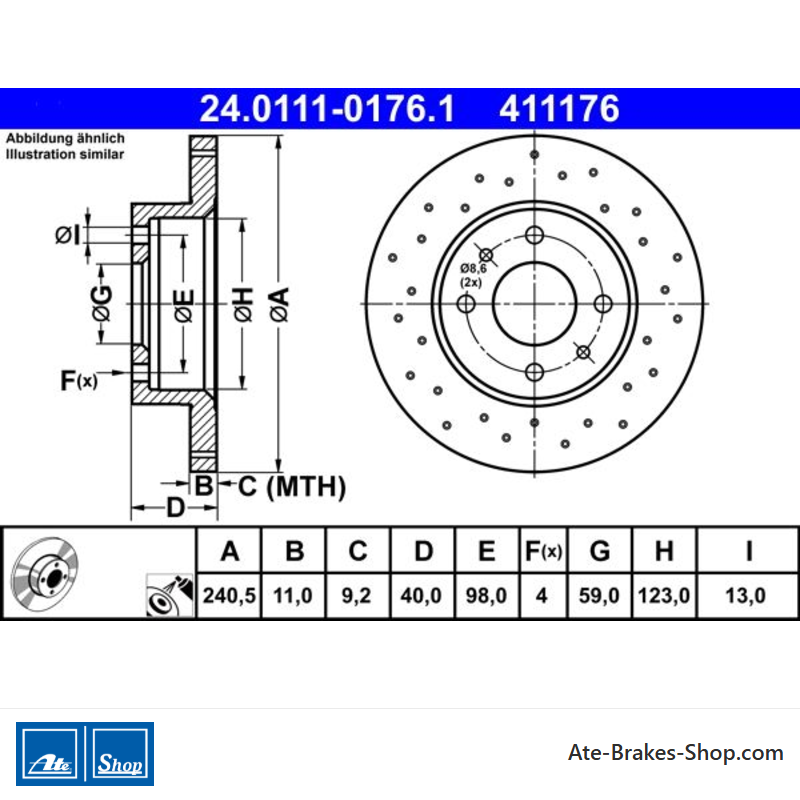

Specification of ATE 24.0111-0176.1 / 240111-01761 / 24011101761:
| OE Number | Reference info |
| FIAT 5741447 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2008-05 - | 99 | 135 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2009-09 - | 103 | 140 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2016-05 - | 107 | 145 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2011-05 - | 118 | 160 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2016-05 - | 121 | 165 | 1368 | Convertible |
| ABARTH 500C / 595C / 695C Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2010-06 - | 132 | 180 | 1368 | Convertible |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2008-08 - | 99 | 135 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2010-05 - | 103 | 140 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2016-05 - | 107 | 145 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2008-08 - | 118 | 160 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2016-06 - | 120 | 163 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2016-05 - | 121 | 165 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2008-08 - | 132 | 180 | 1368 | Hatchback |
| ABARTH 500 / 595 / 695 Vehicle Equipment Line/Trim Level + Kit ESSEESSE Fitting Position Rear Axle | 2008-08 - | 140 | 190 | 1368 | Hatchback |
24.0111-0176.1
Datenblatt
- Artikelstatus
- Bestellbar
- Automarke
- Abarth
- Handelsnummer
- 411176
- Herkunftsland
- Tschechien
- Höhe
- 40,0
- Außendurchmesser [mm]
- 240,5
- Bremsscheibendicke [mm]
- 11,0
- Bremsscheibentyp
- Perforiert
Solide - Oberfläche
- Coated
- Anzahl der Schraublöcher
- 4
- Bolzenlochdurchmesser [mm]
- 98,0
- Zentrierungsdurchmesser [mm]
- 59,0
- Innendurchmesser [mm]
- 123,0
- Bohrdurchmesser [mm]
- 13,0
- Mindestdicke [mm]
- 9,2
Spezifische Referenzen
- ean13
- 4006633390262
- Hersteller-Teilenummer (MPN)
- 2401110176102
ATE 24.0111-0176.1
(240111-01761)
- Außendurchmesser [mm]: 240,5
- Innendurchmesser [mm]: 123,0
- Bremsscheibendicke [mm]: 11,0
- Anzahl der Bolzenlöcher: 4
- 2 Teile Bremsscheiben
- Handelsnummer: 411176
