ATE Original Brake Disk (24011201681) for Land Rover
€163.35
(tax incl.)
€135.00 tax excl.
Part-number:
ATE 24.0112-0168.1
(240112-01681)
- Outer Diameter [mm]: 354,0
- Inner Diameter [mm]: 210,0
- Brake Disc Thickness [mm]: 11,9
- Number of Bolt Holes: 5
- Trade Number: 412168
Logistical information:
- Ean Code: 4006633267465
- Weight: 9.15kg
Specification of ATE 24.0112-0168.1 / 240112-01681 / 24011201681:
| OE Number | Reference info |
| LAND ROVER SDB000211 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) from 3A129290 Vehicle Identification Number (VIN) to 5A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2005-05 - 2012-08 | 291 | 396 | 4197 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) from 3A129290 Vehicle Identification Number (VIN) to 5A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2002-03 - 2005-08 | 210 | 286 | 4398 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) to 5A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2004-08 - 2012-08 | 220 | 299 | 4394 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) to 5A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2005-05 - 2012-08 | 225 | 306 | 4394 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) from 3A129290 Vehicle Identification Number (VIN) to 5A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2002-03 - 2012-08 | 130 | 177 | 2926 | Closed Off-Road Vehicle |
| LAND ROVER RANGE ROVER III (L322) Vehicle Identification Number (VIN) from 3A129290 Vehicle Identification Number (VIN) to 9A999999 Special Purpose Vehicle not for armoured vehicles Fitting Position Rear Axle | 2006-04 - 2012-08 | 200 | 272 | 3628 | Closed Off-Road Vehicle |

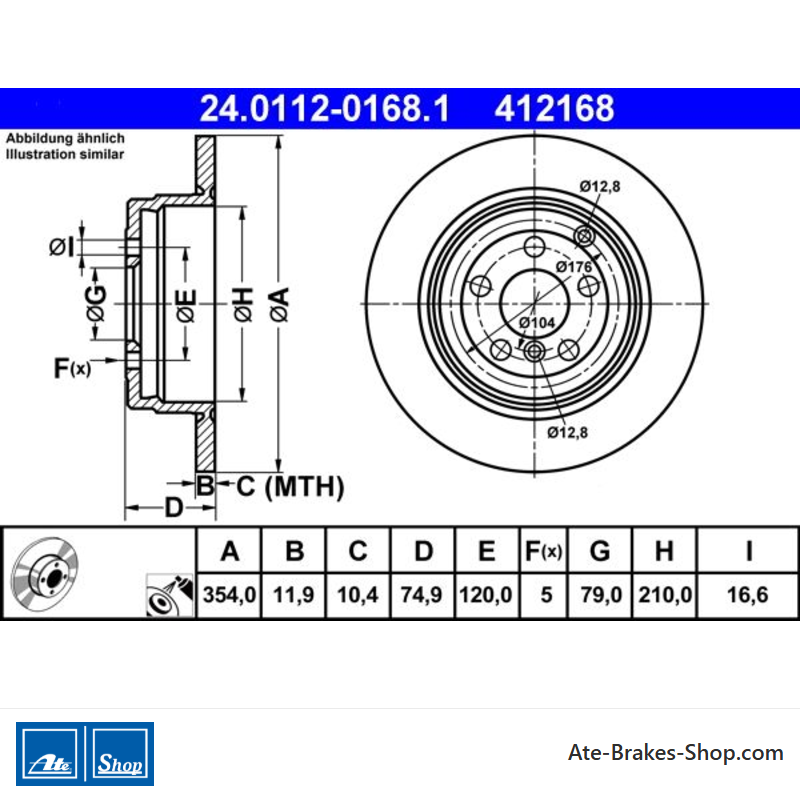

24.0112-0168.1
Data sheet
- Article Status
- Orderable
- Car Brand
- Land Rover
- Trade Number
- 412168
- Country Of Origin
- Italy
- Height
- 74,9
- Outer Diameter [mm]
- 354,0
- Brake Disc Thickness [mm]
- 11,9
- Brake Disc Type
- solid
- Surface
- Coated
- Number of Bolt Holes
- 5
- Bolt Hole Diameter [mm]
- 120,0
- Centering Diameter [mm]
- 79,0
- Inner Diameter [mm]
- 210,0
- Bore Diameter [mm]
- 16,6
- Minimum Thickness [mm]
- 10,4
Specific References
- EAN13
- 4006633267465
- MPN
- 2401120168102
ATE 24.0112-0168.1
(240112-01681)
- Outer Diameter [mm]: 354,0
- Inner Diameter [mm]: 210,0
- Brake Disc Thickness [mm]: 11,9
- Number of Bolt Holes: 5
- Trade Number: 412168
